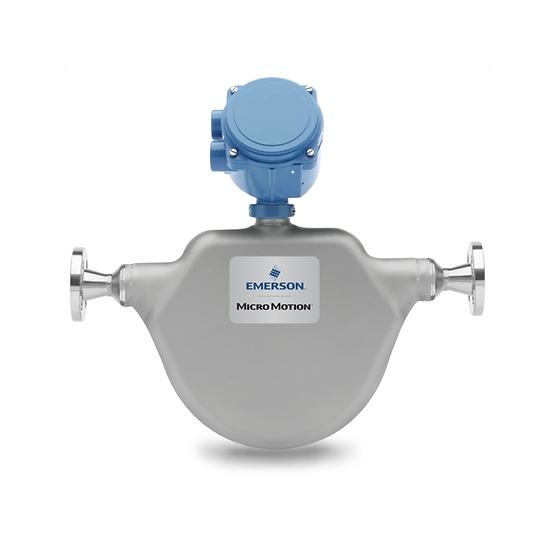

The Micro Motion ELITE CMFS150H is the premier choice for mid-to-high capacity flow measurement in the most aggressive environments. Engineered with Nickel Alloy C22 wetted parts and a robust 3,626 psig (250 barg) pressure rating, this 1.5-inch (DN40) sensor provides unrivaled ±0.10% liquid mass flow accuracy. It is specifically designed for challenging industrial processes, including bulk acid dosing, high-pressure chemical injection skids, and precision gas measurement.
Maximum Material Durability: Nickel Alloy C22 ensures superior resistance to oxidizing acids, hot chlorides, and severe corrosion.
Unmatched Sensitivity & Stability: The ELITE series’ unique design delivers the highest immunity to process vibration and environmental noise.
Extreme Pressure Capability: Safely operates at pressures up to 3,626 psig (250 barg), ideal for upstream oil & gas applications.
Self-Draining "Small Footprint" Design: The CMFS geometry ensures complete fluid drainage and a compact installation for skid-mounted systems.
In-Process Assurance: Integrated Smart Meter Verification (SMV) allows you to verify meter health and tube integrity in real-time without stopping the flow.
Widest Temperature Window: Reliable performance from cryogenic -400°F (-240°C) to high-temperature 662°F (350°C).
Comprehensive Certifications: Fully compliant with CSA, ATEX, IECEx, and NEPSI for hazardous areas, featuring SIL2/SIL3 safety ratings.
| Feature | Specification Details |
| Line Size | 1 1/2 Inch (DN40) |
| Wetted Material | Nickel Alloy C22 |
| Liquid Mass Accuracy | ±0.10% of rate |
| Liquid Density Accuracy | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Gas Mass Accuracy | ±0.25% of rate |
| Max Working Pressure | 3,626 psig (250 barg) |
| Safety Ratings | SIL2, SIL3, Marine, Custody Transfer |
Q: Is the CMFS150H suitable for slurry or high-viscosity applications?
A: Absolutely. The ELITE CMFS series is designed to handle challenging fluids, including slurries and liquids with entrained gas, while maintaining measurement stability.
Q: Can I use this meter for fiscal measurement (Custody Transfer)?
A: Yes. The CMFS150H holds multiple custody transfer approvals and provides the repeatable accuracy required for high-value fluid transfer.
Q: How does the CMFS150H handle process fluctuations?
A: Its unique sensor design is immune to process noise and vibration, and when paired with a Micro Motion 5700 transmitter, it provides fast-response data for rapid process changes.
