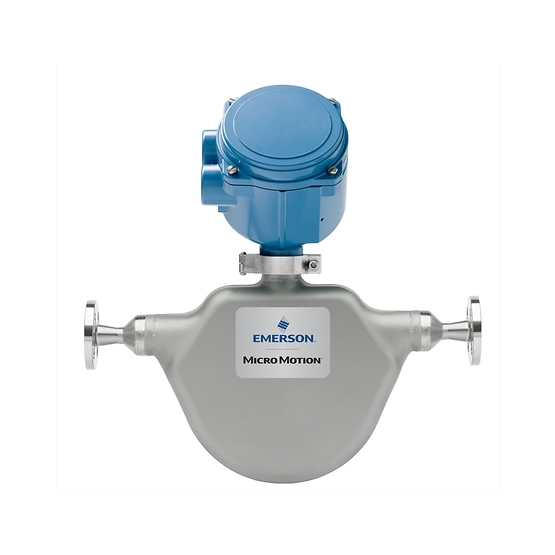

The Micro Motion ELITE CMFS050P is a peak-performance 1/2-inch (DN15) Coriolis meter specifically engineered for high-pressure and corrosive industrial environments. Featuring a unique material combination of Nickel Alloy C22 wetted parts and 316L Stainless Steel fittings, this sensor delivers unmatched ±0.10% accuracy at pressures up to 3,626 psig (250 barg). It is the industry standard for chemical injection skids, high-pressure gas sampling, and aggressive catalyst dosing.
Extreme Pressure Rating: Safely handles challenging applications with working pressures up to 3,626 psig (250 barg).
Superior Corrosion Resistance: Wetted parts constructed from Nickel Alloy C22 provide immunity to stress corrosion cracking and aggressive chemical media.
Peak Measurement Accuracy: Achieve ±0.10% liquid mass flow accuracy and ±0.0005 g/cm³ density accuracy for critical process control.
Smart Meter Verification (SMV): Gain real-time, in-process measurement integrity assurance without interrupting your production.
Compact & Drainable Design: The CMFS "Small Footprint" architecture ensures easy installation in tight skids and complete fluid drainage to prevent contamination.
Global Safety Certifications: Fully certified for ATEX, IECEx, CSA, and NEPSI, with SIL2/SIL3 safety ratings for hazardous areas.
| Specification | Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Materials | Nickel Alloy C22 (Tube) / 316L SST (Fittings) |
| Max Working Pressure | 3,626 psig (250 barg) |
| Liquid Mass Accuracy | ±0.10% of rate |
| Gas Mass Accuracy | ±0.25% of rate |
| Density Accuracy | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Range | -400°F to 662°F (-240°C to 350°C) |
| Case Pressure Rating | Available with rupture disk or purge fittings |
Q: What makes the CMFS050P ideal for chemical injection?
A: Its 250 barg pressure rating and Nickel Alloy C22 construction allow it to handle highly corrosive chemicals (like inhibitors or methanol) at the high pressures typically found in offshore and refinery injection systems.
Q: Can this meter be used for high-pressure gas measurement?
A: Yes. The CMFS050P provides exceptional gas flow accuracy (±0.25%), making it perfect for hydrogen dosing, gas sampling, and high-pressure nitrogen systems.
Q: How does the "P" model differ from the "H" model?
A: The "P" model (CMFS050P) features a specific material mix—Nickel Alloy C22 for the measuring tubes and 316L Stainless Steel for the process connections/fittings—providing a balanced solution for high-pressure chemical resistance.
