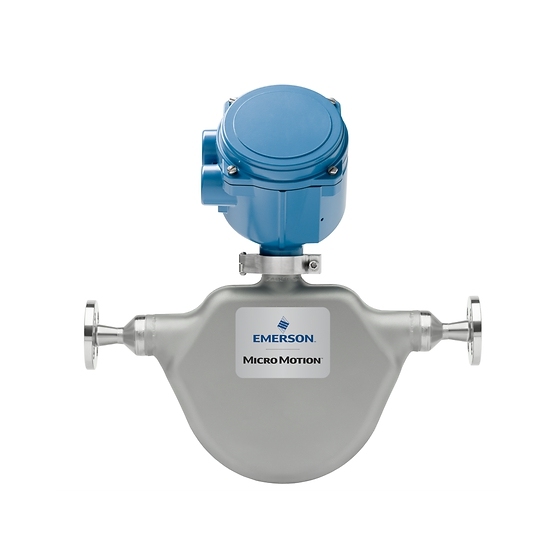

The Micro Motion ELITE CMFS050M is a 1/2-inch (DN15) Coriolis meter that combines ELITE peak performance with a space-saving, drainable design. Built from high-grade 316L Stainless Steel, this sensor is engineered to deliver unmatched accuracy and repeatability for mass flow and density in the most challenging applications. Its compact architecture makes it the gold standard for high-precision chemical dosing, pharmaceutical batching, and pilot plant operations.
Peak Performance in Compact Form: Delivers the industry-leading ELITE accuracy of ±0.10% (liquid) and ±0.25% (gas) in a small footprint.
Drainable Design: The CMFS geometry ensures the sensor is fully drainable, preventing fluid entrapment and making it ideal for frequent product change-overs.
Smart Meter Verification (SMV): Verify the health and calibration of your meter in-process and in real-time, significantly reducing maintenance downtime.
Exceptional Stability: Uniquely designed for high sensitivity and stability, ensuring reliable measurement even in high-vibration or variable pressure environments.
Wide Process Range: Capable of handling temperatures from cryogenic -400°F (-240°C) to high-heat 662°F (350°C).
Global Safety Certifications: Holds broad hazardous area approvals including ATEX, IECEx, CSA, and NEPSI, with SIL 2 and SIL 3 safety ratings.
| Feature | Specification Details |
| Line Size | 1/2 Inch (DN15) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Flow Accuracy | ±0.10% of rate |
| Liquid Density Accuracy | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Gas Mass Flow Accuracy | ±0.25% of rate |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,500 psig (103 barg) |
| Hazardous Approvals | UL, CSA, IECEx, NEPSI, ATEX, NAMUR |
Q1: Is the CMFS050M suitable for hygienic applications?
A1: Yes. The CMFS050M is part of the ELITE family that can be configured for hygienic service, and its drainable design is a key requirement for sanitary process standards.
Q2: Can this meter measure multi-phase flow?
A2: The CMFS050M excels in challenging applications, including those with entrained gas or slurries, thanks to its superior measurement stability and advanced digital signal processing.
Q3: How does Smart Meter Verification help with regulatory compliance?
A3: SMV provides a traceable report of the sensor's health without removing it from the pipeline, satisfying many audit requirements for periodic calibration checks while keeping the process running.
Q4: What material options are available besides 316L SST?
A4: For highly corrosive service, the CMFS050 is also available in Nickel Alloy C-22 and Super-Duplex materials to ensure long-term reliability in aggressive chemical environments.
