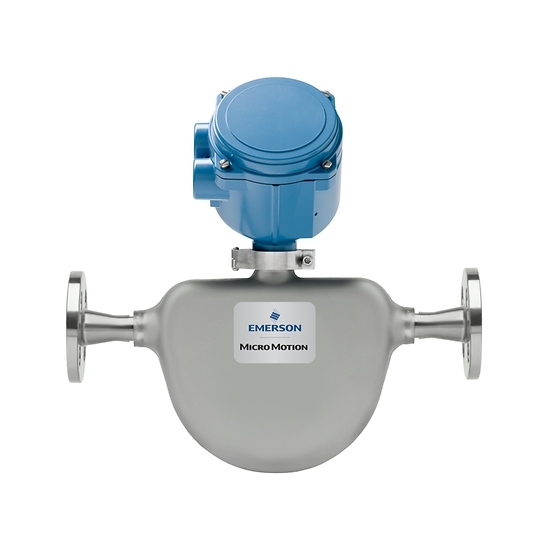

The Micro Motion ELITE CMFS040M is a high-performance 3/8-inch (DN10) Coriolis flow and density meter, engineered for excellence in small-bore piping applications. Crafted from premium 316L Stainless Steel, the CMFS040M provides the ultimate measurement stability and sensitivity. Whether you are managing chemical dosing, fuel additive injection, or high-value batching, this sensor delivers a reliable ±0.10% liquid mass flow accuracy in a compact, self-draining design.
Unmatched Sensitivity: Engineered to provide stable and repeatable measurement even in low-flow applications where other sensors struggle.
Smart Meter Verification (SMV): Gain real-time, in-process assurance of sensor health and calibration integrity without interrupting your flow or production.
Compact & Drainable Design: The unique CMFS geometry ensures the sensor is fully drainable, reducing product waste and facilitating easy cleaning for batch processes.
Superior Density Measurement: Delivers liquid density accuracy of ±0.0005 g/cm³, ideal for concentration control and product quality blending.
Ultimate Immunity: Designed to resist fluid, process, and environmental noise, ensuring consistent performance in challenging industrial environments.
Global Safety Certifications: Fully certified for hazardous areas including CSA, ATEX, IECEx, and NEPSI, with SIL2/SIL3 safety ratings.
Broad Application Range: Operates effectively from cryogenic -400°F (-240°C) up to 662°F (350°C).
| Feature | Specification Details |
| Line Size | 3/8 Inch (DN10) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Accuracy | ±0.10% of rate |
| Liquid Density Accuracy | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Gas Mass Accuracy | ±0.25% of rate |
| Max Working Pressure | 1,500 psig (103 barg) |
| Hazardous Approvals | CSA, ATEX, IECEx, NEPSI, SIL 2/3 |
Q: Why choose the CMFS040M for chemical injection skids?
A: Its compact "Small Footprint" (CMFS) design saves valuable space on skids, while its high sensitivity ensures that even the smallest amounts of expensive chemicals are metered with extreme precision.
Q: Can this meter handle entrained gas?
A: Yes. The ELITE CMFS series is built with advanced MVD (Multi-Variable Digital) technology, which provides superior performance in applications with entrained air or two-phase flow.
Q: Is straight pipe run required for installation?
A: No. Like all Micro Motion Coriolis meters, the CMFS040M is independent of flow profile, meaning no straight pipe runs or flow conditioners are needed, simplifying installation.
