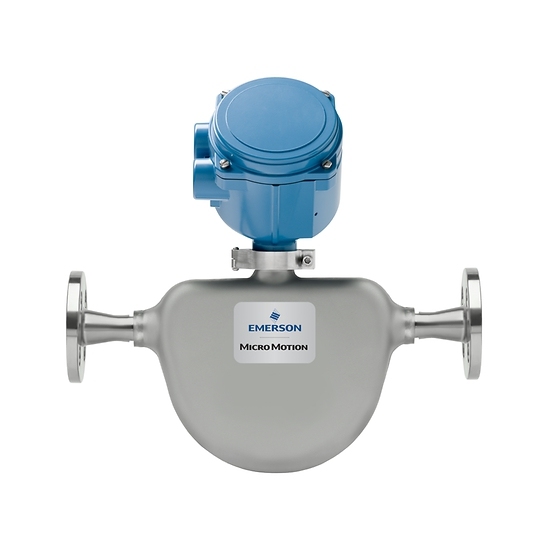

The Micro Motion ELITE CMFS015P is a high-performance 1/6-inch (DN3) Coriolis meter engineered for extreme high-pressure and corrosive service. Featuring Nickel Alloy C22 wetted tubes and 316L Stainless Steel fittings, this sensor provides the highest measurement sensitivity for micro-flow rates. It is the premier choice for chemical injection skids and specialized laboratory applications where pressures reach up to 6,000 psig (414 barg).
Extreme Pressure Durability: Rated for operating pressures up to 6,000 psig (414 barg), providing unmatched safety in high-pressure gas and liquid systems.
Advanced Material Hybrid: Combines the chemical resistance of Nickel Alloy C22 tubes with the reliability of 316L Stainless Steel process fittings.
Elite Precision Accuracy: Achieves liquid mass flow accuracy of ±0.10% (standard) and optional precision up to ±0.05%.
Exceptional Gas Performance: Delivers superior gas mass flow accuracy of ±0.25%, ideal for high-pressure gas sampling.
Smart Meter Verification (SMV): Verify meter health and structural integrity in-process without removing the sensor, even under full pressure.
Compact & Drainable: The unique CMFS design is fully drainable, ensuring no residual fluid remains after batching or cleaning cycles.
| Feature | Specification Details |
| Line Size | 1/6 Inch (DN3) |
| Wetted Materials | Nickel Alloy C22 (Tubes) / 316L SST (Fittings) |
| Liquid Mass Flow Accuracy | ±0.10% (Std) / ±0.05% (Opt) |
| Gas Mass Flow Accuracy | ±0.25% of rate |
| Max Working Pressure | 6,000 psig (414 barg) |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (Std) / ±0.0005 g/cm³ (Opt) |
| Temperature Range | -400°F to 662°F (-240°C to 350°C) |
| Hazardous Approvals | ATEX, IECEx, CSA, NEPSI |
Q1: What are the typical applications for the CMFS015P?
A1: The CMFS015P is most commonly used in offshore chemical injection skids, high-pressure hydrogen research, and precise dosing of aggressive inhibitors at very low flow rates.
Q2: Does the CMFS015P support safety-critical systems?
A2: Yes. The CMFS015P is widely used in systems requiring SIL 2 or SIL 3 certification, ensuring it meets international safety standards for critical process control.
Q3: Can it handle cryogenic fluids at high pressure?
A3: Absolutely. With a temperature rating down to -400°F (-240°C), it is perfectly suited for high-pressure cryogenic liquid measurement.
Q4: Is there a safety housing option?
A4: Yes. The meter is available with a rupture disk or purge fitting case, providing an extra layer of protection and secondary containment in high-pressure applications.
