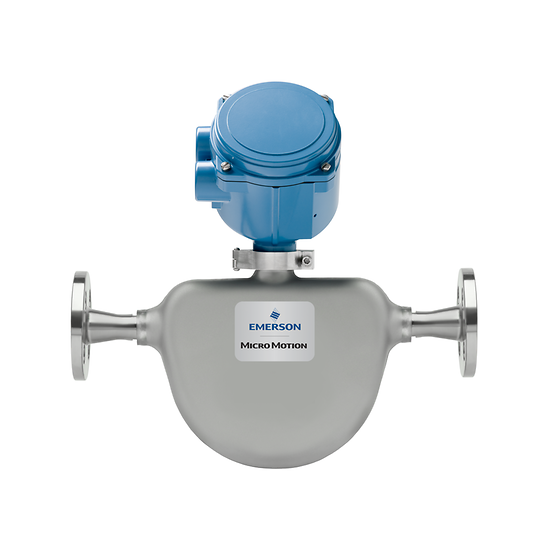

The Micro Motion ELITE CMFS015M (DN3) is a masterpiece of precision engineering, designed for applications where space is premium and accuracy is critical. Featuring a 316L Stainless Steel construction, this 1/6-inch sensor is part of the "S-Series" ELITE family, known for its fully drainable tube geometry. This design minimizes fluid entrapment, making it ideal for processes involving expensive chemicals or those requiring frequent flushing.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/6 Inch (DN3) |
| Wetted Material | 316L Stainless Steel |
| Design Feature | Fully Drainable Geometry |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Gas Mass Flow Accuracy | ±0.25% of rate (Superior Gas Performance) |
| Liquid Density Accuracy | Standard: ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,812 psig (125 barg) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI, UL |
Drainable Tube Design: The "S-Series" curved tube geometry is optimized for complete fluid drainage. This reduces product waste and cross-contamination risk, which is vital in pharmaceutical and specialty chemical batching.
Superior Gas Accuracy: At ±0.25% for gas flow, the CMFS015M outperforms many larger sensors, making it a top-tier choice for high-pressure gas dosing and hydrogen applications.
Smart Meter Verification (SMV): Verify your meter's health in real-time. SMV checks the internal structural integrity and electronics in under 90 seconds, ensuring your micro-flow measurements remain valid without downtime.
Unparalleled Sensitivity: Its unique design offers the industry's highest immunity to pipeline vibration and environmental noise, providing a rock-solid zero point even at the lowest flow ranges.
Compact Footprint: The CMFS design is significantly more compact than standard ELITE sensors, allowing for easy integration into tight dosing skids or laboratory benches.
Next-Gen Integration: Pairs seamlessly with the Emerson 5700 transmitter for advanced data logging and diagnostics.
Digital Support: Full compatibility with HART, Modbus, PROFINET, and EtherNet/IP.
Rugged Reliability: IP66/67 rated and built to handle temperatures from -240 °C to 350 °C.
The Challenge: A refinery needed to inject a high-cost liquid catalyst into a process line at a very low and steady rate. The previous volumetric pump was inconsistent, and air bubbles in the line were causing significant measurement errors.
The Hanyu Solution: The refinery installed the Micro Motion ELITE CMFS015M via
The Result: The CMFS015M’s high sensitivity allowed it to detect the micro-flow accurately, and its mass-based measurement remained unaffected by the presence of small air bubbles.
The Impact: Catalyst over-injection was reduced by 14%, saving the plant thousands of dollars per month. The drainable design allowed for easy cleaning during catalyst changeovers, preventing cross-reaction.
Q: What is the main difference between CMFS and standard CMF sensors? A: CMFS (S-Series) sensors are designed to be more compact and offer better drainability, while maintaining the high-end ELITE performance levels.
Q: Does the CMFS015M require straight pipe runs? A: No. All Micro Motion Coriolis meters are independent of flow profiles. You can install this 1/6-inch sensor directly after a bend or valve with no loss in precision.
Q: Is 316L the only material available? A: While 316L is standard, Hanyu Zhilian also offers the CMFS015 in Nickel Alloy C22 for highly corrosive applications or Super-Duplex for extreme pressure requirements.
Q4: How does Hanyu Zhilian ensure I get the right configuration? A: Our technical team provides a full sizing report to ensure the CMFS015M matches your pressure drop and accuracy targets. We guarantee 100% original factory quality. All project data is confidential per our Privacy Policy.
