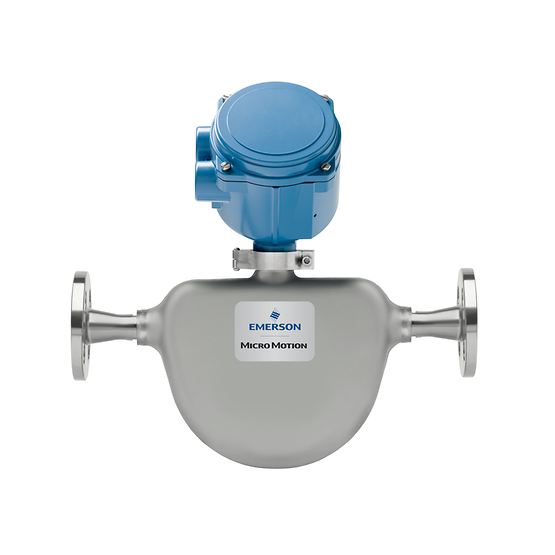

Authentic Emerson Micro Motion ELITE CMFS015M (1/6" / DN3) Coriolis Mass Flow Meter with factory calibration. Rapid global dispatch and 2-hour technical quotation response.
Compact Drainable Geometry: S-Series curved tube design allows gravity-driven self-draining to eliminate fluid entrapment and cross-contamination.
Micro-Flow Precision: Delivers $\pm 0.05\%$ liquid mass accuracy and $\pm 0.25\%$ gas accuracy for high-value chemical dosing and lab skids.
Smart Meter Verification (SMV): Run inline sensor health and calibration checks in under 90 seconds without interrupting active production.
Extreme Pressure & Temp: Built for demanding high-pressure gas and dosing applications up to 1,812 psig (125 barg) and up to 350°C.
Fast Global Shipping: Factory-calibrated stock units supplied with 3.1 material certificates and global hazardous area approvals (ATEX/IECEx/SIL).
The Micro Motion ELITE CMFS015M (DN3) is engineered for chemical process engineers and skid builders who need zero-drift metering in micro-flow dosing, catalyst injection, and pilot plant systems. It eliminates the revenue-draining issues common with traditional non-drainable micro-flow meters: fluid entrapment, expensive solvent flushing cycles, and batch-to-batch contamination.
Need help selecting the right meter for your piping setup? Read our comprehensive
or check the Coriolis Flowmeter Guide for engineering trade-offs. Flow Meter Selection Matrix
In high-cost additive or catalyst injection lines, standard U-tube meters leave behind fluid in sensor low points. Cleaning them requires gallons of flushing solvent and hours of line purging. The CMFS015M features a single, continuous, self-draining S-Series curved tube design. Installed vertically, gravity completely evacuates residual process fluid between batches—saving thousands in raw material waste and preventing batch degradation during product transitions.
Standard differential pressure (DP) and thermal meters drift whenever line pressure or gas temperature fluctuates, requiring complex external compensation loops. The CMFS015M directly measures mass flow without extra pressure transmitters or temperature calculations. Operating at line pressures up to 1,812 psig (125 barg), it delivers stable $\pm 0.25\%$ gas mass flow accuracy for specialty gas blending and toxic gas injection. For higher flow rates or wider line sizes beyond DN3, explore our full range of
Removing a meter from a running line for annual zero-check calibration halts production and risks joint leaks. Equipped with Smart Meter Verification (SMV), the CMFS015M lets maintenance technicians run a full structural health check of the drive circuit and sensor tubes in under 90 seconds—right from the control room or field transmitter—without stopping the pump or interrupting active flow.
| Specification Parameter | CMFS015M Technical Value | Field Application Impact |
| Primary Model Code | Micro Motion ELITE CMFS015M | DN3 (1/6 Inch) Drainable Micro-Flow Sensor |
| Max Nominal Flow Rate | 310 kg/h (11.4 lb/min) | Handles ultra-low dosing up to full skid capacity |
| Liquid Mass Accuracy | $\pm 0.10\%$ (Standard) / $\pm 0.05\%$ (Optional) | Stops raw material over-dosing in critical blends |
| Gas Mass Accuracy | $\pm 0.25\%$ of rate | Stable metering for high-pressure gas injection |
| Density Measurement | $\pm 0.002\text{ g/cm}^3$ (Std) / $\pm 0.0005\text{ g/cm}^3$ (Opt) | Real-time liquid concentration & purity monitoring |
| Pressure Rating | Up to 1,812 psig (125 barg) | Rated for high-pressure chemical dosing skids |
| Process Temperature | -240°C to +350°C (-400°F to +662°F) | Handles cryogenic fluids to hot thermal oils |
| Straight Pipe Requirement | 0 DN (Zero straight runs required) | Mounts directly after elbows, reducers, or valves |
| Wetted Materials | 316L Stainless Steel / Nickel Alloy C22 | Compatible with aggressive solvents and acids |
| Hazardous Area Approvals | SIL2/3, ATEX, IECEx, CSA, NEPSI | Global compliance for Class 1 Div 1 / Zone 1 |
| Evaluation Criteria | Micro Motion CMFS015M (DN3) | Legacy CMF010 (DN2) | Generic DP / Thermal Meters |
| Tube Geometry | S-Series Drainable Design | Standard U-Tube Bend | Straight Tube / Variable Area |
| Full Drainability | 100% Gravity Drain (Vertical) | Fluid remains in tube bend | High fluid retention / Dead legs |
| Liquid Mass Accuracy | $\pm 0.05\%$ / $\pm 0.10\%$ | $\pm 0.10\%$ | $\pm 1.0\%$ to $\pm 2.0\%$ |
| Multivariable Output | Mass, Volume, Density, Temp | Mass, Volume, Density, Temp | Mass only (Inferential) |
| Straight Run Needed | 0 DN | 0 DN | 10–20 DN upstream |
| In-Line Health Diagnostics | Smart Meter Verification (<90s) | Smart Meter Verification (<90s) | Requires bench removal |
Q: Why choose the CMFS015M over the legacy CMF010 model for chemical skids?
A: The CMFS015M uses a compact, self-draining S-Series geometry. Unlike the legacy CMF010 which traps fluid at the bottom of its U-tube bend, the CMFS015M empties completely when mounted vertically. This prevents fluid stagnation, reduces flushing solvent usage, and speeds up product changeovers.
Q: Is 316L Stainless Steel safe for my acid dosing process?
A: 316L Stainless Steel works well for general chemical additives, hydrocarbons, and solvents. If your process handles highly aggressive media like hydrochloric acid, wet chlorine, or ferric chloride, we supply the CMFS015M with Nickel Alloy C22 wetted parts to resist pitting and stress corrosion cracking.
Q: Does the CMFS015M require upstream or downstream straight pipe runs?
A: No. Micro Motion Coriolis meters are completely immune to flow profile disturbances. You can bolt the CMFS015M directly to an elbow, pump outlet, or control valve in tight skid environments without sacrificing accuracy. Looking for other transmitter options or spare parts from the same brand? Browse our full inventory of
