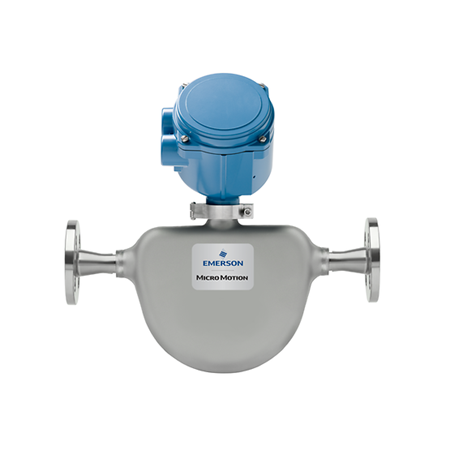

The Micro Motion ELITE CMFS010P is a peak-performance micro-flow Coriolis meter designed for the most challenging high-pressure environments. Featuring a 1/10-inch (DN2) line size and Nickel Alloy C22 wetted parts, it offers the ultimate combination of chemical resistance and structural integrity. Its drainable design and exceptional stability make it the industry standard for precision dosing, chemical injection, and high-pressure research applications.
Extreme High-Pressure Performance: Capable of handling process pressures up to 6,000 psig (414 barg).
Unmatched Sensitivity: Engineered for ultra-low flow rates where standard meters fail to provide repeatable data.
Superior Chemical Resistance: C22 Nickel Alloy wetted components ensure longevity when measuring aggressive or corrosive fluids.
Smart Meter Verification (SMV): Real-time, in-process diagnostics allow you to verify meter health without shutting down your high-pressure line.
Widest Operating Range: Performs flawlessly in extreme temperatures from -400°F to 662°F (-240°C to 350°C).
Global Certifications: Fully compliant with ATEX, IECEx, CSA, NEPSI, and SIL2/SIL3 safety standards.
| Feature | Specification Details |
| Line Size | 1/10 Inch (DN2) |
| Wetted Material | Nickel Alloy C22 with 316L SST Fittings |
| Liquid Mass Flow Accuracy | ±0.10% (Std) / ±0.05% (Opt) |
| Gas Mass Flow Accuracy | ±0.25% of rate |
| Max Working Pressure | 6,000 psig (414 barg) |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Repeatability | Up to ±0.025% of rate |
Q1: Is the CMFS010P suitable for chemical injection skids?
A: Absolutely. Its compact size, high-pressure rating (6000 psig), and C22 alloy construction make it perfect for precision chemical injection in oil and gas or specialty chemical plants.
Q2: What makes ELITE "P-Series" meters different?
A: The "P" designation indicates a high-pressure rated sensor. The CMFS010P is specifically reinforced to maintain ELITE-level accuracy even at the extreme 6,000 psig limit.
Q3: Can it handle entrained gas in liquid streams?
A: Yes, the ELITE design provides the highest immunity to fluid and process effects, including challenging two-phase flow and slurry applications.
