1.Product Overview

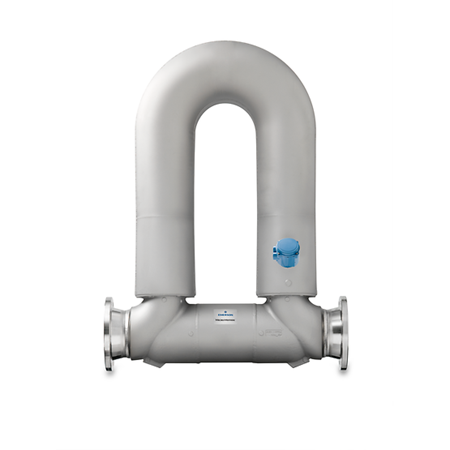

The Micro Motion ELITE CMFHC3M is the heavy-duty powerhouse of the ELITE family. This High Capacity (HC) Coriolis meter is engineered for 8-inch to 10-inch (DN200-DN250) line sizes, delivering the most accurate and repeatable flow measurements for large-scale industrial processes. Constructed from 316L Stainless Steel, it is the preferred choice for bulk loading, terminal operations, and challenging pipeline measurements involving liquids, gases, and slurries.
Liquid Mass Flow Accuracy: ±0.10% of rate
Gas Mass Flow Accuracy: ±0.25% of rate
Line Size: 8-10 Inch (DN200 - DN250)
Density Accuracy: ±0.0005 g/cm³ (±0.5 kg/m³)
Max Working Pressure: 1,480 psig (102 barg) - High-pressure options up to 6,000 psig available.
Temperature Range: -400°F to 662°F (-240°C to 350°C)
Certifications: UL, CSA, IECEx, NEPSI, ATEX, SIL2/SIL3, Marine.
Unrivaled Large-Scale Precision: Specifically designed for high-flow applications where measurement stability is critical to profitability.
Smart Meter Verification (SMV): Gain real-time confidence in your meter's health and calibration integrity without shutting down large pipelines.
Exceptional Immunity: Uniquely designed to resist fluid, process, and environmental effects, providing the highest sensitivity in the industry.
Hygienic & Cryogenic Ready: Flexible application coverage, from extreme cryogenic fluids to high-temperature process streams.
Robust Material Options: Available in 316L Stainless Steel and Super-Duplex for superior durability and corrosion resistance.
Q: Why choose the CMFHC3M for custody transfer? A: With a ±0.10% liquid accuracy and high repeatability, the CMFHC3M ensures that every drop of high-value fluid is accounted for in bulk terminal and pipeline transfer, minimizing "unaccounted for" losses.
Q: Is the CMFHC3M suitable for offshore or marine environments? A: Yes. It holds a wide range of marine approvals and hazardous area certifications (ATEX/IECEx), and its robust stainless steel construction is ideal for salt-spray and offshore conditions.
Q: Can this meter handle slurries or fluids with entrained gas? A: The ELITE CMFHC3M is designed for unmatched stability, allowing it to perform reliably in challenging applications involving complex fluids like slurries or high-viscosity liquids.
