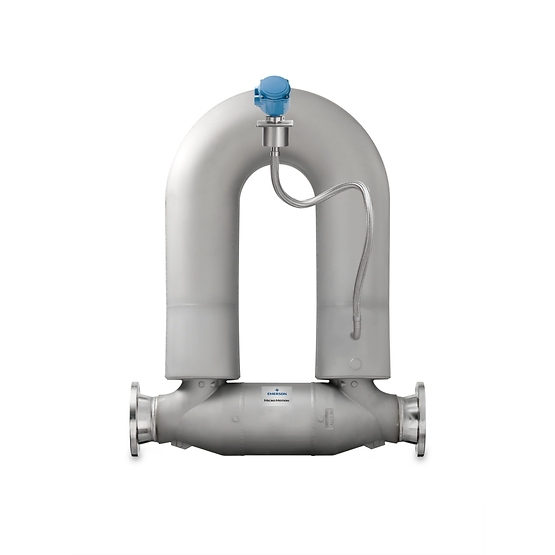

The Micro Motion ELITE CMFHC2A is a high-capacity 6-to-8 inch (DN150-DN200) Coriolis meter engineered for peak performance in large-scale industrial operations. Constructed from 316L Stainless Steel, this "High Capacity" sensor is specifically optimized for high-temperature process streams. It delivers world-class mass flow and density measurement for bulk liquids, gases, and slurries, making it the premier choice for custody transfer and critical process control in refineries and marine terminals.
High-Capacity Bulk Measurement: Designed specifically for large-bore piping to handle massive flow rates without compromising ELITE-level precision.
Peak Thermal Performance: Specialized high-temperature architecture supports a wide operating range from -400°F to 662°F (-240°C to 350°C).
Unrivaled Accuracy: Delivers industry-leading liquid mass flow and volume flow accuracy of ±0.10%, essential for high-value fiscal transfers.
Smart Meter Verification (SMV): Verify large-scale meter health and calibration integrity in-situ, eliminating the massive cost and downtime of removing a 6-8 inch meter for service.
Environmental Immunity: Uniquely designed for maximum stability, providing the highest immunity to pipeline vibration, pressure fluctuations, and environmental noise.
Global Safety & Fiscal Approvals: Fully certified for ATEX, IECEx, CSA, and NEPSI, with SIL 2/3 ratings and extensive custody transfer certifications (NTEP, MID, OIML).
| Feature | Specification Details |
| Line Size | 6-8 Inch (DN150-DN200) |
| Wetted Material | 316L Stainless Steel |
| Liquid Mass Flow Accuracy | ±0.10% of rate |
| Liquid Density Accuracy | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max Working Pressure | 1,480 psig (102 barg) |
| Process Temp. Range | -400°F to 662°F (-240°C to 350°C) |
| Hazardous Certifications | UL, CSA, IECEx, ATEX, NEPSI, SIL 2/3 |
Q1: Why is the CMFHC2A preferred for Marine Terminal loading?
A1: In large-scale loading, even a 0.1% error can result in massive financial discrepancies. The CMFHC2A provides the highest repeatable accuracy for high-volume transfers, ensuring fiscal confidence and reducing "lost and unaccounted for" product.
Q2: Can the CMFHC2A handle high-viscosity fluids like bunker fuel?
A2: Yes. The ELITE High Capacity series is designed to maintain accuracy and sensitivity even with high-viscosity fluids and slurries that challenge traditional measurement technologies.
Q3: Is the CMFHC2A available in other materials for corrosive service?
A3: Yes. While 316L Stainless Steel is standard, the High Capacity series can be configured with Super-Duplex materials for applications requiring enhanced corrosion resistance and strength.
Q4: How does the "High Temperature" model differ from the standard version?
A4: High-temperature models feature specialized sensor components and electronics designed to handle extreme thermal expansion and maintain calibration stability in processes up to 662°F.
