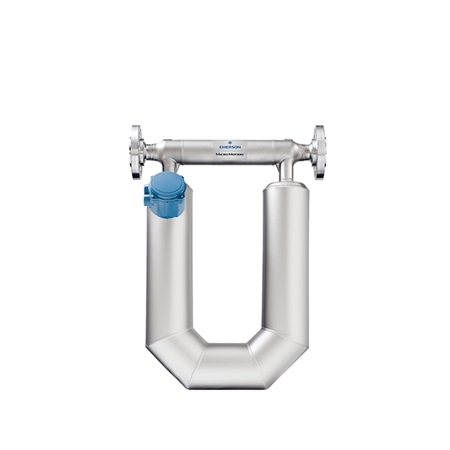

The Micro Motion ELITE CMF200M is a premier 2-inch (DN50) Coriolis meter designed for peak performance in the most demanding industrial environments. Constructed from high-grade 316L Stainless Steel, this sensor is the global benchmark for accuracy and repeatability. It is engineered to provide unmatched sensitivity for mass flow, volume flow, and density measurement, making it the preferred choice for bulk chemical processing and oil and gas custody transfer.
Elite Precision: Delivers industry-leading liquid mass flow accuracy of ±0.10% (standard) and up to ±0.05% (optional high-precision calibration).
Unmatched Stability: Superior sensor design offers the highest immunity to pipeline vibration, pressure fluctuations, and environmental effects.
Smart Meter Verification (SMV): Includes on-board diagnostics to verify meter health and calibration integrity in real-time without interrupting process flow.
Extremely Versatile: Capable of operating in extreme conditions ranging from cryogenic -400°F (-240°C) to high temperatures of 662°F (350°C).
Robust Secondary Containment: Rated for maximum working pressures up to 1,580 psig (109 barg), with optional high-pressure ratings available.
Global Certifications: Fully compliant with ATEX, IECEx, CSA, NEPSI, and SIL2/SIL3 safety standards for hazardous area deployments.
| Feature | Specification Details |
| Line Size | 2 Inch (DN50) |
| Liquid Mass Flow Accuracy | ±0.10% (Standard) / ±0.05% (Optional) |
| Liquid Density Accuracy | ±0.0005 g/cm³ (Standard) / ±0.0002 g/cm³ (Optional) |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Repeatability (Liquid) | ±0.05% (Standard) / ±0.025% (Optional) |
| Max Working Pressure | 1,580 psig (109 barg) |
| Temperature Range | -400°F to 662°F (-240°C to 350°C) |
| Wetted Material | 316L Stainless Steel |
Q1: Why is the CMF200M considered the industry standard for 2-inch lines?
A1: The CMF200M combines a high flow capacity with a remarkably low zero-stability value. This ensures that the meter remains accurate across a massive turndown ratio, which is critical for precise measurement in 2-inch industrial piping.
Q2: Can the CMF200M handle slurry or entrained gas?
A2: Yes. The ELITE series is specifically designed to manage two-phase flow and slurries better than any other Coriolis meter, providing reliable readings where others fail due to air slugs or solid particles.
Q3: Is the CMF200M suitable for legal-for-trade (Custody Transfer)?
A3: Absolutely. With its high-precision calibration options and extensive marine/fiscal approvals, it is one of the most widely used meters globally for bulk liquid trade.
Q4: How does the 316L Stainless Steel construction benefit my process?
A4: 316L SST offers excellent corrosion resistance for a broad range of chemicals and hydrocarbons, ensuring a long sensor life and reducing the risk of process leaks in high-pressure environments.
