- Get unparalleled measurement sensitivity and stability from this uniquely designed meter
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
- Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications
- Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects
- Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure
- Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)
- Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
- Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials

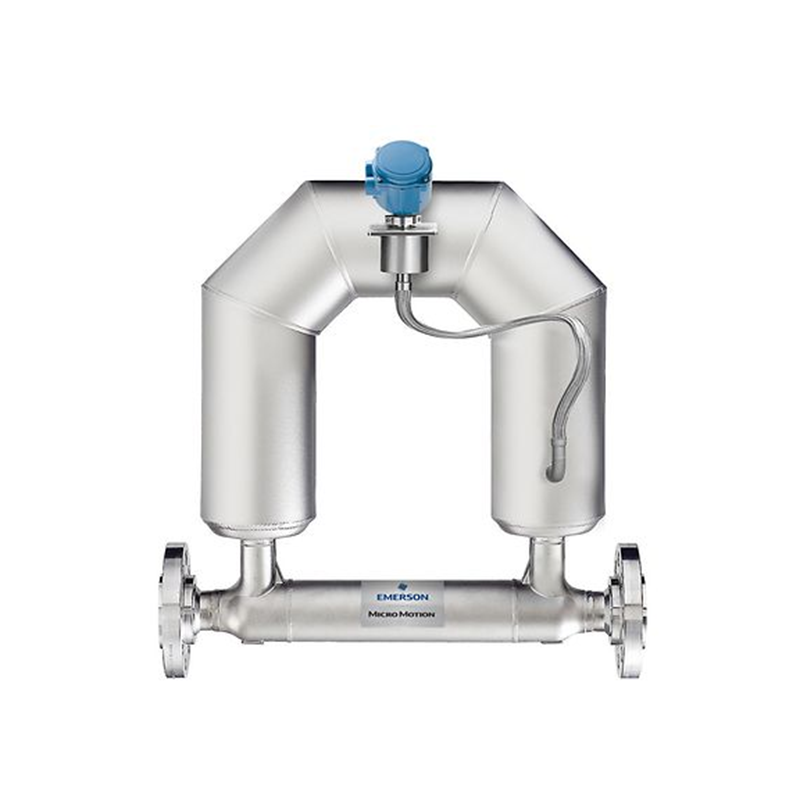

- Interactwith our 3D model to learn more about our ELITE Coriolis Flow and Density Meters
Specifications
Mass flow accuracy (Liquid)
±0.10% of rate
Mass flow repeatability (Liquid)
±0.05% of rate
Volume flow accuracy (Liquid)
±0.10% of rate
Volume flow repeatability (Liquid)
±0.05% of rate
Mass flow accuracy (Gas)
±0.35% of rate
Mass flow repeatability (Gas)
±0.20% of rate
Density accuracy (Liquid)
±0.0005 g/cm3 (±0.5 kg/m3)
Density repeatability (Liquid)
±0.0002 g/cm3 (±0.2 kg/m3)
Temperature accuracy
±1 °C ±0.5% of reading
Sensor maximum working pressure
2,755 psig (190 barg)
Meter approvals, calibrations, and certifications
•UL•CSA•IECEx•NEPSI•ATEX•Ingress Protection•EMC effects
