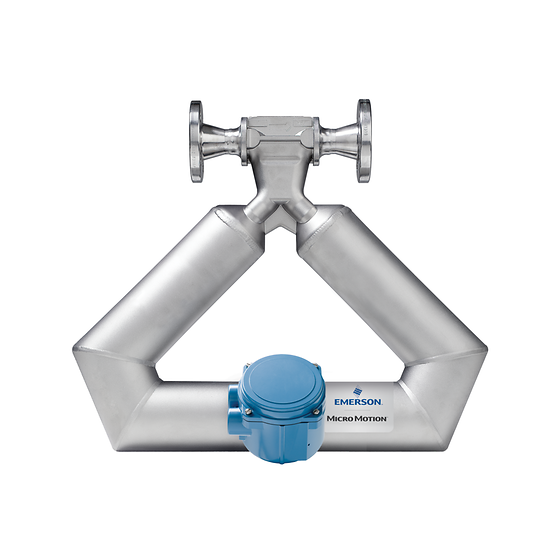

The Micro Motion ELITE CMF100L (DN25) is the definitive solution for high-stakes industrial flow measurement. Constructed with 304L Stainless Steel wetted parts, this 1-inch sensor is engineered to provide absolute measurement confidence in the most challenging environments. Whether you are managing high-value chemical distribution, bulk loading, or process gas measurement, the CMF100L sets the standard for stability and sensitivity.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1 Inch (DN25) |
| Wetted Material | 304L Stainless Steel |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Liquid Density Accuracy | Standard: ±0.0005 $g/cm^3$ |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 1,450 psig (100 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety & Approvals | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI, Marine |
Fiscal Grade Precision: With optional ±0.05% accuracy, the CMF100L is ideal for custody transfer and fiscal measurement applications where even the smallest error results in significant financial loss.
Smart Meter Verification (SMV): Verify your meter’s structural and electronic integrity in under 90 seconds without stopping your process. Ensure long-term reliability and reduce the need for expensive external calibrations.
Extreme Process Resilience: From Cryogenic (-240°C) LNG service to High-Temperature (350°C) oil and gas processes, the ELITE sensor architecture maintains its calibration regardless of environmental effects.
Industry-Leading Density Monitoring: Achieve density accuracy down to ±0.0002 $g/cm^3$. This precision allows for real-time concentration monitoring and batch quality verification without the need for manual sampling.
Vibration Immunity: The unique balanced sensor design provides the highest immunity to pipeline vibration and process noise, delivering a stable zero point and consistent performance.
Advanced Transmitters: Pairs seamlessly with the Emerson 5700 for high-speed processing, on-board data logging, and intuitive graphical interfaces.
Digital Protocols: Full support for HART, Modbus, PROFINET, and EtherNet/IP for modern plant integration.
Rugged Housing: IP66/67 rated and built to withstand harsh industrial washdowns and outdoor environments.
The Challenge: A chemical distribution center was using traditional PD (Positive Displacement) meters for truck loading of a high-value solvent. These meters were prone to mechanical wear and required frequent maintenance, leading to billing disputes due to measurement drift.
The Hanyu Solution: The facility upgraded their loading skids to the Micro Motion ELITE CMF100L from
The Result: The CMF100L provided a maintenance-free, mass-based measurement with ±0.05% accuracy, unaffected by the viscosity changes of the solvent.
The Impact: The customer reduced maintenance costs by 85% and eliminated measurement disputes. The real-time density check also provided immediate proof of product purity during the unloading process, enhancing overall supply chain trust.
Q: Is 304L Stainless Steel suitable for my process?
A: 304L is highly versatile for many industrial liquids, gases, and refined hydrocarbons. For processes involving high concentrations of chlorides or strong mineral acids, we recommend the 316L or C22 Nickel Alloy versions of the CMF100.
Q: Can the CMF100L handle two-phase flow (gas in liquid)?
A: Yes. The ELITE series is renowned for its ability to handle entrained gas and "noisy" applications better than any other Coriolis technology on the market.
Q: Does it require straight pipe runs for installation?
A: No. All Micro Motion Coriolis meters are independent of the flow profile. This 1-inch sensor can be installed directly after valves or elbows, saving valuable space on your process skid.
Q4: How does Hanyu Zhilian assist with the technical selection?
A: We provide comprehensive sizing reports based on your specific flow, pressure, and temperature data to ensure you select the most efficient CMF100 model. All consultations and project data are confidential per our Privacy Policy.
