Product Overview

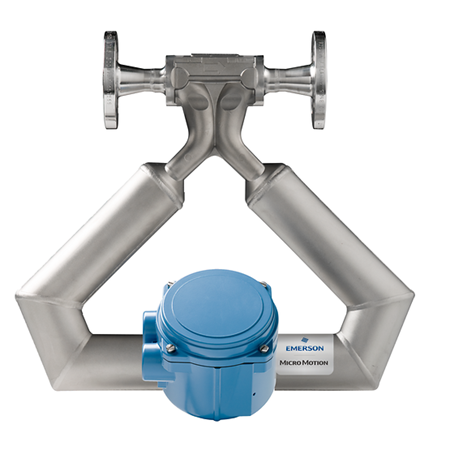

The Micro Motion ELITE CMF050M stands as the industry benchmark for peak performance in flow and density measurement. This 1/2-inch (DN15) sensor is crafted from 316L Stainless Steel, designed specifically for challenging environments where measurement stability and sensitivity are non-negotiable. Whether you are dealing with liquids, gases, or slurries, the CMF050M delivers unparalleled reliability.
Key Specifications
Mass Flow Accuracy (Liquid): Up to ±0.05% of rate (Optional)
Density Accuracy (Liquid): Up to ±0.0002 g/cm³ (±0.2 kg/m³)
Line Size: 1/2” (DN15)
Max Working Pressure: 1,500 psig (103 barg) - Standard models available up to 6,000 psig.
Process Temperature: Ranges from -400°F to 662°F (-240°C to 350°C)
Repeatability: Industry-leading ±0.025% for liquid mass flow.
Features & Advantages
Unmatched Sensitivity: Unique design provides superior immunity to environmental and process effects, ensuring measurement confidence.
In-Process Assurance: Integrated Smart Meter Verification (SMV) allows for real-time calibration checks without interrupting your process.
Versatile Material Options: While this model features 316L Stainless Steel, the ELITE series also offers C-22 nickel alloy and super-duplex for extreme corrosion resistance.
Global Compliance: Fully certified for hazardous areas including ATEX, IECEx, CSA, and NEPSI, along with marine and custody transfer approvals.
Why is the ELITE CMF050M considered "Peak Performance"? The ELITE series features a unique sensor design that offers the highest sensitivity and stability on the market, minimizing variability even in low-flow or high-noise environments.
How does Smart Meter Verification benefit my facility? Smart Meter Verification ensures the meter is operating within factory specifications without needing to remove it from the line, significantly reducing maintenance downtime and proving measurement integrity for regulatory audits.
Does this meter support high-pressure gas applications? Absolutely. With a gas mass flow accuracy of ±0.35% and high-pressure model options up to 6,000 psig, it is ideal for high-stakes gas process control.
