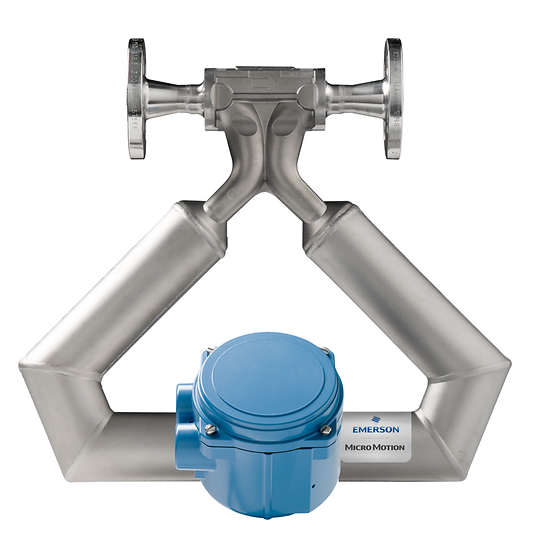

The Micro Motion ELITE CMF050L (DN15) is engineered for critical applications where measurement integrity is non-negotiable. Combining the rugged durability of 304L Stainless Steel with the world-leading ELITE sensor architecture, this 1/2-inch meter provides the highest sensitivity and stability available in the market today.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | 304L Stainless Steel |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Liquid Density Accuracy | Standard: ±0.0005 $g/cm^3$ |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 1,500 psig (103 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI, UL |
Peak Measurement Confidence: With an optional mass flow accuracy of ±0.05%, the CMF050L ensures minimal raw material waste and maximum batch consistency in precision processes.
Smart Meter Verification (SMV): Gain real-time assurance of your meter’s health. SMV allows you to verify the sensor’s structural integrity and electronics in under 90 seconds without interrupting the process.
Exceptional Density Stability: The CMF050L provides density measurement accuracy down to ±0.0002 $g/cm^3$, allowing for precise concentration monitoring and real-time product quality verification.
Environmental Immunity: Its unique sensor geometry cancels out external effects like pipeline stress and vibration, providing the most stable zero point in the industry.
Extreme Process Flexibility: From Cryogenic (-240°C) cooling systems to High-Temperature (350°C) reactors, the CMF050L maintains unparalleled performance across the widest operating envelope.
Advanced Transmitters: Fully compatible with the Emerson 5700 for high-speed signal processing, advanced diagnostics, and intuitive graphical interfaces.
Digital Integration: Native support for HART, Modbus, PROFINET, and EtherNet/IP, ensuring seamless integration into any DCS or PLC architecture.
Global Certifications: Fully certified for hazardous areas (Ex), marine applications, and Custody Transfer (Fiscal Measurement).
The Challenge: A chemical plant was experiencing significant batch-to-batch variation in a 1/2-inch blending line. Their existing volumetric meters were affected by temperature-induced density changes, leading to frequent off-spec product.
The Hanyu Solution: The plant upgraded to the Micro Motion ELITE CMF050L via
The Result: The CMF050L provided mass-based measurement that was independent of temperature fluctuations, maintaining a stable ±0.05% accuracy.
The Impact: The facility achieved 100% batch compliance within the first month. The real-time density measurement also enabled them to detect raw material purity issues before they entered the blending process, saving an estimated $20,000 in monthly waste.
Q: When should I choose 304L Stainless Steel (CMF050L) over 316L?
A: 304L is a cost-effective, high-performance material for many general-purpose industrial liquids and gases. If your process involves high concentrations of chlorides or strong acids, we recommend the 316L or C22 Nickel Alloy models.
Q: Does the CMF050L require long straight pipe runs for installation?
A: No. One of the primary benefits of Micro Motion Coriolis technology is that it is independent of the flow profile. You can install the CMF050L immediately after valves or bends without any loss of accuracy.
Q: Can this meter measure entrained gas in liquids?
A: Yes. The ELITE series is specifically designed with the highest sensitivity and stability to handle "noisy" applications, including fluids with entrained gas or slurry-like consistencies.
Q4: How does Hanyu Zhilian ensure the correct sizing for my application?
A: Our technical team uses official sizing software to perform a detailed analysis of your pressure drop, flow range, and accuracy requirements. Every unit is shipped with original factory documentation. All project data is confidential per our Privacy Policy.
