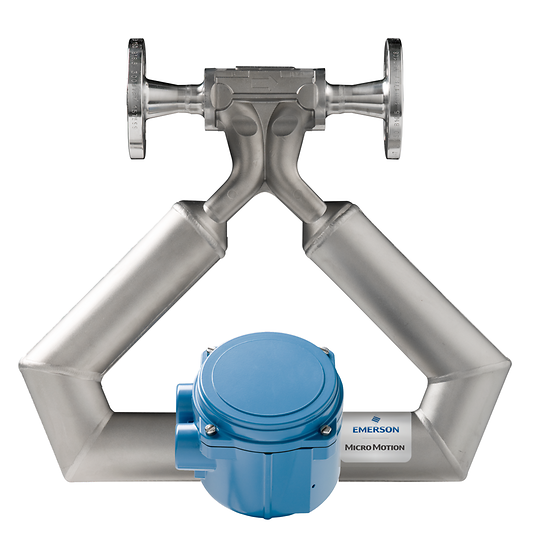

The Micro Motion ELITE CMF050H (DN15) is the high-performance heart of precision chemical processing. Engineered with Nickel Alloy C22 (Hastelloy equivalent) wetted parts, this 1/2-inch sensor provides superior resistance to pitting, stress corrosion cracking, and aggressive oxidizing/reducing environments.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/2 Inch (DN15) |
| Wetted Material | Nickel Alloy C22 (Hastelloy) |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Density Accuracy (Liquid) | Standard: ±0.0005 $g/cm^3$ |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 2,683 psig (185 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI, UL |
Ultimate Corrosion Defense: Nickel Alloy C22 offers a broader range of protection than 316L stainless steel, especially against wet chlorine, acetic acid, and ferric chlorides.
Laboratory-Grade Density: With an optional density accuracy of ±0.0002 $g/cm^3$, the CMF050H allows for ultra-precise concentration monitoring, often replacing offline lab analysis.
Smart Meter Verification (SMV): Verify the structural integrity of your C22 tubes and the health of the electronics in under 90 seconds. Keep your process running safely without removing the meter for calibration.
Immunity to Process Effects: The ELITE balance system ensures the highest immunity to fluid, process, and environmental vibrations, delivering the most stable zero point in its class.
Broadest Application Scope: From Cryogenic service to High-Temperature reactors, the CMF050H maintains consistent performance, simplifying your instrumentation across the plant.
Next-Gen Transmitters: Fully compatible with the Emerson 5700 for advanced diagnostics, data logging, and easy-to-use graphical interfaces.
Digital Integration: Native support for HART, Modbus, PROFINET, and EtherNet/IP for seamless DCS/PLC communication.
Rugged Housing: IP66/67 rated to withstand the harshest chemical plant environments and washdowns.
The Challenge: A pharmaceutical manufacturer needed to inject a concentrated acid mixture into a DN15 solvent line. Standard stainless steel meters were failing due to corrosion, and the resulting flow drift was ruining expensive active pharmaceutical ingredient (API) batches.
The Hanyu Solution: The plant upgraded to the Micro Motion ELITE CMF050H via
The Result: The Nickel Alloy C22 wetted parts showed no signs of degradation, and the meter maintained a field accuracy of ±0.05%.
The Impact: The plant eliminated unplanned downtime and reduced batch variation by 18%. The real-time density measurement enabled them to adjust the acid concentration on-the-fly, ensuring 100% batch compliance.
Q: Is Nickel Alloy C22 the same as Hastelloy?
A: Yes, C22 is the technical designation for the alloy famously known by the trade name Hastelloy C-22. It is significantly more resistant than 316L in most aggressive chemical services.
Q: Can this meter handle gas and slurry?
A: Absolutely. The ELITE series is uniquely designed to provide stable measurements even with entrained gas or in slurry applications where other Coriolis meters struggle with "noise."
Q: Does the CMF050H require straight pipe runs?
A: No. Like all Micro Motion Coriolis meters, it is independent of the flow profile. You can install it immediately after bends or valves without any loss in accuracy.
Q4: How does Hanyu Zhilian ensure the best configuration for me?
A: Our technical team performs a comprehensive sizing analysis to match the CMF050H to your specific flow rate and pressure requirements. We guarantee original factory quality and documentation. All project data is confidential per our Privacy Policy.
