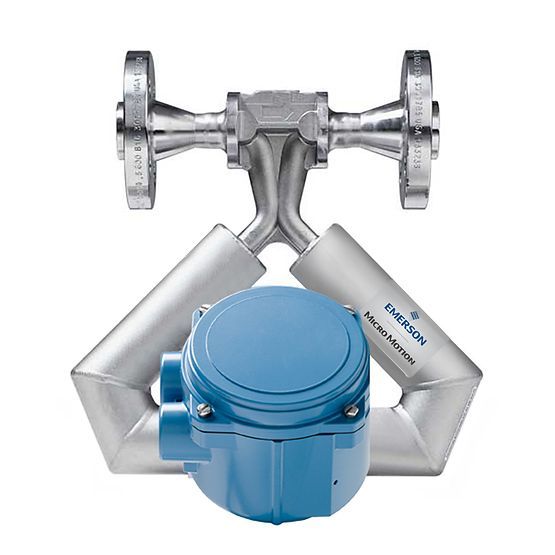

The Micro Motion ELITE CMF025L (DN6) is engineered for those who refuse to compromise on accuracy. As part of the world-leading ELITE series, this 1/4-inch sensor delivers peak performance in a 304L Stainless Steel package. It is specifically designed to provide stable, repeatable measurements in challenging low-flow applications where process noise and environmental fluctuations often compromise other meters.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/4 Inch (DN6) |
| Wetted Material | 304L Stainless Steel |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Density Accuracy (Liquid) | Standard: ±0.0005 $g/cm^3$ |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 1,500 psig (103 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI, UL |
Exceptional Density Precision: With an optional density accuracy of ±0.0002 $g/cm^3$, the CMF025L is a laboratory-grade tool for real-time concentration monitoring and product quality control.
Smart Meter Verification (SMV): Run a complete diagnostic of the sensor’s health and tube integrity in under 90 seconds without interrupting your process. Ensure your meter is as accurate as the day it was installed.
Environmental Immunity: The ELITE series’ unique design cancels out external vibration and thermal stresses, providing the most stable zero point in the industry for micro-flow measurement.
Broad Process Envelope: Whether your application is Cryogenic (-240°C) or High-Heat (350°C), the CMF025L maintains its peak performance, ensuring scalability across your entire facility.
Global Compliance & Safety: Carrying SIL2/SIL3 and all major hazardous area certifications, this meter is ready for safety-instrumented systems (SIS) and high-stakes chemical loops.
The CMF025L is built for modern digital plants:
Advanced Transmitters: Pairs perfectly with the Emerson 5700 for high-speed processing and on-board data historian.
Digital Protocols: Full support for HART, Modbus, PROFINET, and EtherNet/IP.
Flexible Mounting: Compact DN6 footprint allows for easy installation in tight gas cabinets or chemical injection skids.
The Challenge: A specialty lubricant manufacturer needed to dose a high-cost additive at a flow rate of 120 kg/h. Their existing gear meter was prone to mechanical wear and required monthly recalibration to maintain ±1.0% accuracy.
The Hanyu Solution: The manufacturer upgraded to the Micro Motion ELITE CMF025L from
The Result: The CMF025L provided a stable ±0.05% accuracy with zero maintenance required.
The Impact: The customer reduced additive over-dosing by 0.8%, saving over $15,000 in raw materials in the first six months. The in-process density measurement allowed them to verify additive purity before it entered the main blend.
Q: Can the CMF025L be used for custody transfer?
A: Yes. The ELITE series is world-renowned for its performance in fiscal measurement and carries the necessary weights and measures approvals for high-value liquid and gas transfer.
Q: How does 304L Stainless Steel compare to 316L?
A: 304L is a cost-effective, robust material suitable for most industrial gases and non-corrosive liquids. For highly corrosive environments (containing chlorides or strong acids), Hanyu Zhilian recommends the 316L or C22 Nickel Alloy models.
Q: Is it suitable for slurry measurement?
A: Absolutely. The ELITE series' high sensitivity and multivariable measurement make it one of the few technologies capable of reliably measuring the mass and density of low-flow slurries.
Q4: How does Hanyu Zhilian ensure I get the best price and lead time?
A: We are specialists in Micro Motion supply chains. We provide expert sizing to prevent over-specification, ensuring you get the most cost-effective ELITE model for your exact flow range. All project data is confidential per our Privacy Policy.
