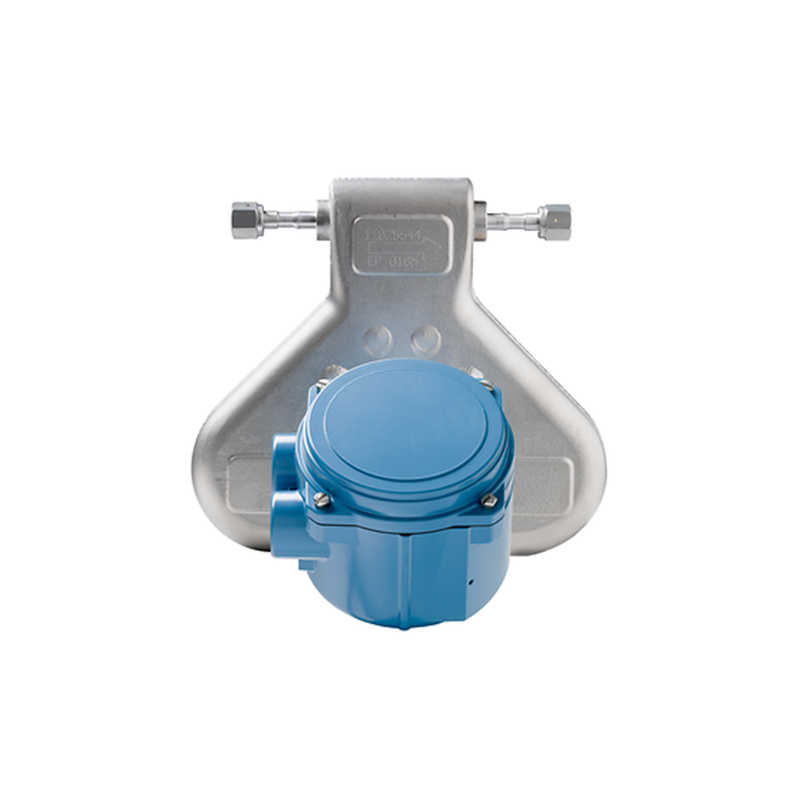

Emerson Micro Motion ELITE CMF010P Coriolis Meter, 1/10 Inch (DN2), Nickel Alloy C22 And 316L Stainless Steel, High Pressure

• Get unparalleled measurement sensitivity and stability from this uniquely designed meter
• Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
• Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications
• Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects
• Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure
• Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg)
• Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
• Available with a rupture disk or purge fitting case
• Interactwith our 3D model to learn more about our ELITE Coriolis Flow and Density Meters

Specifications

Mass flow accuracy (Liquid)

±0.10% of rate (standard)±0.05% of rate (optional)

Mass flow repeatability (Liquid)

±0.05% of rate (standard)±0.025% of rate (optional)

Volume flow accuracy (Liquid)

±0.10% of rate (standard)±0.05% of rate (optional)

Volume flow repeatability (Liquid)

±0.05% of rate (standard)±0.025% of rate (optional)

Mass flow accuracy (Gas)

±0.35% of rate

Mass flow repeatability (Gas)

±0.20% of rate

Density accuracy (Liquid)

±0.0005 g/cm3 (±0.5 kg/m3)

Density repeatability (Liquid)

±0.0002 g/cm3 (±0.2 kg/m3)

Temperature accuracy

±1 °C ±0.5% of reading

Sensor maximum working pressure

6,000 psig (414 barg)

Meter approvals, calibrations, and certifications
