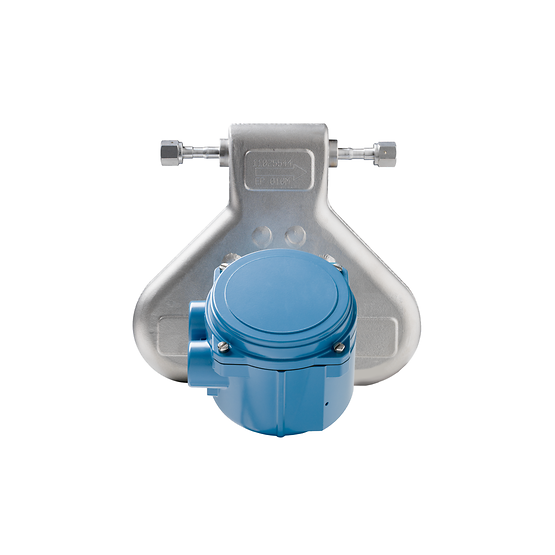

The Micro Motion ELITE CMF010L (DN2) is engineered for applications where every drop counts. Combining a compact 1/10-inch sensor design with a rugged 304L Stainless Steel housing, this meter delivers unparalleled sensitivity and stability. It is the premier choice for research and development, additive dosing, and high-precision chemical injection.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/10 Inch (DN2) |
| Wetted Material | 304L Stainless Steel |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Liquid Density Accuracy | ±0.0005 $g/cm^3$ |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 1,812 psig (125 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI |
Unrivaled Low-Flow Sensitivity: Specifically designed to maintain high accuracy at very low flow rates, where traditional meters struggle with drift or signal loss.
Smart Meter Verification (SMV): Verify your meter's health in less than 90 seconds. SMV provides in-process assurance that the sensor is operating within factory specifications without shutting down the line.
304L Stainless Steel Durability: Provides a robust and cost-effective material solution for a wide range of non-corrosive process fluids and high-pressure industrial gases.
Environmental Immunity: The ELITE design isolates the measuring tubes from external pipeline stresses and temperature fluctuations, providing superb measurement confidence.
Scalable Connectivity: Seamlessly pairs with Emerson 5700, 2400, or 1700 transmitters to support HART, Modbus, PROFINET, and EtherNet/IP architectures.
Advanced Diagnostics: Includes data logging and historian functions when paired with the 5700 transmitter.
Global Approvals: Ready for hazardous areas (Ex), Marine environments, and Custody Transfer (Fiscal Measurement).
Extreme Process Coverage: Suitable for everything from Cryogenic cooling to High-Temperature catalyst feeds.
The Challenge: A food processing plant needed to inject highly concentrated flavors into a production line. The flow rate was extremely low, and any inconsistency led to massive batch rejects due to flavor imbalance.
The Hanyu Solution: The plant integrated the Micro Motion ELITE CMF010L via
The Result: The CMF010L provided a steady, repeatable measurement at ±0.05% accuracy.
The Impact: Batch consistency improved to 99.9%, and flavor waste was reduced by 15%. The plant used the density measurement to monitor flavor concentration in real-time, ensuring quality before the product reached the end of the line.
Q: When should I choose 304L Stainless Steel (CMF010L) over 316L?
A: 304L is an excellent, cost-effective choice for many general-purpose and high-pressure gas applications. For highly corrosive chemical service (like acids or chlorides), we recommend the 316L or Nickel Alloy C22 versions.
Q: Does the CMF010L handle gas flow as accurately as liquid?
A: While liquid accuracy is higher (±0.05%), the CMF010L is still world-class for gas at ±0.35%, making it ideal for high-pressure gas dosing and micro-leak detection.
Q: Is it difficult to install such a small sensor?
A: Not at all. Its compact DN2 size makes it easy to integrate into small skids or lab benches. No straight pipe runs are required upstream or downstream.
Q4: How does Hanyu Zhilian ensure I get the right configuration?
A: Our engineers provide customized sizing reports using official Emerson software to match the CMF010L to your specific flow range and pressure drop. All project data is confidential per our Privacy Policy.
