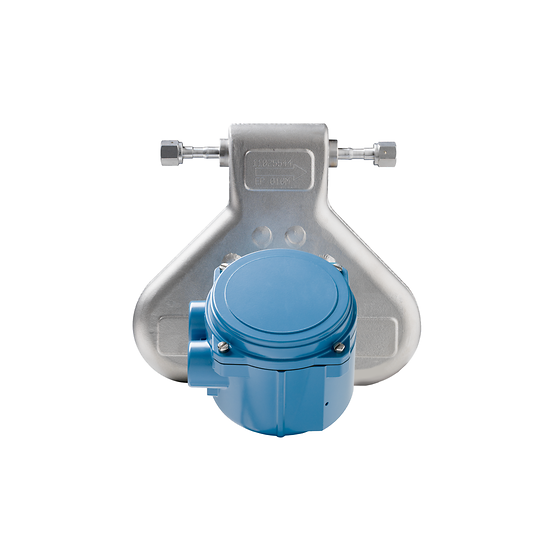

The Micro Motion ELITE CMF010H (DN2) is the definitive choice for critical applications that demand absolute precision and material integrity. Constructed from Nickel Alloy C22 (Hastelloy equivalent), this 1/10-inch sensor is designed to handle the most aggressive chemicals and catalysts while delivering the industry’s highest measurement sensitivity.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/10 Inch (DN2) |
| Wetted Material | Nickel Alloy C22 (Hastelloy) |
| Liquid Mass Flow Accuracy | Standard: ±0.10% |
| Liquid Density Accuracy | ±0.0005 $g/cm^3$ (Industry Leading) |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Max. Working Pressure | 3,263 psig (225 barg) |
| Temperature Range | -240 °C to 350 °C (-400 °F to 662 °F) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, CSA, NEPSI |
Nickel Alloy C22 Excellence: C22 alloy offers superior resistance to pitting, crevice corrosion, and stress corrosion cracking, outperforming 316L stainless steel in oxidizing and reducing environments.
Extreme Temperature Versatility: From Cryogenic (-240°C) applications like LNG to High-Temperature (350°C) chemical reactors, the CMF010H maintains its precision across the widest thermal envelope.
Smart Meter Verification (SMV): Gain real-time assurance of your meter’s health. SMV checks the sensor’s structural integrity and electronics without interrupting your process—crucial for high-stakes chemical loops.
Unparalleled Density Stability: With a density accuracy of ±0.0005 $g/cm^3$, this meter is a powerful tool for real-time concentration and quality monitoring in complex slurries or mixtures.
Global Compliance: Certified for Custody Transfer and carrying SIL2/SIL3 safety ratings, the CMF010H is ready for the most regulated and safety-critical industries.
Multi-Protocol Support: Fully compatible with Emerson 5700 and 2400 transmitters, supporting HART, Modbus, PROFINET, and EtherNet/IP.
Hygienic & Marine Ready: Models are available with surface finishes and certifications suitable for pharmaceutical (ASME BPE) and marine (DNV/ABS) applications.
The Challenge: A specialty chemical plant needed to dose a highly expensive and corrosive catalyst into a high-pressure reactor. Even a 1% deviation in flow would result in thousands of dollars in wasted raw materials or a ruined batch.
The Hanyu Solution: The plant implemented the Micro Motion ELITE CMF010H via
The Result: The C22 Nickel Alloy tubes resisted the corrosive catalyst perfectly, and the meter achieved a stable ±0.05% accuracy in the field.
The Impact: The plant reduced catalyst waste by 12% annually, paying for the meter within the first three months of operation. The built-in diagnostics alerted operators to air entrainment issues before they could affect the batch quality.
Q: What makes Nickel Alloy C22 better than 316L?
A: C22 provides much better resistance to aggressive chemicals, especially those containing chlorides, and is highly effective in preventing corrosion in "sour" or acidic process conditions.
Q: Can this meter be used for Fiscal Measurement?
A: Yes. The ELITE series carries numerous global approvals for weights and measures, making it suitable for high-value custody transfer of liquids and gases.
Q: How does the CMF010H handle vibration?
A: The ELITE design features a unique sensor geometry that provides the highest immunity to pipeline vibration and process noise, ensuring a stable zero point.
Q4: How can Hanyu Zhilian help with the lead time for ELITE sensors?
A: We specialize in the rapid supply of high-end Micro Motion instrumentation. Our technical team ensures your configuration is correct the first time to avoid project delays. All consultations are confidential per our Privacy Policy.
