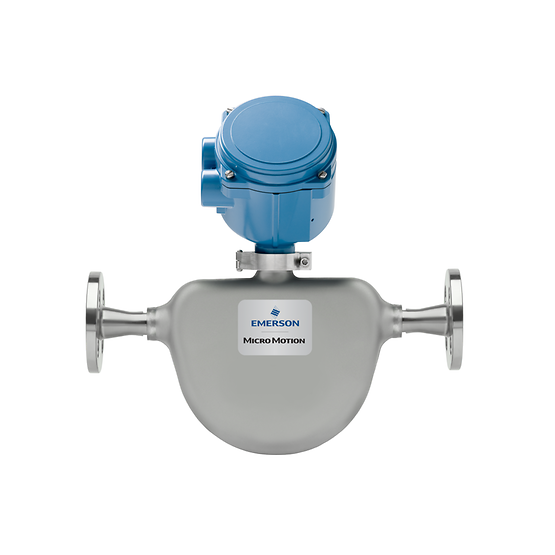

The Micro Motion ELITE CMFS010M (DN2) is a 1/10-inch Coriolis meter designed to deliver absolute precision where every drop counts. Engineered with a 316L Stainless Steel drainable design, this sensor provides the high sensitivity and stability required for the most challenging micro-flow liquid and gas applications.
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/10 Inch (DN2) |
| Wetted Material | 316L Stainless Steel |
| Mass Flow Accuracy (Liq) | Standard: ±0.10% |
| Mass Flow Repeatability | Standard: ±0.05% |
| Mass Flow Accuracy (Gas) | ±0.25% of rate |
| Density Accuracy (Liq) | Standard: ±0.002 $g/cm^3$ |
| Max. Working Pressure | 1,812 psig (125 barg) (Up to 6,000 psig available) |
| Process Temp. Range | -400°F to 662°F (-240°C to 350°C) |
| Safety Ratings | SIL2 / SIL3, ATEX, IECEx, NEPSI, CSA, Marine |
ELITE Precision in Micro-Scale: Unlike standard meters, the CMFS010M maintains its ±0.05% accuracy at the very bottom of the flow range, ensuring precise dosing of high-value active ingredients and catalysts.
Superior Density Measurement: Provides liquid density accuracy up to ±0.0005 $g/cm^3$, allowing for real-time concentration monitoring and product quality verification in small-bore lines.
Immunity to Process Effects: The unique ELITE sensor design offers the highest immunity to fluid pulsations, environmental vibrations, and temperature changes, providing a stable "zero" that is critical for micro-flow stability.
Smart Meter Verification (SMV): Verify your meter’s health and calibration in-situ without breaking the sterile or pressurized seal of your micro-flow line. SMV ensures the CMFS010M is operating at peak performance in under 90 seconds.
Widest Temperature Envelope: Capable of handling everything from cryogenic fluids (-240°C) to high-heat chemical reactions (350°C), offering unparalleled scalability for pilot plant operations.
Fully Drainable Design: The sensor geometry ensures no fluid is trapped, facilitating easy cleaning and reducing the risk of cross-contamination between batches.
Multivariable Digital Power: Directly measures mass flow, volume flow, density, and temperature from a single DN2 connection.
Universal Transmitter Compatibility: Pairs with Emerson 5700 and 2400 transmitters for advanced data logging and local graphical diagnostics.
Global Digital Standards: Native support for HART, Modbus, PROFINET, and EtherNet/IP for seamless integration into modern automation architectures.
The Challenge: A specialty manufacturer needed to dose a concentrated fragrance oil into a production line at a 1/10-inch scale. Standard volumetric pumps were inconsistent, leading to wasted product and batch rejections.
The Hanyu Solution: The facility installed the Micro Motion CMFS010M from
The Result: The CMFS010M provided precise mass-based measurement that was unaffected by the oil's temperature-driven viscosity changes.
The Impact: Batch rejection rates dropped by 95%, and fragrance waste was reduced by 12%, resulting in a full return on investment in just three months.
Q: Is the CMFS010M suitable for hazardous area installations?A: Yes. It carries a full suite of global approvals including ATEX, IECEx, CSA, and NEPSI, and is certified for use in SIL2 and SIL3 safety-instrumented systems.
Q: Does it require straight pipe runs?A: No. As a Coriolis meter, the CMFS010M is independent of the flow profile and can be installed in compact dosing skids without any straight pipe run requirements.
Q: Can I get this in materials other than 316L?A: Yes. While 316L is standard, the CMFS010 is also available in Nickel Alloy C22 for highly corrosive applications and Super-Duplex for extreme strength requirements.
