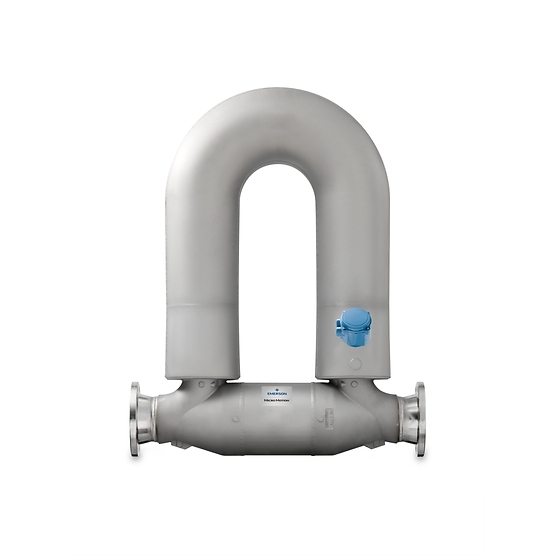

The Micro Motion ELITE CMFHC2G is a high-capacity Coriolis flow meter engineered for large-scale pipelines ranging from 6 to 8 inches (DN150 to DN200). As part of the world-renowned ELITE series, the CMFHC2G is designed to deliver unparalleled accuracy and stability in the most demanding bulk measurement applications, including crude oil transport, bunker fuel loading, and large-scale chemical processing.
Available through
| Feature | Performance Data |
| Line Size Range | 6 Inch to 8 Inch (DN150 – DN200) |
| Wetted Material | 316L Stainless Steel |
| Accuracy (Liquid) | ±0.05% to ±0.10% of rate (Application dependent) |
| Repeatability (Liquid) | ±0.025% to ±0.05% of rate |
| Pressure Rating | Standard Pressure (Up to 1,450 psig / 100 barg) |
| Temperature Range | Standard Range (-400°F to 400°F / -240°C to 204°C) |
| Certification | Custody Transfer, SIL 2/3, ATEX, IECEx, CSA, Marine |
Unrivaled High-Capacity Measurement: Purpose-built for high-volume throughput, the CMFHC2G maintains precision even at massive flow rates, reducing loading/unloading times for tankers, railcars, and barges.
Fiscal-Grade Custody Transfer: Carrying the world’s most stringent metrology approvals, this meter eliminates disputes in bulk trade by providing the highest level of measurement confidence available today.
Smart Meter Verification (SMV): High-capacity lines cannot afford to be shut down. SMV allows you to verify the structural and electronic health of the CMFHC2G in real-time, without interrupting the flow or pulling the meter for calibration.
Extreme Immunity to External Effects: The ELITE sensor geometry provides the highest immunity to pipeline vibration, pressure fluctuations, and fluid density changes, ensuring a stable "zero" in harsh industrial environments.
Superior Two-Phase Flow Capability: Excels in handling entrained air and gas/liquid mixtures, which is critical during the beginning or end of bulk tank stripping and loading cycles.
Broad Scalability: While this model features 316L SS, the ELITE architecture is scalable to cryogenic LNG applications or high-pressure gas, providing a single platform for all your high-capacity needs.
Advanced Transmitter Support: Pairs perfectly with the Emerson 5700 transmitter for industry-leading signal processing and data logging.
Global Protocol Support: Seamlessly integrates with HART, Modbus, PROFINET, and EtherNet/IP for real-time monitoring via DCS or SCADA systems.
Marine & Offshore Ready: Fully certified for shipboard use and offshore platforms, making it the top choice for bunker fuel and offshore oil production.
The Challenge: A marine terminal needed to upgrade their 8-inch loading lines to improve batch accuracy and reduce the 2% "shrinkage" they were experiencing with traditional mechanical meters.
The Hanyu Solution: The terminal installed the Micro Motion CMFHC2G from
The Result: The CMFHC2G provided stable, fiscal-grade mass flow data regardless of the oil's viscosity or temperature changes.
The Impact: Product loss was reduced by 1.8%, and the terminal saved over $500,000 annually in lost product, with a full ROI achieved within the first few months of operation.
Q: Can the CMFHC2G handle gas measurement?
A: Yes. The CMFHC2G is excellent for high-volume gas flow and high-pressure gas applications, delivering the same level of reliability found in liquid processes.
Q: Is the 316L Stainless Steel finish suitable for hygienic use?
A: This model features a Standard Finish. For food and pharmaceutical applications requiring 3-A or EHEDG certification, please contact us for specialized hygienic finish options within the H-Series or ELITE range.
Q: How does Smart Meter Verification help in a 6-8 inch line?
A: Removing a DN200 meter for calibration is an expensive, multi-day operation involving cranes and line breaks. SMV performs this check digitally in minutes, saving tens of thousands of dollars in labor and downtime.
