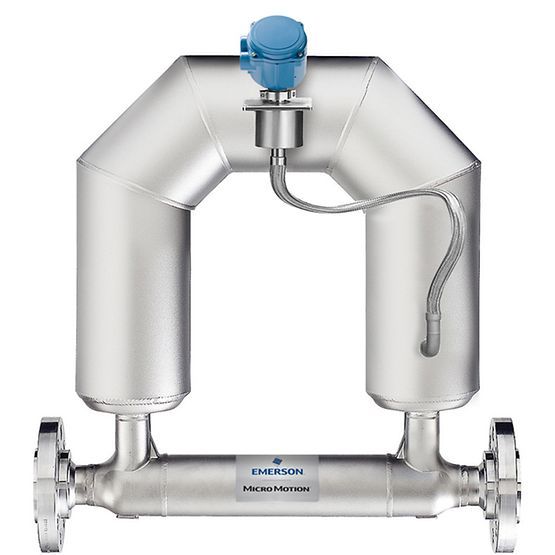

The Micro Motion ELITE CMF200A (DN50) is the industry’s premier 2-inch Coriolis meter, specifically engineered for high-temperature applications that require uncompromising accuracy. Built with premium 316L Stainless Steel, the CMF200A delivers the unparalleled sensitivity and zero stability that define the ELITE line, even under extreme thermal stress.
Available through
| Feature | Performance Data |
| Nominal Line Size | 2 Inch (DN50) |
| Wetted Material | 316L Stainless Steel (Nickel Alloy C22 & Super-Duplex available) |
| Process Temp. Range | -400°F to 662°F (-240°C to 350°C) |
| Mass Flow Accuracy (Liq) | ±0.10% of rate |
| Density Accuracy (Liq) | ±0.0005 $g/cm^3$ (±0.5 $kg/m^3$) |
| Max. Working Pressure | 1,580 psig (109 barg) |
| Gas Mass Flow Accuracy | ±0.35% of rate |
| Certifications | SIL2/3, ATEX, IECEx, NEPSI, CSA, Marine |
High-Temperature Excellence: Specifically designed to maintain its ±0.10% accuracy in processes reaching up to 350°C (662°F), ensuring stable measurement where standard sensors fail.
Elite Measurement Sensitivity: The unique sensor geometry provides the industry’s best turndown ratio and zero stability, allowing for precise measurement across the widest flow range.
Smart Meter Verification (SMV): Eliminate the cost and danger of pulling a 2-inch meter from a high-temperature line. SMV allows you to verify the sensor's health and calibration in-process in less than 90 seconds.
Superior Environmental Immunity: Engineered to be virtually immune to pipe stress, vibration, and pressure fluctuations, ensuring your data remains reliable regardless of external conditions.
Custody Transfer Approved: Globally certified for fiscal billing and legal-for-trade applications, making it the trusted standard for high-value liquid and gas bulk transfers.
Scalable and Robust: Rated for pressures up to 1,580 psig (109 barg), with options for even higher pressure models, providing the durability needed for the most challenging industrial skids.
Multivariable Insight: Replaces multiple discrete instruments with a single DN50 device, reducing leak points and installation costs.
Advanced Transmitter Support: Pairs with the Emerson 5700 transmitter for local data logging, zero-stability diagnostics, and fast signal processing.
Universal Protocols: Native support for HART, Modbus, PROFINET, and EtherNet/IP ensure seamless integration into any modern DCS or PLC environment.
The Challenge: A petrochemical refinery needed to measure the mass flow of a reactive monomer at 280°C. Standard flow meters exhibited significant drift due to thermal expansion and vibration.
The Hanyu Solution: The refinery implemented the Micro Motion CMF200A from
The Result: The CMF200A’s high-temperature design handled the heat effortlessly, while its superior immunity to vibration eliminated the drift issues.
The Impact: Process yield was optimized by 4%, and the facility successfully moved to an "on-demand" calibration schedule using SMV, saving thousands in annual maintenance costs.
Q: Does the "High Temperature" model require special insulation?
A: While the sensor is built for heat, we recommend standard industrial insulation practices for the sensor body to ensure consistent process temperatures and personnel safety.
Q: Can the CMF200A be used for LNG (Cryogenic) service?
A: Yes. The ELITE series is rated down to -240°C (-400°F), making the CMF200A one of the most versatile 2-inch meters for both extreme heat and extreme cold.
Q: What is the difference between CMF200 and CMFS200?
A: The CMF200 is the traditional ELITE design optimized for maximum sensitivity and extreme temperature/pressure ranges. The CMFS200 is part of the "Elite Supreme" line, which features a more compact, self-draining design.
