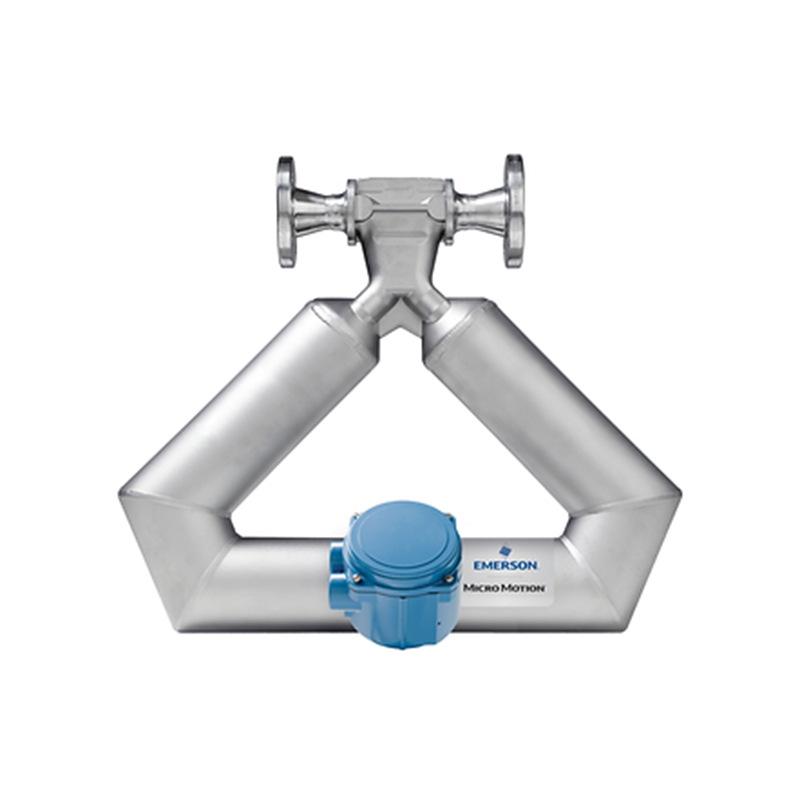

Unmatched Precision for Critical Process Control. The ELITE Series offers industry-leading mass flow accuracy (up to $\pm0.05\%$)and density measurement stability. Designed for the most demanding applications—from cryogenic liquids to high-pressure gases—ensuring real-time process integrity with Smart Meter Verification.
Ultimate Sensitivity & Stability
Unique sensor design provides unparalleled measurement performance even in challenging slurry or entrained gas applications.
Smart Meter Verification (SMV)
Gain real-time, in-process measurement integrity assurance without interrupting your workflow.
Extreme Versatility
Widest temperature range: -400°F to 662°F (-240°C to 350°C). Pressure ratings up to 6,000 psig (414 barg).
Advanced Material Options
Available in 316L Stainless Steel, C-22 nickel alloy, and super-duplex for superior corrosion resistance.
Global Compliance & Safety
Certified for SIL2/SIL3, ATEX, IECEx, CSA, and Marine applications. Ideal for custody transfer.
| Feature | Specification (Standard) | High-Precision Option |
| Mass Flow Accuracy (Liquid) | $\pm0.10\%$ of rate | $\pm0.05\%$ of rate |
| Mass Flow Repeatability (Liquid) | $\pm0.05\%$ of rate | $\pm0.025\%$ of rate |
| Mass Flow Accuracy (Gas) | $\pm0.35\%$ of rate | N/A |
| Density Accuracy (Liquid) | $\pm0.0005$ g/cm³ | $\pm0.0002$ g/cm³ |
| Temperature Range | -240°C to 350°C | - |
| Max Working Pressure | Up to 6,000 psig | Model Dependent |
Oil & Gas: Custody transfer and high-pressure injection.
Chemical: Aggressive chemical dosing and density control.
Hygienic: Food, beverage, and pharmaceutical processing.
Cryogenic: LNG and liquid nitrogen measurement.
