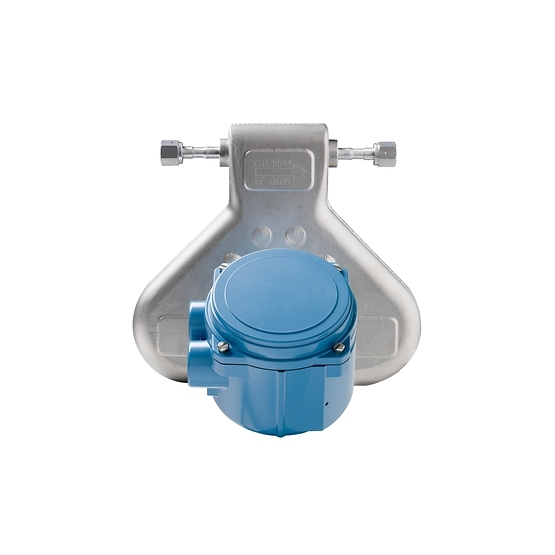

The Micro Motion ELITE CMF010P (DN2) is an ultra-high pressure, 1/10-inch Coriolis meter designed for applications where absolute accuracy is non-negotiable. By combining Nickel Alloy C22 (Hastelloy equivalent) sensor tubes with robust 316L Stainless Steel fittings, the CMF010P safely handles operating pressures up to 6,000 psig (414 barg).
Available through
| Feature | Performance Data |
| Nominal Line Size | 1/10 Inch (DN2) |
| Wetted Material | Nickel Alloy C22 (Tubes) + 316L Stainless Steel (Fittings) |
| Max. Working Pressure | 6,000 psig (414 barg) |
| Mass Flow Accuracy (Liq) | Standard: ±0.10% |
| Density Accuracy (Liq) | ±0.0005 $g/cm^3$ (±0.5 $kg/m^3$) |
| Mass Flow Accuracy (Gas) | ±0.35% of rate |
| Process Temp. Range | -400°F to 662°F (-240°C to 350°C) |
| Safety Certifications | SIL2/3, ATEX, IECEx, NEPSI, CSA, Marine |
Ultra-High Pressure Capability: Rated for 6,000 psig (414 barg), the CMF010P is the industry benchmark for high-pressure chemical injection (HPCI) and laboratory-scale high-pressure synthesis.
C22 Corrosion Defense: The internal Nickel Alloy C22 tubes provide a robust barrier against aggressive oxidizing/reducing agents and chlorides, outperforming 316L stainless steel in longevity and safety.
Peak Micro-Flow Sensitivity: The ELITE architecture allows for the highest turndown ratio available, maintaining ±0.05% precision even at the lowest flow rates where traditional meters fail to provide a stable reading.
Smart Meter Verification (SMV): High-pressure lines are difficult and dangerous to service. SMV enables you to verify the structural integrity and calibration of the CMF010P in-situ, without stopping the process or exposing technicians to high-pressure hazards.
Immunity to Process Noise: Unmatched stability against environmental vibrations and pressure pulsations, ensuring a consistent, clean signal for critical control loops.
Enhanced Safety Options: Available with a rupture disk or purge fitting case, providing essential secondary containment for high-pressure hazardous chemical service.
Multivariable Insight: Simultaneously measure mass flow, volume flow, density, and temperature from one compact 1/10-inch connection.
Transmitter Versatility: Fully compatible with the Emerson 5700 transmitter for advanced diagnostics, historian logging, and simplified 9-wire digital communication.
Global Digital Standards: Supports HART, Modbus, PROFINET, and EtherNet/IP for direct integration into high-pressure dosing skids and DCS platforms.
The Challenge: An offshore platform required the precise injection of methanol at 5,500 psi to prevent hydrate formation in subsea lines. The small-bore meter needed to resist corrosion and maintain accuracy despite high-pressure pump pulsations.
The Hanyu Solution: The plant integrated the Micro Motion CMF010P from
The Result: The C22 tubes handled the methanol and high pressure perfectly. The ELITE precision ensured dosing was accurate to within ±0.05%.
The Impact: Methanol waste was reduced by 15%, and the plant realized a return on investment within 6 months while enhancing subsea safety through reliable dosing.
Q: What is the benefit of the Nickel Alloy C22/316L hybrid design?
A: The C22 tubes provide the necessary corrosion resistance for the fluid path, while the 316L fittings provide high-strength, cost-effective industrial connectivity for the 6,000 psi pressure rating.
Q: Can it be used for high-pressure gas measurement?
A: Absolutely. The CMF010P is a top performer for high-pressure gas, offering an accuracy of ±0.35%, ideal for industrial gas research and specialized hydrogen applications.
Q: Why choose the "P" model over the "M" model?
A: The CMF010P is specifically rated for higher pressures (6,000 psig) and features the Nickel Alloy C22 material, whereas the "M" model typically utilizes 316L SS at lower pressure ratings.
Q: Why source the CMF010P from Hanyu Zhilian?
A: We provide 100% original and brand-new Emerson products, each accompanied by a comprehensive documentation package including Material Traceability Reports (MTRs), Ultra-High Pressure Test Certificates, and original Factory Calibration Certificates.
