Discover the Proline Promag H 10 flowmeter. Designed for basic hygienic applications with Bluetooth SmartBlue App control and IO-Link. PFA lined, CIP/SIP cleanable, and 3-A/EHEDG certified.

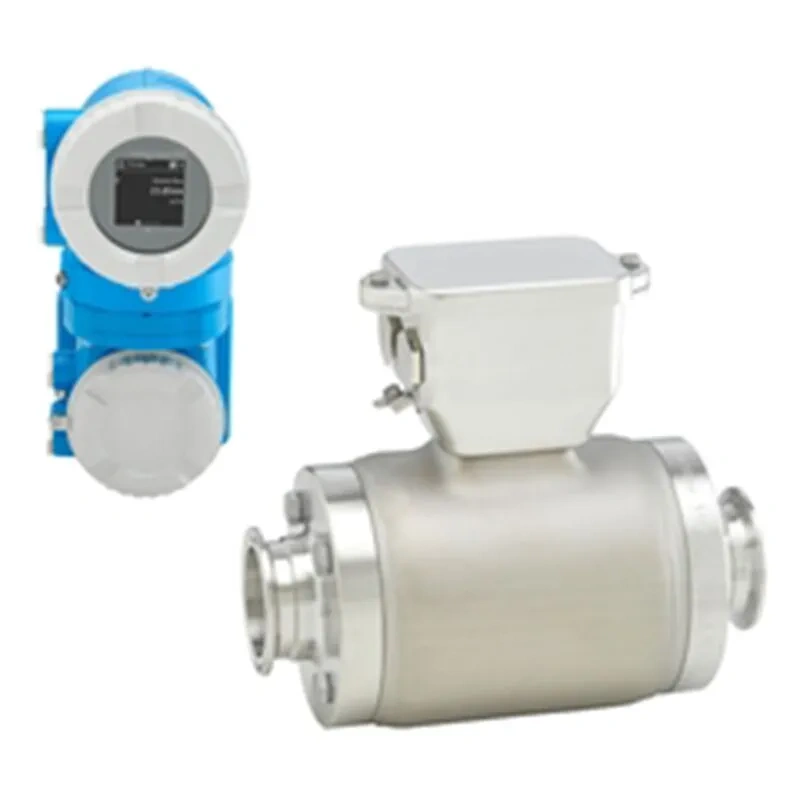

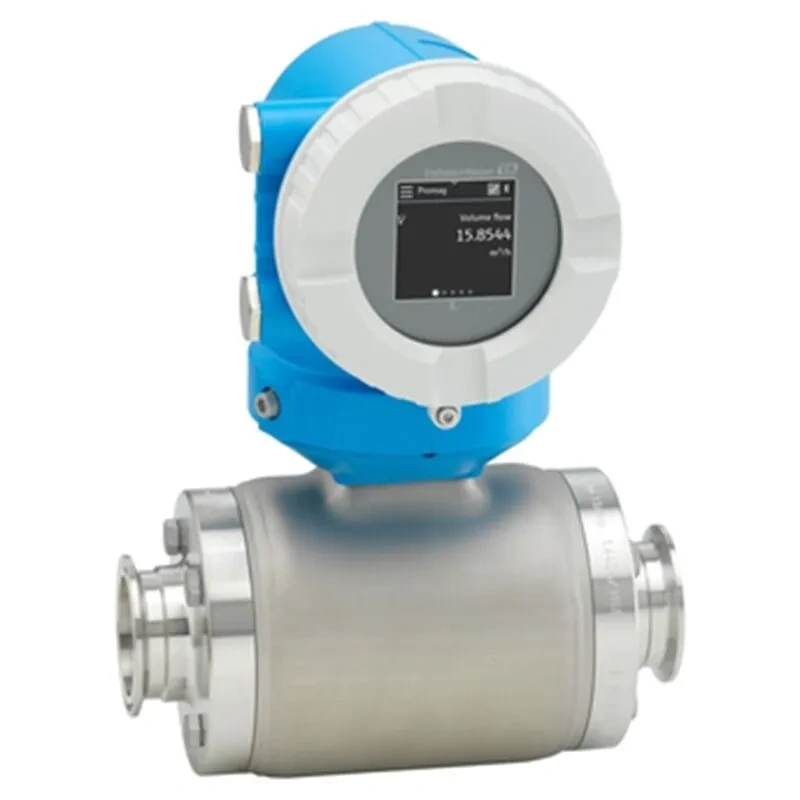

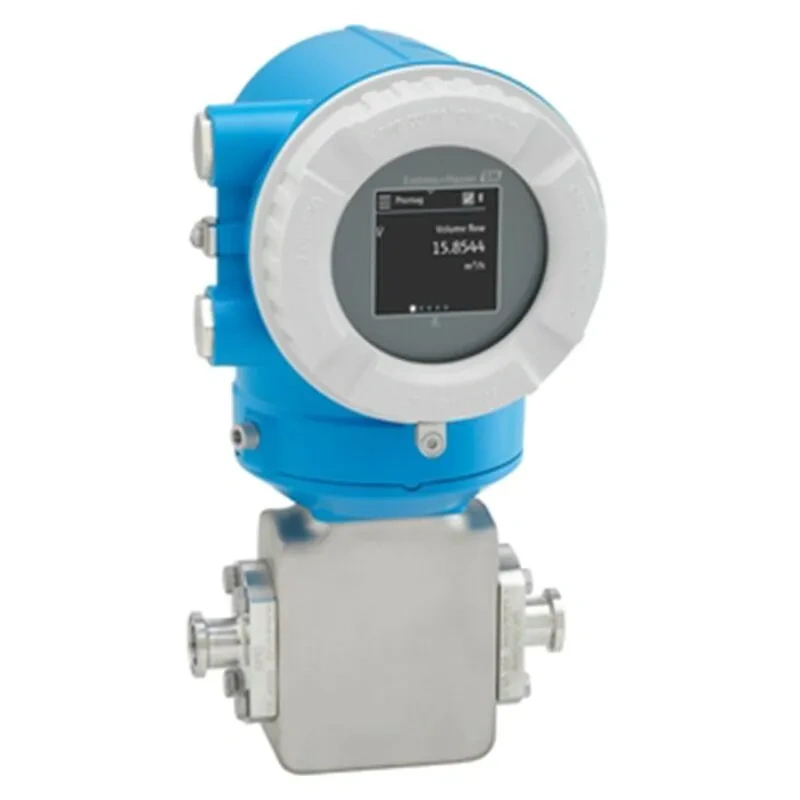

The Endress+Hauser Proline Promag H 10 is the go-to specialist for basic hygienic applications. It combines advanced electromagnetic measuring principles with a modern, easy-to-use operation concept. Whether via its auto-rotating touch screen or the wireless SmartBlue App, the Promag H 10 is designed to save time during commissioning and maintenance while ensuring full sanitary compliance.
Max. Error: Standard ±0.5% o.r., Optional ±0.2% o.r.
Temperature Range: –20 to +150 °C (–4 to +302 °F).
Protection: IP66/67, Type 4X enclosure.
Connectivity: HART, Modbus RS485, IO-Link.
Digital Operation: 2.4″ LCD touch display & Bluetooth connectivity.
Modern Operation: Use your mobile device to configure and monitor the device via Bluetooth. No extra cables or software needed.
Cost-Effective Integration: Features IO-Link for simplified wiring and digital data access, perfect for small-to-medium scale automation skids.
Maintenance-Free: No moving parts and no pressure loss. The PFA liner is durable and resistant to aggressive CIP/SIP cleaning agents.
Reliable Compliance: Fully compliant with FDA, cGMP, 3-A, and EHEDG, ensuring the highest safety standards for food and life sciences.
Q1: How do I perform the initial setup of the Promag H 10?
A: The Promag H 10 offers an ultra-simple commissioning process. You can use the SmartBlue App via Bluetooth on your smartphone or tablet for guided parameterization, or use the local 2.4" touch screen with its auto-rotate function.
Q2: Does the Promag H 10 support digital integration for Industry 4.0?
A: Yes. In addition to HART and Modbus RS485, the Promag H 10 features IO-Link connectivity, making it a cost-effective choice for modern, digitally integrated hygienic processing skids.
Q3: Is the Promag H 10 resistant to aggressive cleaning agents?
A: Absolutely. It features a high-quality PFA liner and stainless steel housing that are fully CIP and SIP cleanable. The device also carries 3-A and EHEDG certifications for sanitary safety.
Q4: What is the measurement accuracy of this basic hygienic model?
A: The Promag H 10 provides a standard accuracy of ±0.5% o.r. For processes requiring higher precision, an optimized accuracy option of ±0.2% o.r. is available.
