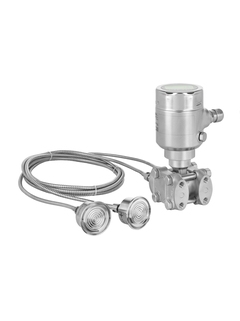

The Deltabar PMD63B is a premier high-precision differential pressure transmitter featuring an advanced aseptic hygienic metal sensor. Engineered specifically for the aggressive processing architectures of the Food & Beverage and Life Sciences sectors, it provides ultra-reliable hydrostatic level, volume, and mass flow measurement under volatile process temperatures ranging from -70°C to +250°C. As an experienced Endress+Hauser sourcing partner, Hanyu Zhilian International secures genuine instrumentation assets to preserve your batch integrity and eliminate measurement uncertainty.
| Technical Parameter | Specification Standards |
|---|---|
| Reference Measurement Accuracy | Standard configuration: up to plus or minus 0.075% of calibrated span |
| Process Temperature Boundaries | -70°C to +250°C (-94°F to +482°F) continuous service limits |
| Functional Safety Certification | SIL 2 / SIL 3 certified according to IEC 61508 standards |
| Hygienic Sanitary Approvals | Full compliance with EHEDG, 3-A Sanitary Standards, CoC ASME-BPE, and cGMP |
| Industrial Communication Protocols | HART, PROFIBUS PA, and ultra-fast PROFINET over Ethernet-APL architectures |
| Wireless Interface Security | Encrypted Bluetooth® wireless connection with integrated physical hardware lockdown switch |
The Deltabar PMD63B is heavily optimized for critical cleanroom and sanitary plant layouts. In large-scale pharmaceutical fermentation loops or food processing vessels, the instrument provides accurate hydrostatic leveling independent of foam blankets or internal agitator turbulence. For closed-loop pressure monitoring across sanitary filter lines, the PMD63B instantly identifies micro-pressure drops and mesh blockages under intense static line pressures, protecting system pumps and preventing batch contamination.
To secure maximum metrological stability, ensure the impulse lines or capillary systems are mounted free from binding friction and aligned away from direct external heat radiance. Leverage the internal setup wizard to fine-tune zero-point trims post-installation for immediate, field-validated operational readiness.
As a trusted international industrial automation distributor, Hanyu Zhilian International eliminates distribution roadblocks. We maintain strategic ex-stock reserves of Endress+Hauser process transmitters to fulfill urgent MRO facility overhauls and global EPC project designs. We offer expedited international logistics serving Europe, the Middle East, SE Asia, and the Russian market, fully supported by flexible direct corporate RMB (Yuan) payment handling to optimize cross-border transaction speed.
Q: What makes the PMD63B ideal for pharmaceutical tanks and bioreactors?
A: Its gap-free aseptic design, premium EHEDG/3-A sanitary certifications, and specialized ability to handle high static pressure layers with minimal differential spans make it perfect for high-purity tank level tracking and sanitary gas blanket controls.
Q: Can I deploy the PMD63B for sanitary filter monitoring?
A: Absolutely. It reliably tracks fine pressure drops across microfiltration loops and separator blockages under high static baseline loads, preventing filter blowouts and ensuring consistent product quality.
Q: Is the Bluetooth communication secure for pharmaceutical cleanrooms?
A: Yes. All Bluetooth communication between the transmitter and the SmartBlue application is fully encrypted. For high-security environments or strict regulatory zones, the wireless module can be physically deactivated via an internal hardware switch on the electronics board.
