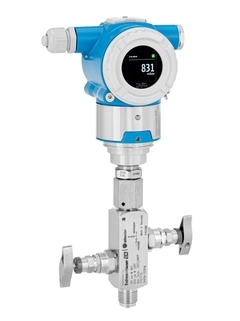

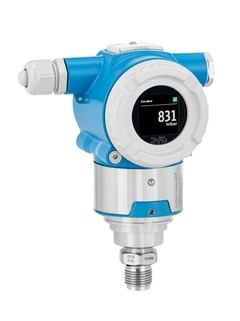

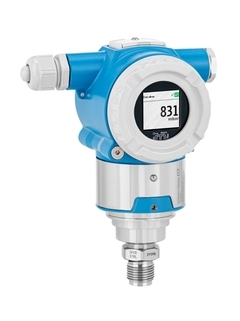

Cerabar PMP50 pressure transmitter with metal diaphragm, up to 400 bar, high accuracy, HART communication, ideal for industrial liquid and gas measurement.
The Cerabar PMP50 pressure transmitter is designed for reliable pressure measurement in liquids and gases, featuring a robust metal diaphragm sensor. Optimized for standard industrial applications, it delivers high accuracy, excellent long-term stability, and safe operation.

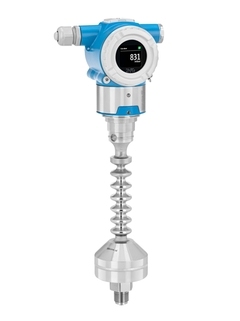

With support for high-pressure environments up to 400 bar and optional diaphragm seals for extreme temperatures up to 400°C, the PMP50 is suitable for demanding industrial processes. Its intuitive setup wizard and HART communication simplify commissioning, integration, and maintenance.
Key Features
Applications
Technical Specifications
|
Parameter |
Specification |
|
Model |
Cerabar PMP50 |
|
Measurement |
Gauge & Absolute Pressure |
|
Accuracy |
±0.065% / ±0.055% |
|
Output |
4–20 mA HART |
|
Power Supply |
10.5–35 V DC |
|
Process Temp |
-40°C to +125°C / up to 400°C (with seal) |
|
Ambient Temp |
-40°C to +85°C |
|
Pressure Range |
1 bar to 400 bar |
|
Turndown Ratio |
20:1 |
|
Overpressure Limit |
600 bar |
|
Materials |
316L, Alloy C, Gold |
|
Process Connection |
Thread, Flange |
|
Protection |
Industrial grade |
|
Communication |
HART |
|
Certifications |
ATEX, FM, IECEx, SIL |
Technical Highlights
Certifications
ATEX, FM, IECEx, SIL, NACE MR0103, NACE MR0175, EN10204-3.1
