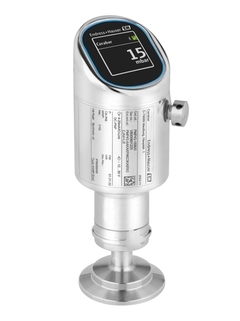

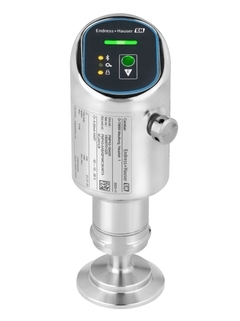

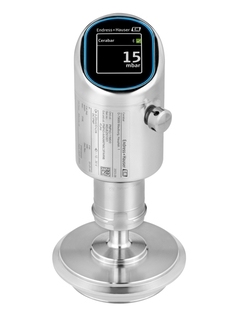

Cerabar PMP43 hygienic pressure transmitter with HART communication, high accuracy, IP69 protection, ideal for food, pharma and industrial applications.
The Cerabar PMP43 pressure transmitter is part of the Compact Line series, specially designed for hygienic applications. With a compact structure and proven measurement technology, it ensures accurate and reliable pressure and level measurement for liquids and gases.
Its small process connections and flexible installation options make it ideal for confined spaces, pipelines, process vessels, and storage tanks. Equipped with advanced diagnostics and HART communication, the PMP43 improves process safety, efficiency, and traceability.
Key Features
Applications
Technical Specifications
|
Parameter |
Specification |
|
Model |
Cerabar PMP43 |
|
Measurement |
Gauge & Absolute Pressure |
|
Accuracy |
0.1% (Standard), 0.075% (Platinum) |
|
Output |
4–20 mA, HART, IO-Link |
|
Power Supply |
11.5–45 V DC |
|
Process Temp |
-40°C to +200°C |
|
Ambient Temp |
-40°C to +85°C |
|
Pressure Range |
400 mbar to 100 bar |
|
Protection |
IP69 |
|
Material |
316L Stainless Steel |
|
Process Connection |
Thread, Flange, Tri-Clamp |
|
Certifications |
ATEX, IECEx, FM, EHEDG, 3A |
Certifications
ATEX, FM, IECEx, EHEDG, 3A, NSF/ANSI 61, NACE MR0175
