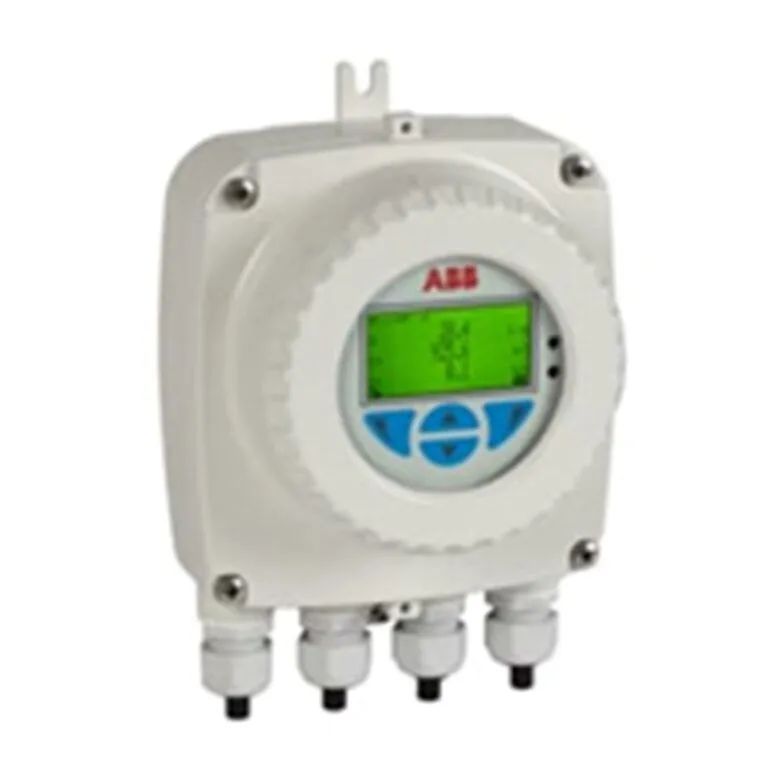

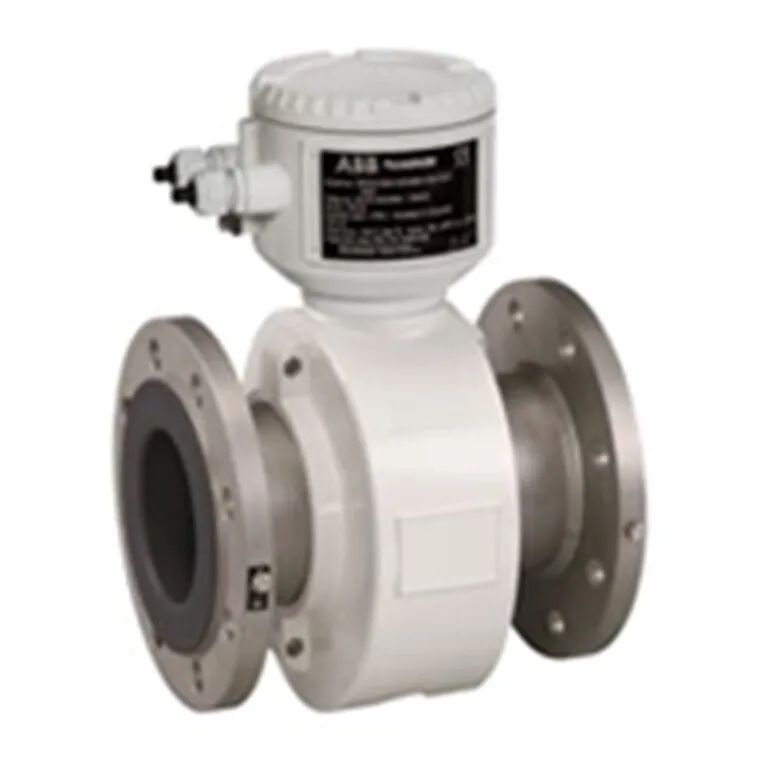

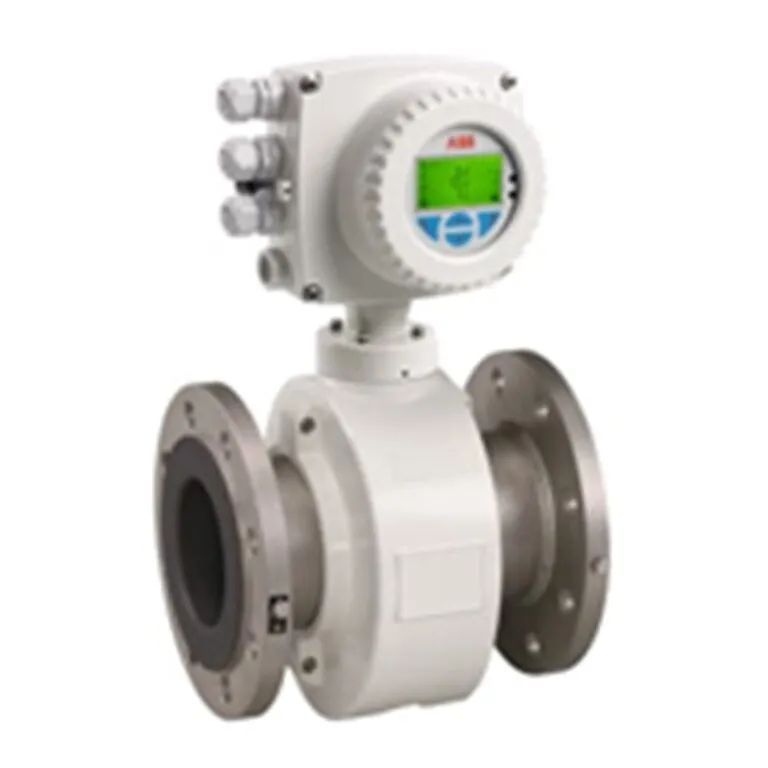

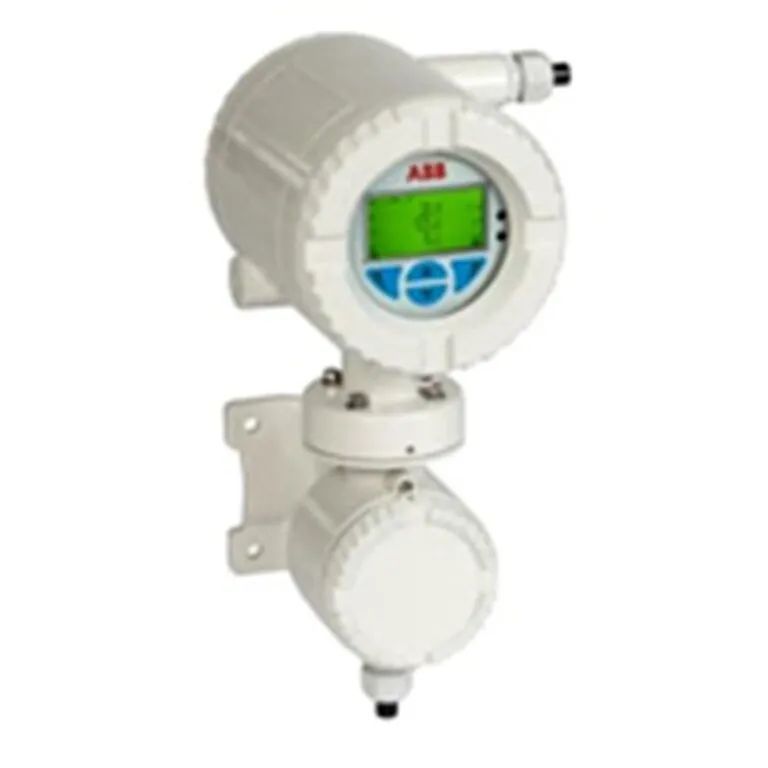

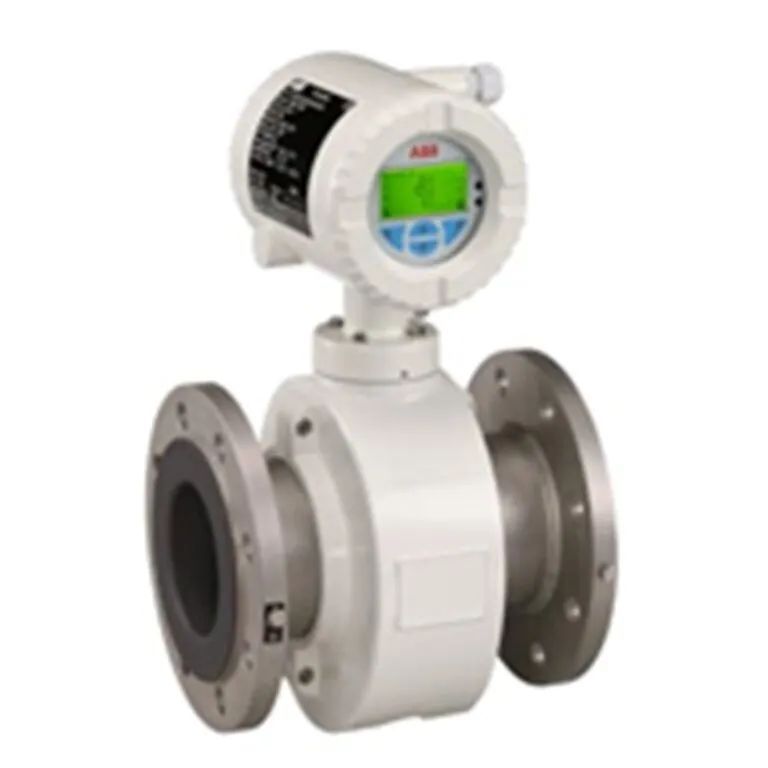

ABB Electromagnetic Flowmeter ProcessMaster FEW630

Product Details

Description

ProcessMaster FEW630 – The first choice for all water industry applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

• Real-time diagnostic keep your process up and running
  – Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
  – Clear text messages simplify troubleshooting
• In-built noise/grounding check
  – Verify the installation is correct from day one
  – Checks for proper grounding which is fundamental to an accurate flow measurement
• In-built verification for highest confidence in your flow measurement
  – Checking for sensor and transmitter integrity
  – No need to remove the flowmeter from the process
• Simplicity of operation
  – Automatic self-configuration sequence
  – Incredibly easy to work with
• Ethernet IP communication

– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration

Specification

General specifications:

• Measuring value error
  – Standard 0.4 % of rate, option for 0.3% and 0.2 % of rate
• Nominal diameter
  – DN 25 to 3000 (1 to 120 in.)
• Process connection
  – FlangeFlange based on ISO, ASME, JIS, AS2129 table D, E, AWWA C207
• Nominal pressure
  – PN 6 to 40; ASME CL 150, 300 JIS 5K, 20K, AS PN16, 35, AWWA C207 Class B, D, E
• Lining
  – Hard rubber
• IP rating
  – IP67, IP68, NEMA4x
• Fluid temperature
  – min.: -5°C (23 °F) max.: 90 °C (194 °F)
• Communication
  – HART
  – PROFIBUS DP, Profibus PA
  – Modbus RTU, Modbus TCP
  – Ethernet IP, Profinet, Webserver
• Ex approvals
  – ATEX, IECEx, cFMus
• Process diagnostics
  – Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
