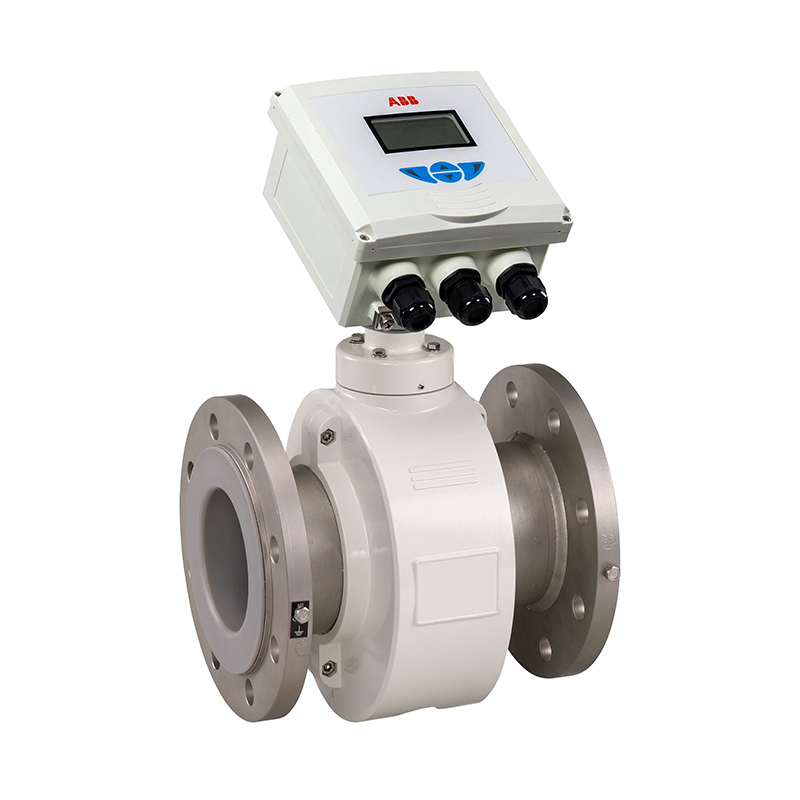

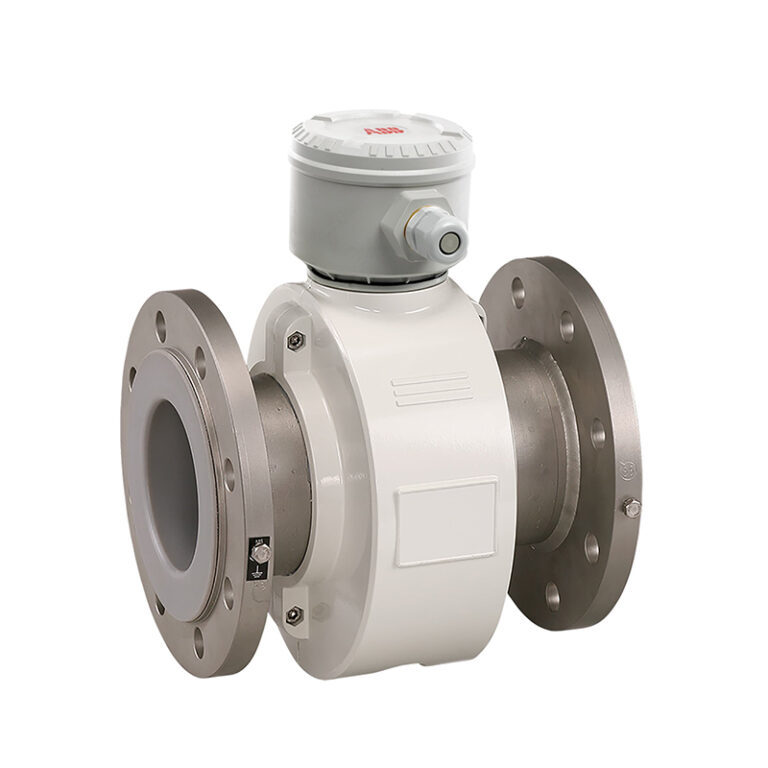

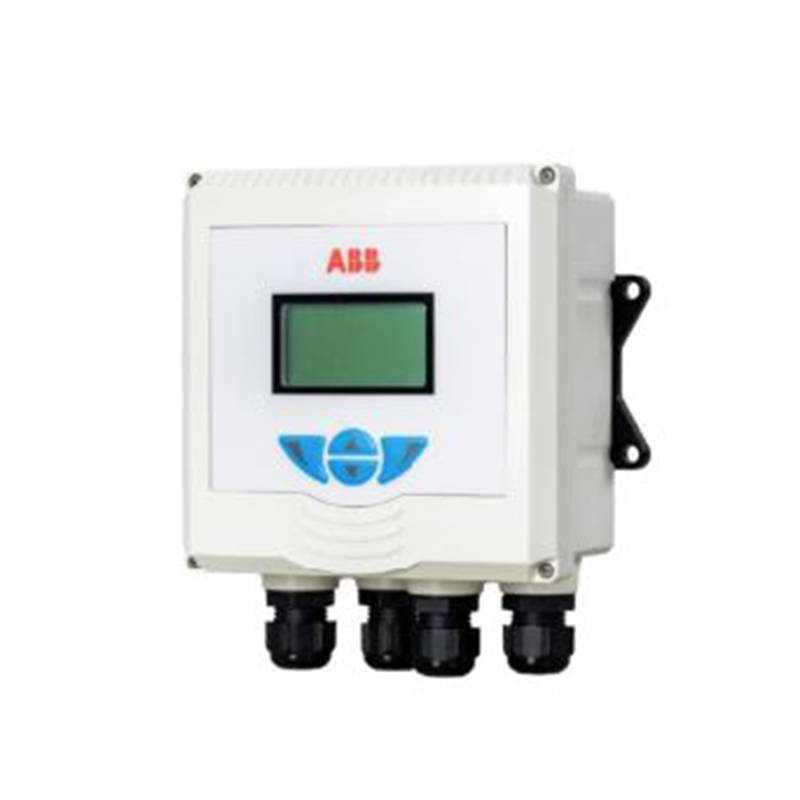

ABB Electromagnetic Flowmeter ProcessMaster FEP620

Product Details

Description

ProcessMaster Water FEP620 – Ideally suited for standard applications in chemical, power, oil & gas, pulp & paper and metals & mining industries.
A robust Flowmeter for harsh environmental conditions, featuring all functions required – no more and no less.

• Sensor Coil and electrode diagnostic keep your process up and running
  – Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
  – Clear text messages simplify troubleshooting

• In-built noise/grounding check
  – Verify the installation is correct from day one
  – Checks for proper grounding which is fundamental to an accurate flow measurement

• In-built verification for highest confidence in your flow measurement
  – Checking for sensor and transmitter integrity
  – No need to remove the flowmeter from the process
• Sensor Memory Technology ensures Simplicity of operation
  – Automatic self-configuration sequence
  – Incredibly easy to work with

• HART as a Standard

• Option for Modbus RTU communication
  – For more Data from the Device and the process
  – 4-20mA and Modbus in prallel at the same time

Specification

General specifications:

• Measuring value error
  – Standard 0.4 % of rate, option for 0.3% of rate
• Nominal diameter
  – DN 3 to 600 (1/10 to 24 in.)
• Process connection
  – Flange based on DIN-EN, ASME
• Nominal pressure
  –PN 10 to 40; ASME CL 150, 300
• Lining
  – PTFE, ETFE,PFA, Linatex
• IP rating
  – IP67, IP68, NEMA4x
• Fluid temperature
  – min.: -5°C (23 °F) max.: 130 °C (266 °F)
• Communication
  – 4…20mA / HART
  – Modbus RTU
  – 4…20mA in parallel to Modbus
• Ex approvals
  – ATEX, IECEx, cFMus in preparation
• Process diagnostics
  – Empty pipe, Total Filling, Electrode-Status, Grounding/Noise
