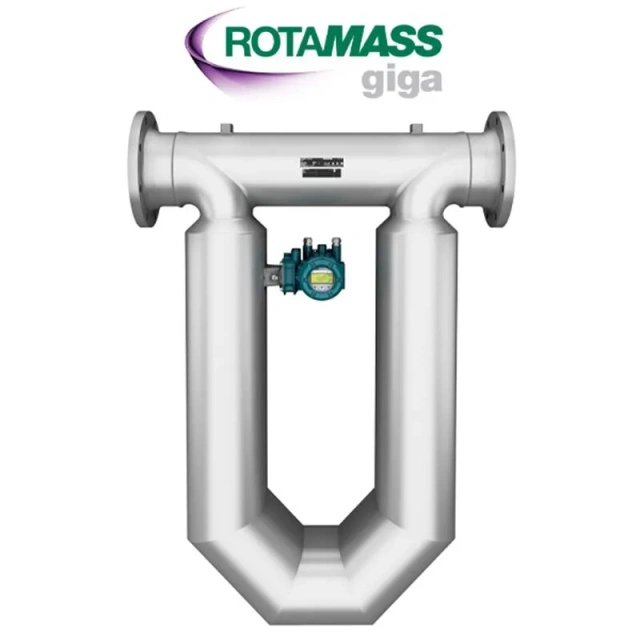

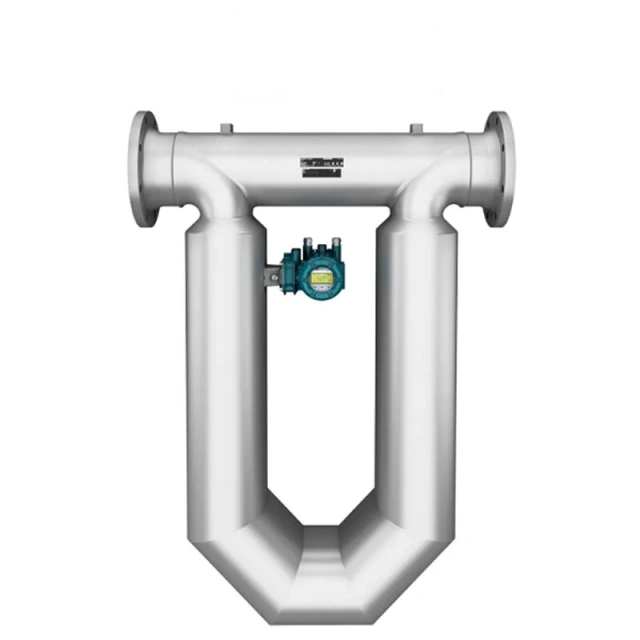

The Yokogawa ROTAMASS Giga is engineered to deliver superior performance where volume and scale matter most. Designed for high flow rates, it offers best-in-class accuracy even at the low end of its measuring range. This ensures maximum flexibility from initial engineering to final field operation, reducing total cost of ownership through long service life and minimal maintenance.
Leverage the full power of Total Insight (TI) to manage your high-flow assets. The ROTAMASS Giga provides multivariable data including mass flow, density, and temperature to calculate:
Looking for a different specialized solution? Select your requirement below:
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Model | Rotamass Nano | Rotamass Prime | Rotamass Hygienic | Rotamass Supreme | Rotamass Intense | Rotamass Giga |
|---|---|---|---|---|---|---|
| Key Feature | Ultra-Low Flow | General Purpose | Food & Pharma | Critical/Extreme | High Pressure | High Flow Rate |
| Liquid Accuracy | ± 0.1 % | ± 0.1 % | ± 0.1 % | ± 0.1 % | ± 0.1 % | ± 0.1 % |
| Gas Accuracy | ± 0.50 % | ± 0.35 % | ± 0.35 % | ± 0.35 % | ± 0.50 % | ± 0.35 % |
| Temp. Range | -50 to +260 °C | -70 to +200 °C | -70 to +140 °C | -196 to +350 °C | -70 to +150 °C | -70 to +350 °C |
| Max Pressure | 460 bar | 100 bar | 40 bar | 250 bar | 700 bar | 180 bar |
| Line Sizes | DN15 - DN40 | DN15 - DN125 | DN25 - DN80 | DN15 - DN125 | 1/4" - 2" | DN100 - DN250 |
| Wetted Parts | 316L / Alloy C-22 | 316L | 316L | 316L / Alloy C-22 / 304 | 316L / Alloy C-22 / 304 | 316L / Alloy C-22 |
| Certificates | NTEP, Marine | NTEP, Marine | 3-A, EHEDG | NTEP, Marine | NTEP, Marine | NTEP, Marine |
