Why is the dual-bent tube configuration critical for low-flow Coriolis meters?

Unlike unstable single-tube designs that suffer from high zero-point drift, the dual-bent tube architecture of the Rotamass Nano physically balances out external pipe vibration and temperature-induced mechanical stress. This mechanical decoupling results in a vastly superior signal-to-noise ratio necessary for repeatable micro-flow tracking.

Is the Rotamass Nano approved for high-pressure gas applications?

Yes, standard models support process pressures up to 285 bar, with high-pressure specialty configurations rated up to 460 bar (6672 psi), making it fully compliant for hydrogen, chemical injection, and specialized gas dosing.

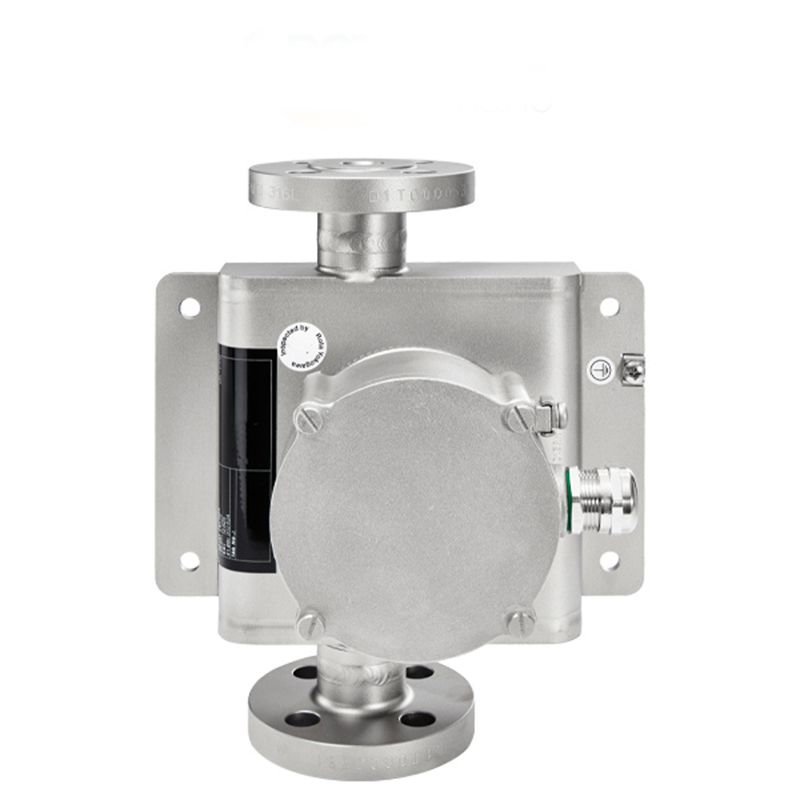

Yokogawa™ Rotamass Nano Genuine Coriolis Mass Flow Meter (SIL 2 Certified)

Name: Yokogawa™ Rotamass Nano Genuine Coriolis Mass Flow Meter (SIL 2 Certified)
Brand: Hanyu Zhilian International
Availability: InStock
Rating: 5 (1 reviews)

Description

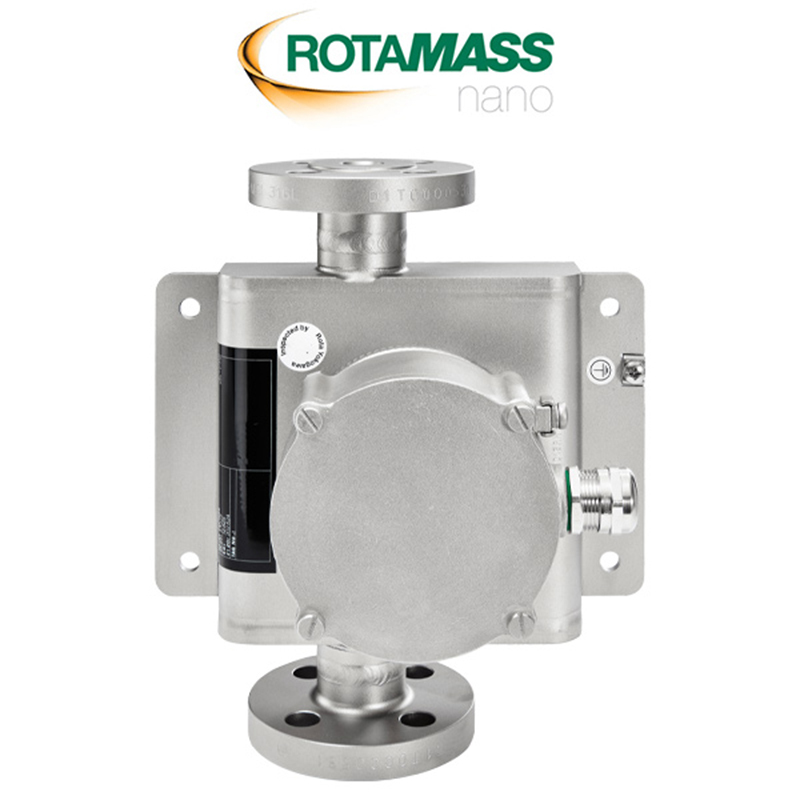

Yokogawa Rotamass Nano Coriolis Mass Flow Meter

Micro-Flow Mass and Density Tracking via Dual-Bent Tube Architecture

The Yokogawa Rotamass Nano stands as the industry's smallest dual-bent tube Coriolis mass flow meter, explicitly designed to eliminate the measurement instability common in low-flow processing loops. Where traditional single-tube meters fail due to pipe vibration and fluctuating ambient thermal stress, the Rotamass Nano utilizes a balanced dual-tube geometer to achieve robust zero-point stability. For process engineers optimizing complex multi-variable plants with integrated Endress+Hauser field instrumentation networks, the Rotamass Nano provides an ideal specialized micro-flow expansion capable of tracking real-time mass, density, and temperature simultaneously.

Powered by the advanced Total Insight (TI) electronic platform, this transmitter fleet goes beyond raw data. It delivers ongoing inline diagnostics, concentration calculations for mixable/unmixable fluids, and predictive maintenance alerts to prevent unpredicted line shutdowns in critical chemical and pilot plant infrastructure.

🔧 Technical Highlights & Process Value

Engineered Dual-Bent Tube Design: Mechanically cancels out industrial plant background noise, delivering a highly repeatable signal-to-noise ratio at fractional flow rates.
Total Insight Lifecycle Diagnostics: Built-in concentration matrices determine net volume flow, real-time fluid viscosity for Newtonian liquids, and exact heating value scaling for gases.
High Pressure & High Safety Rating: Standard design tolerates operational process limits up to 285 bar (with specialty upgrades scaling to 460 bar / 6672 psi). Standardized with full SIL 2 (SIL 3 redundant) functional safety credentials.
NTEP Custody Transfer Ready: Features certified calibration boundaries, ensuring the hardware complies with strict international fiscal billing and trade-related allocation mandates.

📋 Yokogawa Rotamass Product Line Application Matrix

To assist your engineering team in choosing the correct sensor geometry, review the comprehensive Rotamass specification matrix across standard processing fluids and nominal pipeline environments:

Operational Metric	Rotamass Nano	Rotamass Prime	Rotamass Hygienic	Rotamass Supreme	Rotamass Intense	Rotamass Giga
Core Application	Micro-flow dosing / Labs	General process liquids	Sanitary / Food & Pharma	High-end process control	Extreme high-pressure	High-volume bulk lines
Liquid Accuracy	plus or minus 0.1%	plus or minus 0.1%	plus or minus 0.1%	plus or minus 0.1%	plus or minus 0.1%	plus or minus 0.1%
Gas Accuracy	plus or minus 0.50%	plus or minus 0.35%	plus or minus 0.35%	plus or minus 0.35%	plus or minus 0.50%	plus or minus 0.35%
Liquid Density Precision	plus or minus 0.5 g/l	plus or minus 0.5 g/l	plus or minus 0.5 g/l	plus or minus 0.5 g/l	plus or minus 0.5 g/l	plus or minus 2.0 g/l
Process Temp. Range	-50°C to +260°C	-70°C to +200°C	-70°C to +140°C	-196°C to +350°C	-70°C to +150°C	-70°C to +350°C
Max. Pressure Limit	285 bar / 460 bar *1	100 bar	40 bar	100 bar / 250 bar *1	Up to 700 bar	100 bar / 180 bar *1
Nominal Line Sizes	DN15 to DN40 (1/4" to 1-1/2")	DN15 to DN125 (3/8" to 5")	DN25 to DN80 (1" to 3")	DN15 to DN125 (3/8" to 5")	9/16" or 3/4" AutoClave	DN100 to DN250 (4" to 10")
Wetted Metallurgy	Alloy C-22 / 316L SS	316L Stainless Steel	316L Stainless Steel	316L SS / Alloy C-22	316L SS / Alloy C-22	316L Stainless Steel
Safety / Approvals	SIL 2, NTEP, ATEX, IECEx	SIL 2, NTEP, ATEX, IECEx	3-A, EHEDG, SIL 2, NTEP	SIL 2, NTEP, INMETRO	SIL 2, NTEP, ATEX, IECEx	SIL 2, NTEP, INMETRO

Note: *1 Denotes specialty high-pressure or heavy-wall option codes. For complete process flange patterns (EN, ASME, JPI, JIS) and threaded interface options, please cross-reference the official General Specification sheet under our technical download repository.

🎯 Typical Process Plant Deployments

Chemical & Catalyst Dosing: High-precision chemical injection skids, R&D laboratory scale reactors, and micro-metering pump validation systems.
High-Tech Manufacturing: Vacuum thin-film chemical vapor deposition (CVD) coatings, precision industrial paint lines, and calibration bench metrology.
Refining & Off-Shore: High-pressure anti-corrosion chemical injection subsea skids where long-term sensor calibration stability is mandatory.

📦 Commercial Procurement Logistics & Engineering Support

As an international industrial automation supplier with a decade of MRO sourcing experience, Hanyu Zhilian International resolves standard manufacturer procurement delays. We maintain strategic supply-chain alliances to deliver original Yokogawa Rotamass hardware or high-performance replacements within an accelerated 4 to 6 weeks delivery framework. All shipments are fully backed by 1-to-1 dedicated engineer alignment to verify your sizing sheets and options codes prior to build, with direct corporate RMB (Yuan) payment handling available to reduce cross-border clearing friction.

👉 Commercial RFQ Dispatch: Need an accurate project budget? Send over your processing fluid data sheets today. Our engineering team provides official, binding commercial quotes within 2 business hours.

❓ Frequently Asked Technical Questions

Q: What makes the dual-tube configuration superior to single-tube designs for low flows?
A: Single-tube meters suffer severely from ambient temperature shifts and pipe stresses, causing the zero point to drift. The Rotamass Nano's dual-bent design creates a closed, balanced internal tuning fork loop that ignores outside plant vibration, locking in high accuracy even at the lowest flow scale boundaries.

Q: Can the Rotamass Nano handle gaseous media or ambient temperature spikes?
A: Yes. The meter is thoroughly calibrated for low-density gas, high-pressure gas, and unmixable liquid-gas mixtures. It handles fluid process process temperatures from -50°C up to +260°C with zero degradation in signal precision.
