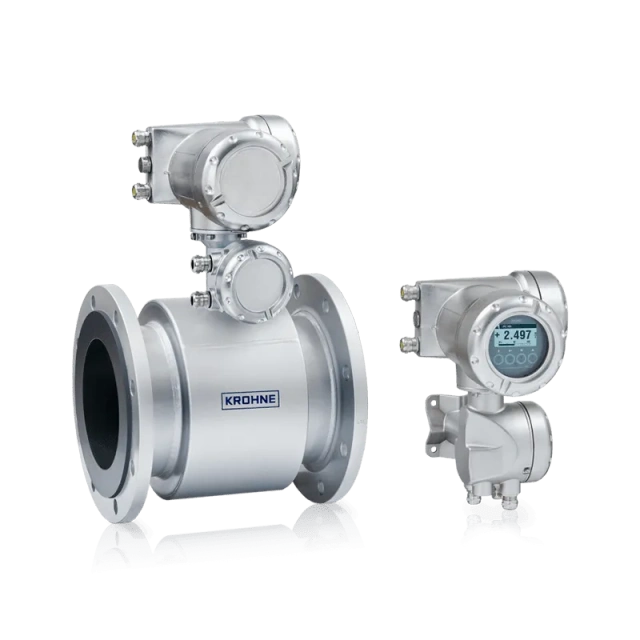

KROHNE TIDALFLUX 2300 Electromagnetic flowmeter

Product Details

Description

The TIDALFLUX 2300 is an electromagnetic flowmeter (EMF) with a patented, capacitive level measurement for use in partially filled pipes (up to DN1600 / 64”). The meter is the ideal solution for flow measurement of municipal or industrial wastewater in pressureless transport lines. However, the EMF is also suitable for measurement of effluent brine from dredging, mining or sea/well water injection applications. Unlike open channel systems (Venturi, V-notches etc.) the inline flowmeter is a closed measuring solution without obstructions and with a much better accuracy at lower total costs of ownership.

The measuring tube of the TIDALFLUX 2300 comes with a polyurethane (PUR) liner for abrasion and chemical resistance. Its smooth surface prevents build-up of fat and other deposits which minimises the need for regular cleaning. For direct burial installation or applications in areas that can be partially flooded, the meter can be ordered as IP68 /NEMA 6P rated version. Due to the presence of flammable hydrogen sulphide (H2S) in many wastewater applications, the EMF also has ATEX / IECEx zone 1 approval. The TIDALFLUX 2300 comes with extensive diagnostics. A full on-site verification of the flowmeter without process interruption can be carried out using the OPTICHECK service tool.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Bi-directional flow measurement over a wide dynamic range
• Closed measurement solution with patented integrated non-contact level measurement
• Designed for effluent and slurries in gravity pipelines / sewers
• Chemically and abrasion resistant PUR liner
• Accuracy: ±1% of measured value (MV)
• Electrodes not in contact with floating deposits
• Optional version for direct burial installation and flooded areas (IP68)
• Standard factory calibration, no on-site calibration required
• Extensive flowmeter and process diagnostics which exceed the NE 107 requirement
• Also for use in hazardous areas zone 1
• On-site verification of flowmeter with OPTICHECK service tool

Specifications

Depending on selected device configuration

General information

Operating conditions

Materials

Process connections

Approvals/Standards

Communication
