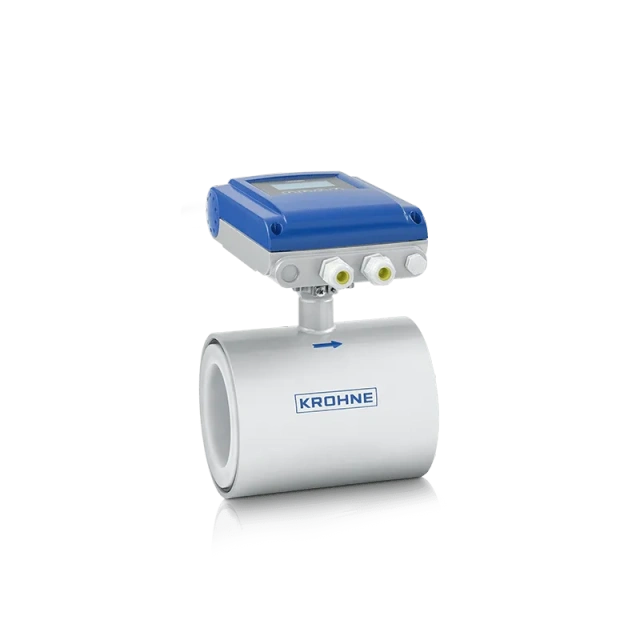

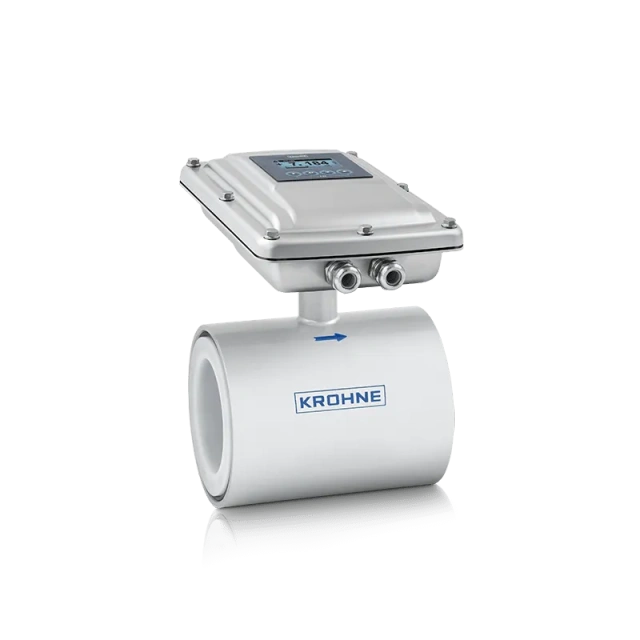

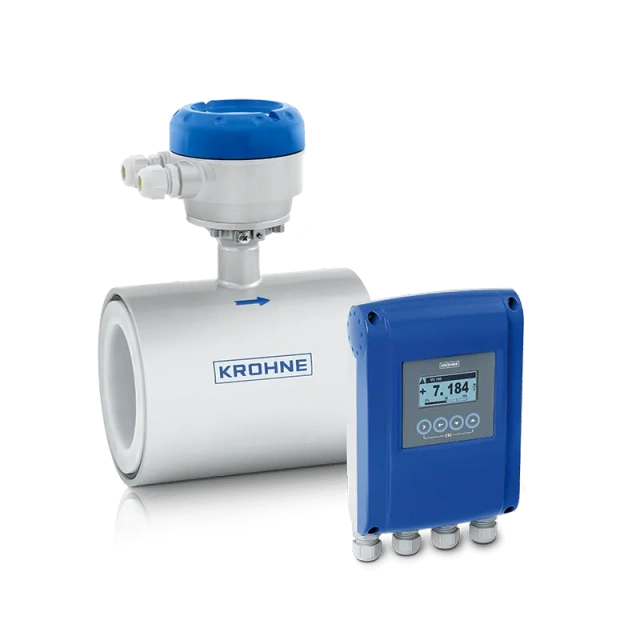

KROHNE OPTIFLUX 1100 Electromagnetic flowmeter

Product Details

Description

The OPTIFLUX 1100 is a cost-effective electromagnetic flowmeter (EMF) with lightweight wafer-style design. The meter is an economical solution for general applications with conductive liquids (≥5 μS/cm) and lower solid content (up to 10%). Unlike the basic device OPTIFLUX 1050, the OPTIFLUX 1100 offers a better accuracy. It is suitable for use in various industries – from water, wastewater and mobile applications to machine building (OEM), agriculture and utilities to firefighting.

The OPTIFLUX 1100 features a reinforced PFA liner and Hastelloy® electrodes that guarantee excellent chemical resistance and a large temperature range (up to +120°C / +248°F). The EMF has no internal moving parts, does not require maintenance and is insensitive to vibrations. A full on-site verification of the OPTIFLUX 1100 without process interruption can be carried out using the OPTICHECK service tool.

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Bi-directional flow measurement over a wide dynamic range
• Lightweight and compact wafer-style (“sandwich”) design for space saving installation
• Reinforced PFA liner: Smooth surface, excellent chemical resistance
• Pipe cross-section without restrictions for slurries with non abrasive solid particles
• Standard measurement accuracy: ±0.3% or ±1 mm/s of measured value (MV)
• Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
• No periodical maintenance needed
• On-site verification of flowmeter with OPTICHECK service tool

Specifications

Depending on selected device configuration

General information

Operating conditions

Materials

Process connections

Approvals/Standards

Communication
