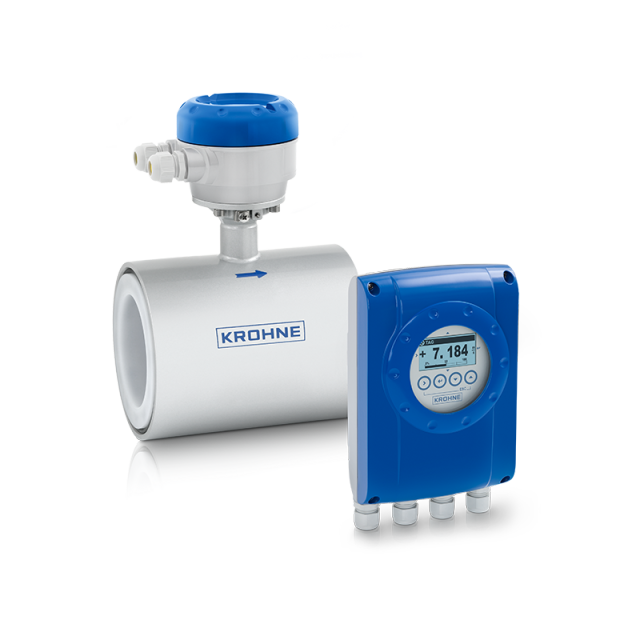

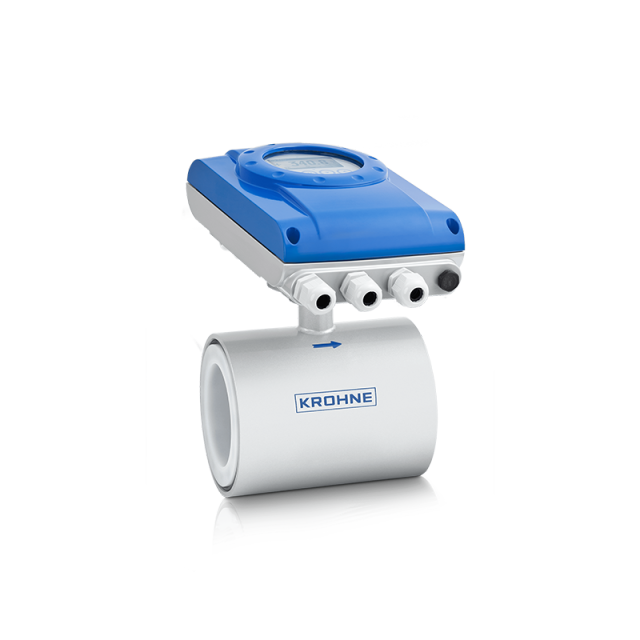

KROHNE OPTIFLUX 1050 Electromagnetic flowmeter

Product Details

Description

The OPTIFLUX 1050 is a cost-effective electromagnetic flowmeter (EMF) with lightweight wafer-style design. The meter is a very economical solution for simple applications with conductive liquids (≥ 5 μS/cm) involving low solid content (up to 10%). This particularly includes applications in water, wastewater, mobile applications, agriculture or firefighting where extremely high accuracy, extensive diagnostics or a wide range of communication options are not a priority. The extra isolation of the electronic device and housing makes this EMF also suitable for use in areas with extreme humidity.

The OPTIFLUX 1050 features a reinforced PFA liner and Hastelloy® electrodes that guarantee excellent chemical resistance and a large temperature range (up to +120°C / +248°F). The EMF has no internal moving parts, does not require maintenance and is insensitive to vibrations. It comes with current output (incl. HART®) or active pulse/frequency output and Modbus. A full on-site verification of the EMF without process interruption can be carried out using the OPTICHECK service tool.

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

• Bi-directional flow measurement over a wide dynamic range
• Lightweight and compact wafer-style (“sandwich”) design for space saving installation
• Reinforced PFA liner: Smooth surface, excellent chemical resistance
• Full bore design: No moving parts, no wear, no pressure loss
• Standard measurement accuracy: ±0.5% or ±1 mm/s of measured value (MV)
• No maintenance required
• On-site verification of flowmeter with OPTICHECK service tool

Specifications

Depending on selected device configuration

General information

Operating conditions

Materials

Process connections

Approvals/Standards

Communication

Accuracy
