Discover the Proline Promag H 300 electromagnetic flowmeter. Dedicated to food, beverage, and life sciences. Features PFA liner, Heartbeat Technology, and IP69 protection. Accuracy up to ±0.2%.

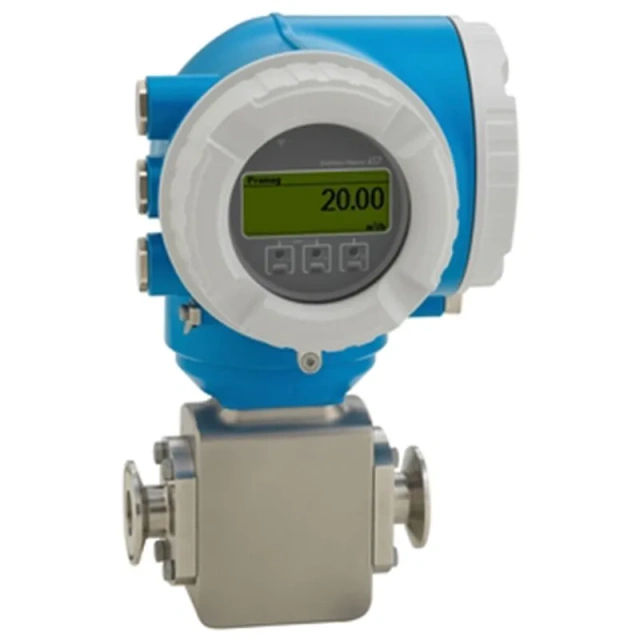

The Endress+Hauser Proline Promag H 300...
The Endress+Hauser Proline Promag H 300 is the specialist for hygienic applications requiring high precision and robust performance. Designed for the Food & Beverage and Life Sciences industries, this electromagnetic flowmeter offers a compact design without compromising on diagnostic depth or connectivity.
| Feature | Specification |
| Max. Error | ±0.2% o.r. (Optional) / ±0.5% o.r. (Standard) |
| Diameter Range | DN 2 to 150 (1/12 to 6") |
| Process Temp. | –20 to +150 °C (–4 to +302 °F) |
| Liner Material | PFA (FDA, cGMP compliant) |
| Protection Class | IP66/67, Type 4X, and IP69 |
Seamless Integration: Supports numerous I/Os and fieldbuses including PROFINET over Ethernet-APL and OPC-UA for Industry 4.0 readiness.
Maintenance-Free: No moving parts and no pressure loss, ensuring high energy efficiency and low total cost of ownership.
Advanced Diagnostics: Integrated Heartbeat Technology provides continuous self-monitoring and traceable verification without process interruption.
User-Friendly Interface: Direct access via WLAN or the 4-line backlit display with optical touch control.
Q: Is the Promag H 300 suitable for CIP and SIP cleaning?
A: Yes, the Promag H 300 is specifically designed for hygienic applications. It features a PFA liner and stainless steel sensor housing that are fully resistant to Clean-in-Place (CIP) and Sterilization-in-Place (SIP) processes, ensuring compliance with 3-A and EHEDG standards.
Q: What is the advantage of Heartbeat Technology in this flowmeter?
A: Heartbeat Technology allows for continuous self-diagnostics and device verification without process interruption. It provides traceable data for ISO 9001 compliance and significantly reduces maintenance costs by extending calibration cycles.
Q: Can I access the Promag H 300 data wirelessly?
A: Absolutely. The Proline 300 transmitter has an integrated WLAN server. You can use any smartphone, tablet, or laptop to perform wireless configuration, maintenance, and data retrieval without needing additional cables or software.
Q: What digital protocols are supported for Industry 4.0?
A: The Promag H 300 supports a wide range of industrial protocols, including PROFINET, EtherNet/IP, Modbus RS485, and OPC-UA. It is also ready for the latest Ethernet-APL technology for high-speed data transmission in process automation.
