Endress+Hauser Micropilot FMR67B 80GHz Radar Level Transmitter | Non-Contact Solids Level Measurement for High Silos & High Temperature

Applications

Micropilot FMR67B is a member of the new generation 80 GHz radar level transmitter family. It provides continuous non-contact level measurement for demanding bulk solids applications, even at high temperatures.

With a built-in operating wizard, it guides users easily through commissioning, functional safety and verification tests, making operation extremely convenient.

Its small beam angle makes it especially suitable for installation in narrow silos.

Featuring Heartbeat Technology, it enables online self-verification and self-monitoring, detects abnormal conditions early, improves process safety and increases productivity.

Micropilot FMR67B is designed for level measurement in free space, with a maximum measuring range of 125 m. It delivers excellent focusing performance even in tanks with internal obstacles.

• Process connection: Flange
• Process temperature: –40...+450 °C (-320...+842 °F)
• Process pressure: –1...+160 bar (-14.5...+2320.6 psi)
• Maximum range: 125 m (410 ft)
• Accuracy: ±3 mm (0.12 in)
• Frequency: W‑band 80 GHz
• Certified to international Ex standards, SIL, with 5‑point or 10‑point factory calibration

Benefits

• Intuitive user interface with guided commissioning and verification wizard for simple operation
• Heartbeat Technology for online self‑monitoring, self‑verification and self‑diagnostics to increase productivity
• Safety‑oriented design developed in accordance with IEC 61508
• Digital communication for easy integration into asset management systems
• Small beam angle and intelligent signal evaluation enable reliable measurement even with internal tank installations

Measuring Principle

Radar for Solids

Features / Applications

Reliable, non‑contact level measurement for high silos, bunkers or stockpiles, especially with many installations, long measuring ranges and heavy buildup.

Features

Heartbeat Verification + Monitoring, SIL 2/3 according to IEC 61508,

Bluetooth® commissioning, operation and maintenance with SmartBlue App,

HistoROM, RFID TAG for easy identification

Very narrow beam angle, Purge air connection, Alignment device

Power / Communication

2‑wire (HART / PROFIBUS PA)

PROFINET with Ethernet‑APL

Bluetooth® wireless technology

Frequency

W‑Band (~80 GHz)

Antenna

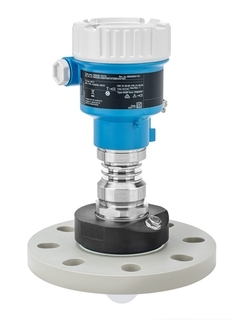

2" / 50 mm drip‑off, PTFE

3" / 80 mm flush, PTFE

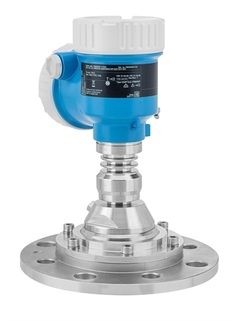

2.6" / 65 mm horn antenna, 316L

Accuracy

±3 mm (0.12 in)

Ambient Temperature

-40 … +85 °C (-40 … +185 °F)

Process Temperature

-40 … +450 °C (-40 … +842 °F)

Process Pressure (absolute) / Maximum Overpressure

Vacuum ... 160 bar (2320 psi)

Wetted Parts

Horn antenna: 316L / 1.4404, Al₂O₃ (ceramic), graphite

Flush / Drip‑off antenna: PTFE

Process Connection

Flange:

Standard or UNI DN80 ... DN250

Maximum Measuring Distance

125 m (410 ft)

Communication

4...20 mA HART

Additional analog or switch output

PROFIBUS PA

PROFINET with Ethernet‑APL

Bluetooth® wireless technology and app (optional)

Certificates and Approvals

IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex,

INMETRO Ex, NEPSI Ex, UK Ex

Safety Certification

SIL2, SIL3

Design Approvals

Acceptance test certificate 3.1, EN10204

NACE MR0175 / ISO 15156

Declaration of Conformity ASME B31.3

CRN approval

Hygienic Approvals

EU Food Contact Material (EC) 1935/2004

US Food Contact Material FDA CFR 21

Marine Approvals

ABS, LR, BV, RINA, DNV

Options

Display, Customized settings,

App 'SmartBlue' for commissioning and operation via Bluetooth

Heartbeat for batch detection; Gas‑tight implementation;

Overvoltage protection; PWIS free
