Discover the Proline Promag H 100. An ultra-compact electromagnetic flowmeter for hygienic applications. Multivariable measurement of flow, temperature, and conductivity with IP69 protection.

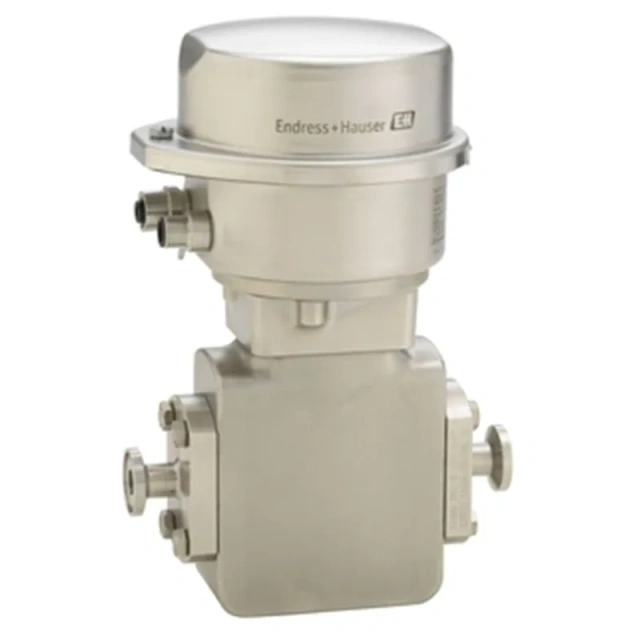

The Endress+Hauser Proline Promag H 100 is the ultimate specialist for space-saving hygienic applications. Featuring an ultra-compact transmitter, it delivers full functionality on the smallest footprint. It is dedicated to demanding processes in the Food & Beverage and Life Sciences industries where multivariable measurement (flow, temperature, and conductivity) is required in tight installation spaces.
Measuring Principle: Electromagnetic
Accuracy: Standard ±0.5% o.r., Optional ±0.2% o.r.
Medium Temperature: –20 to +150 °C (–4 to +302 °F)
Wetted Materials: PFA Liner; Electrodes: 316L, Alloy C22, Tantalum, Platinum.
Power Supply: DC 20 to 30 V.
Space-Saving Design: Full multivariable functionality on an ultra-compact footprint, perfect for modular skid integration.
Integrated Web Server: Enables time-saving local operation and diagnostics via any web browser without additional tools.
Process Reliability: Heartbeat Technology ensures continuous device health monitoring and simplified, traceable verification.
Rugged & Hygienic: Stainless steel sensor housing (3-A, EHEDG) and optional IP69 protection for intensive high-pressure cleaning.
Advanced Connectivity: Supports modern industrial networks like PROFINET, EtherNet/IP, and Modbus RS485 for seamless Industry 4.0 integration.
Q1: What makes the Promag H 100 different from other Proline meters?
A: The H 100 is designed for ultra-compact installations. It provides full multivariable measurement (flow, temperature, and conductivity) on the smallest possible footprint, making it the perfect choice for modular skid-mounted systems.
Q2: Do I need special software to configure the Promag H 100?
A: No. It features an integrated web server. You can perform local operation, configuration, and diagnostics via any standard web browser using a simple laptop connection, saving time and hardware costs.
Q3: Is the Promag H 100 durable enough for high-pressure cleaning?
A: Yes. While it offers standard IP66/67 protection, an IP69 (Type 6P enclosure) option is available. This ensures the device remains fully operational even under intensive high-pressure washdown in hygienic environments.
Q4: How does it support Industry 4.0 integration?
A: The Promag H 100 supports a wide range of modern digital protocols including PROFINET, EtherNet/IP, Modbus RS485, and HART, allowing for seamless data exchange with PLC systems and cloud-based monitoring.
