Discover the E+H Promag E 100, the ideal economical flowmeter for the chemical and process industry. Features a space-saving transmitter, PTFE liner, and Heartbeat Technology. Accuracy up to ±0.2%.

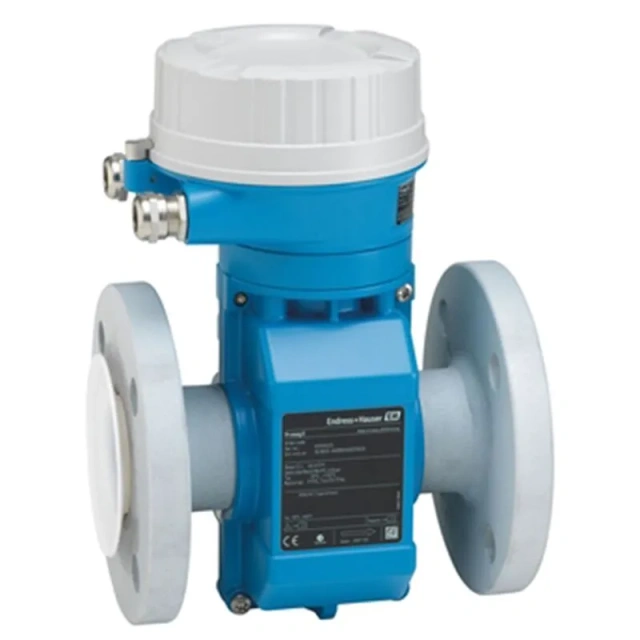

The Endress+Hauser Proline Promag E 100 is the preferred specialist for economical flow measurement in basic chemical and process applications. It offers a unique combination: a robust sensor (up to DN 600) and an ultra-compact transmitter that provides full functionality on the smallest footprint. It is the perfect solution for modular plant skids and integrated process environments.
| Category | Specification Details |
|---|---|
| Measuring Principle | Electromagnetic Flow Measurement (EMF) |
| Max. Measured Error | Volume flow (Standard): ±0.5 % o.r. ± 1 mm/s Volume flow (Option): ±0.2 % o.r. ± 2 mm/s |
| Measuring Range | 4 dm³/min to 9600 m³/h (1 to 44,000 gal/min) |
| Nominal Diameter Range | DN 15 to 600 (½ to 24") |
| Wetted Materials | Liner: PTFE Electrodes: Stainless Steel (1.4435/316L), Alloy C22, Tantalum |
| Process Temperature | –10 to +110 °C (+14 to +230 °F) |
| Max. Process Pressure | PN 40, Class 150, JIS 20K |
| Transmitter Housing | Ultra-compact, AlSi10Mg (coated aluminum) or Stainless Steel |
| Ingress Protection | IP67 (Type 4X enclosure) |
| Communication | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Integrated Diagnostics | Heartbeat Technology™ (Internal verification & monitoring) |
| Local Operation | Integrated Web Server (via standard web browser) |
Space-Saving Design: Its ultra-compact housing allows for high-density installation in compact plant environments.
Integrated Web Server: No additional software or hardware is needed for commissioning; simply use any standard web browser.
Traceable Reliability: Integrated Heartbeat Technology ensures continuous device health monitoring and traceable verification according to ISO 9001.
Versatile Range: Covering nominal diameters from DN 15 to 600, it handles flow rates up to 9600 m³/h with ease.
Chemical Compatibility: The durable PTFE liner and electrode options like Tantalum and Alloy C22 provide excellent resistance for standard chemical processes.
Q1: What are the primary applications for the Promag E 100?
A: The Promag E 100 is an economical specialist designed for basic applications in the chemical and process industries. Its PTFE liner provides excellent resistance for standard chemical fluids, and it supports diameters up to DN 600 (24").
Q2: How does the ultra-compact transmitter benefit installation?
A: The Proline 100 transmitter offers full functionality on a minimal footprint. This is ideal for modular plant skids or tight spaces where traditional larger transmitters won't fit, without compromising on measurement accuracy.
Q3: Does the Promag E 100 support remote diagnostics?
A: Yes. It includes an integrated web server, allowing maintenance teams to configure the device and perform diagnostics via any standard web browser. No specialized software or handheld terminals are required.
Q4: Can this flowmeter be verified without stopping the process?
A: Absolutely. With Heartbeat Technology™, the device performs internal self-diagnostics and provides traceable verification reports according to ISO 9001, significantly reducing the need for manual calibration and downtime.
