Discover the E+H Promag D 10. A highly cost-effective wafer flowmeter for water applications. Features space-saving design, integrated ground disks, and Bluetooth operation via SmartBlue App.

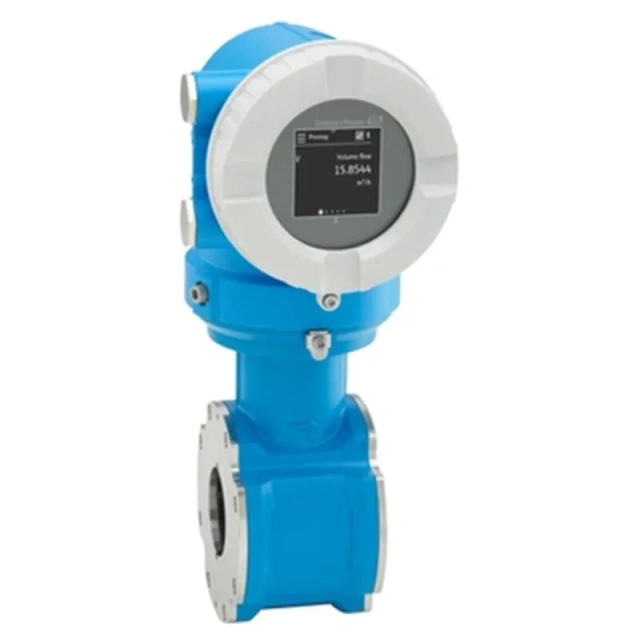

The Endress+Hauser Proline Promag D 10 is the ultimate economical specialist for basic water applications. Designed as a compact wafer (flangeless) device, it excels in installations with limited space. It is specifically optimized for plastic pipe systems, featuring integrated stainless steel ground disks to ensure accurate measurement without the need for additional grounding hardware.
Accuracy: ±0.5 % o.r. ± 1 mm/s (Standard).
Nominal Diameter: DN 25 to 100 (1 to 4″).
Liner Material: Polyamide (0 to +60°C / +32 to +140°F).
Process Pressure: PN 16, Class 150, JIS 10K.
Operation: 2.4" Touch screen or Wireless via SmartBlue App (Bluetooth).
| Category | Specification Details |
|---|---|
| Measuring Principle | Electromagnetic Flow Measurement |
| Design | Wafer (Flangeless) with short face-to-face length |
| Nominal Diameter | DN 25 to 100 (1 to 4") |
| Liner Material | Polyamide (0 to +60°C / +32 to +140°F) |
| Grounding Solution | Integrated stainless steel ground disks (Optimized for plastic pipes) |
| Accuracy | ±0.5 % o.r. ± 1 mm/s |
| Operation | LCD Touch Screen or Bluetooth® wireless via SmartBlue App |
| Diagnostics | Heartbeat Technology™ (Compliance with ISO 9001:2015) |
| Communication | HART, Modbus RS485 |
Q1: Why is the Promag D 10 ideal for plastic pipe installations?
A: Unlike standard flowmeters, the Promag D 10 features integrated stainless steel ground disks. This eliminates the need for expensive additional grounding rings when installing in non-conductive plastic piping, ensuring stable and accurate measurements.
Q2: What are the benefits of the Wafer (flangeless) design?
A: The wafer design offers an ultra-short face-to-face length and significantly lower weight compared to flanged meters. This makes it perfect for compact water treatment skids and installations where space is severely limited.
Q3: How do I configure the device if it's installed in a hard-to-reach area?
A: The Promag D 10 supports Bluetooth® connectivity. Using the Endress+Hauser SmartBlue App on your mobile device, you can perform wireless commissioning, parameterization, and health checks from up to 10 meters away.
Q4: Is the Promag D 10 suitable for drinking water?
A: Yes, it is designed for basic water applications and comes with international drinking water approvals. The Polyamide liner is safe and durable for temperatures up to +60°C (+140°F).
