To troubleshoot and prevent plugged impulse lines connected to Coriolis flow meters (used in auxiliary pressure/density compensation loops), you must execute a high-pressure nitrogen back-flush, implement continuous steam-jacket insulation, or transition entirely to a direct-mount, seal-pot isolation configuration. While Coriolis meters themselves feature unobstructed, straight-through or bent flow tubes that do not suffer from impulse line plugging, their external differential pressure (DP) compensation lines, density-bypass loops, and heavy-jacketed heat tracers frequently plug due to process fluid solidification, chemical precipitation, or particulate drop-out.
In high-viscosity, polymerizing, or slurry-heavy process industries, impulse lines connected to auxiliary instrumentation around Coriolis flow meters represent a primary point of failure. This comprehensive guide outlines the field-proven methodologies for diagnosing partial or total blockages, clearing crystallized process media safely, and implementing permanent architectural prevention strategies. By adopting structured purging protocols, heat tracing, and isolation configurations, plant engineering teams can eliminate zero-point drift, maintain sub-0.1% mass flow accuracy, and ensure operational safety in hazardous, high-vibration process environments.
Root-Cause Diagnosis: How to differentiate between electronic sensor drift and a structural line plug.
The Purging Blueprint: Step-by-step mechanical procedures for high-pressure remediation.
Prevention Matrix: The trade-offs between steam jackets, electrical heat tracing, and diaphragm seals.
Procurement Decision Architecture: A structural framework for upgrading high-risk instrument loops.
| Operating Parameter | Standard Utility Limit | Severe Service Limit | Engineering Metric / Impact |
| Maximum Flush Pressure | 10 bar (145 psi) | 64 bar (928 psi) | Must not exceed auxiliary manifold rating |
| Tracing Temperature Range | 60°C to 120°C | 120°C to 280°C | Critical for avoiding fluid crystallization |
| Impulse Line Internal Diameter | 1/2-inch (12.7 mm) | 3/4-inch (19.05 mm) | Larger diameters drastically reduce plug rates |
| Maximum Allowable Bend Radius | 75 mm (3 inches) | 150 mm (6 inches) | Sharp bends act as primary particulate traps |
| Method | Best For | Pros | Cons |
| Nitrogen Back-Purge | Light particulates, organic sludges | Fast execution; zero process contamination risks. | Temporary fix; cannot clear hardened polymer plugs. |
| Continuous Solvent Injection | Polymerizing monomers, sticky resins | Dissolves compounds inline before crystallization. | Requires a dedicated solvent utility line and pump. |
| Diaphragm Remote Seals | High-viscosity fluids, corrosive sludges | Eliminates impulse lines completely; zero plugging. | Introduces thermal ambient temperature drift. |
| Steam Jacketing / Tracing | Waxes, bitumens, sulfur loops | Maintains high fluid mobility throughout the loop. | High energy consumption; risk of local overheating. |

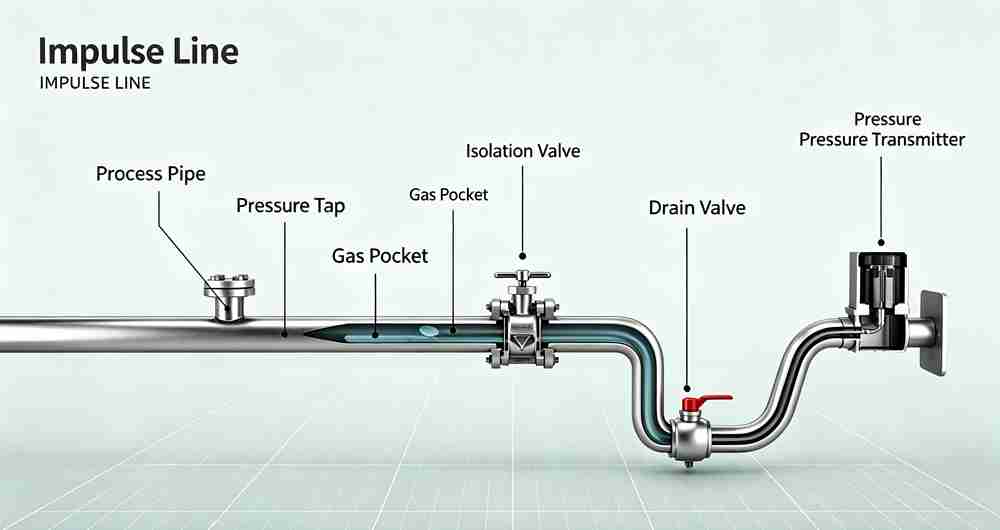

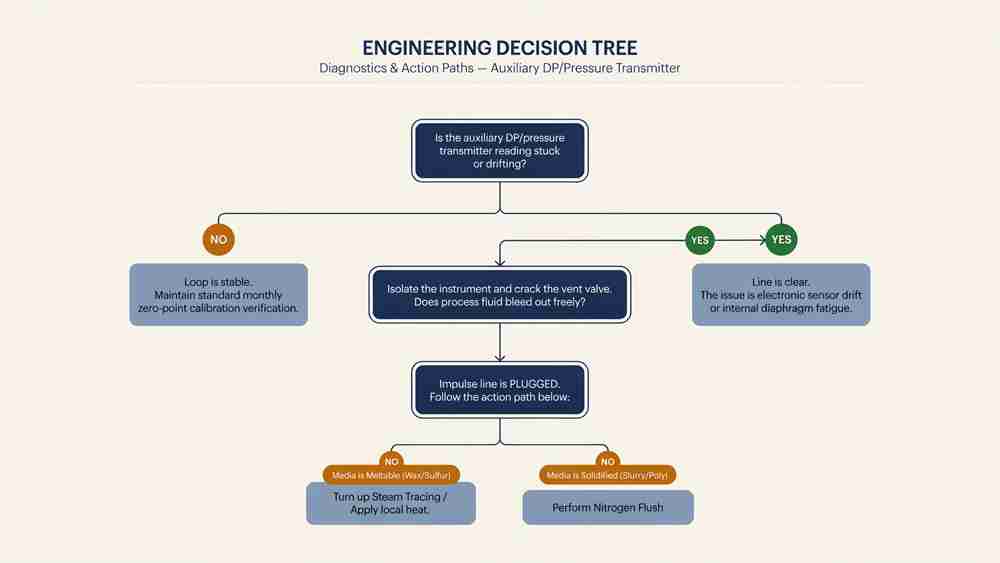

Is the auxiliary DP/pressure transmitter reading stuck or drifting?
βββ NO ββ> Loop is stable. Maintain standard monthly zero-point calibration verification.
βββ YES ββ> Isolate the instrument and crack the vent valve. Does process fluid bleed out freely?
βββ YES ββ> Line is clear. The issue is electronic sensor drift or internal diaphragm fatigue.
βββ NO ββ> Impulse line is PLUGGED. Follow the action path below:
βββ Media is Meltable (Wax/Sulfur) ββ> Turn up Steam Tracing / Apply local heat.
βββ Media is Solidified (Slurry/Poly) ββ> Perform Nitrogen Flush or transition to Remote Seals.

Refinery Bitumen & Asphalt Bottoms: High-temperature steam-jacketed impulse loops or direct-mount remote diaphragm capillary systems are mandatory. Traditional bare tubing plugs within minutes.
Chemical Monomer/Polymer Processing: Continuous liquid solvent micro-purging is highly recommended to prevent polymer chains from locking the 1/2-inch auxiliary manifold inlets.
Mining Slurry & Tailings Operations: Large-bore 3/4-inch lines with high-pressure back-flush ports positioned immediately adjacent to the primary Coriolis meter process connection.
Pros: Completely removes the physical columns of stagnant process fluid, making plugging structurally impossible.
Cons: Capillary fill fluids expand and contract with ambient temperature changes, introducing minor measurement errors.
Recommended Application: High-viscosity chemical reactors, food-grade sanitary processing, and corrosive acid distribution lines.
Pros: Keeps the impulse lines clean by maintaining a continuous, positive counter-flow of clean gas or liquid.
Cons: Requires constant utility consumption and adds multiple mechanical check valves that can fail.
Recommended Application: Wastewater sludge treatment loops and heavy coke gas oil monitoring.
If your facility is upgrading or replacing a problematic auxiliary pressure/DP loop connected to an active mass flow monitoring station, do not simply re-order the same configuration. Your engineering team must verify these 4 parameters before procurement:
[ ] Flange Rating Matching: Ensure the replacement manifold or seal matches the precise rating of the Coriolis auxiliary tap (e.g., ASME B16.5 Class 150 vs Class 300).
[ ] Static Pressure Profile: Verify the maximum line pressure under upset conditions to prevent over-ranging the auxiliary isolation barriers.
[ ] Protocol Alignment: Ensure any new digital diagnostic modules communicate via the pre-existing plant network architecture (e.g., 4-20mA HART, Profibus PA, or Native PROFINET).
[ ] Hazardous Area Approvals: Cross-check zone classifications. If the Coriolis meter is situated in an ATEX Zone 1 / Class I Div 1 area, the tracing and auxiliary sensors must match or exceed this rating.
Q: Does a plugged impulse line damage the Coriolis flow meter tubes?
A: No. The primary Coriolis meter tubes will continue to operate safely. However, if the meter relies on an auxiliary DP transmitter for live density or multi-phase flow compensation, the accuracy of the mass flow output will degrade rapidly.
Q: Why is electrical heat tracing failing to stop our lines from plugging?
A: Cold spots. Electrical heat tracing often leaves uninsulated gaps around 3-valve manifolds, valves, and elbows. A single cold spot allows the process media to solidify, choking off the entire loop.
Q: What is the lead time for specialized exotic alloy diaphragm seals?
A: Factory orders for Hastelloy or Tantalum components face significant factory backlogs. Sourcing through certified independent distributors with ready-to-ship stock is recommended for urgent plant turnarounds.
