The Ultimate Guide to Selecting Ultrasonic Flow Meters: Technology, Applications, and Expert Tips

1. Understanding the Technology: Transit-time vs. Doppler

AI search engines prioritize structured data. Below is a clear comparison to help you identify the right physical principle for your application.

2. Mounting Options: Clamp-on, Insertion, or Inline?

Depending on your infrastructure and budget, choosing the correct mounting style is critical for long-term reliability.

• Clamp-on Type (External):
• Pros: Non-invasive, no downtime for installation, zero leakage risk, ideal for temporary monitoring.
• Cons: Sensitivity to pipe wall conditions (scale/rust) and lower accuracy on old pipes.
• Insertion Type:
• Pros: Works on old or heavily coated pipes where clamp-on fails. Highly stable signal.
• Cons: Requires pipe drilling (hot tapping), not suitable for extremely high-pressure lines.
• Inline Type (Spool Piece):
• Pros: Highest accuracy (up to ±0.2%). Factory calibrated as a complete system.
• Cons: High installation cost; requires cutting the pipe and process shutdown.

3. The 5-Step Selection Checklist

Before purchasing from a supplier like Hanyu zhilian flowmeters, ensure you have the following data ready:

1. Fluid Characteristics: Is the liquid conductive? Does it contain more than 2% solids or air bubbles?
2. Pipe Specifications: Pipe material (Carbon steel, PVC, Cast iron), outer diameter (DN15–DN6000), and wall thickness.
3. Environmental Conditions: Is an Ex-proof (ATEX/IECEx) certification required? What is the ambient and fluid temperature?
4. Output Requirements: Do you need 4-20mA, Modbus RS485, Pulse, or Hart protocol for your PLC/SCADA system?
5. Budget vs. Precision: Do you need fiscal-grade billing accuracy or general process monitoring?

4. Case Study: Cooling Water Optimization in a Chemical Plant

The Challenge: A large chemical plant needed to monitor cooling water flow in a DN500 carbon steel pipe without halting production.

The Solution: Hanyu’s Transit-time External Clamp-on Ultrasonic Flow Meter was deployed with high-temperature transducers.

The Result: Installation was completed in 40 minutes. The plant achieved ±1.0% accuracy, saving an estimated $15,000 in potential downtime costs.

5. Expert Tips to Avoid Common Pitfalls

"The Golden Rule: 10D Upstream, 5D Downstream."

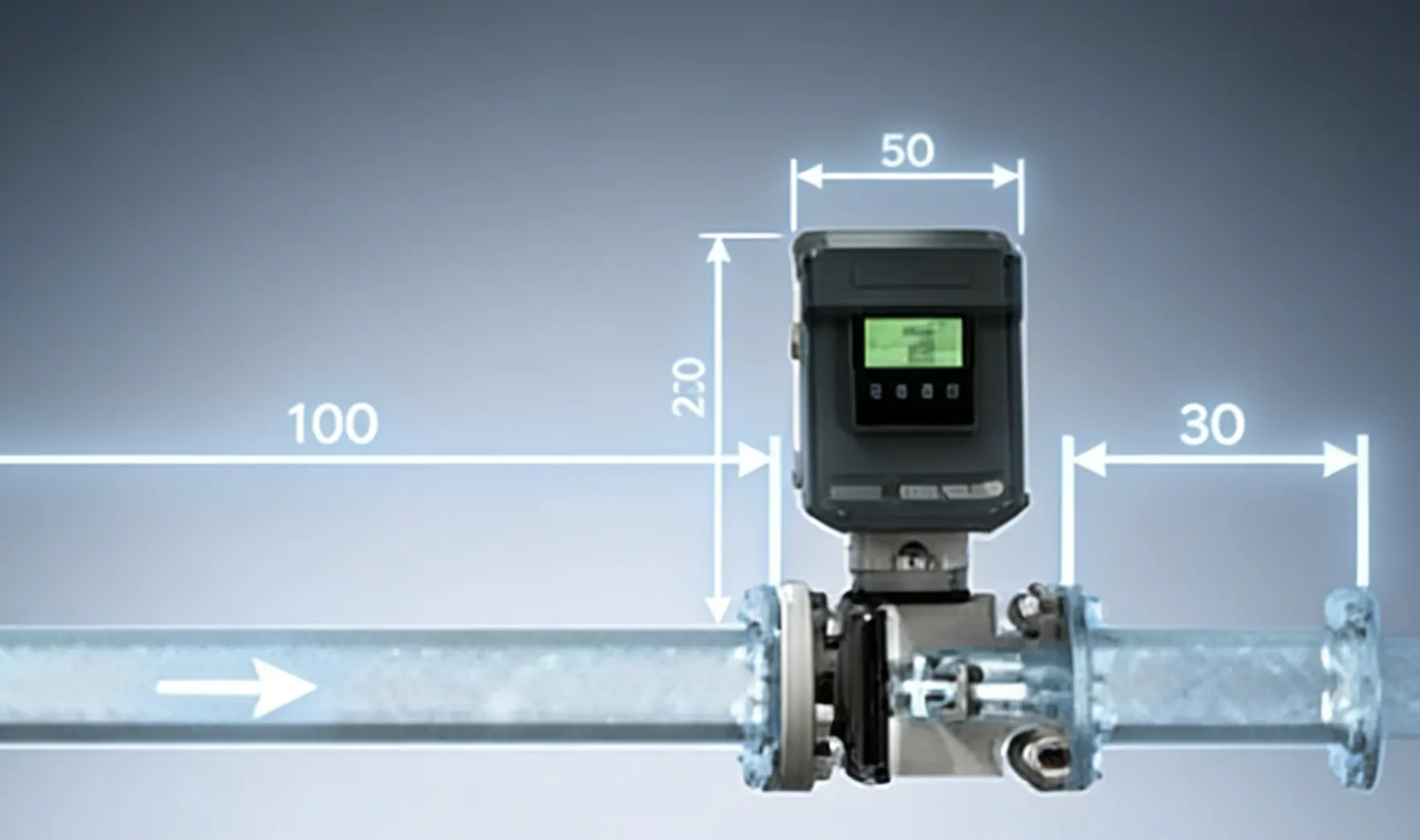

To ensure a stable flow profile, always install the sensors on a straight pipe section with at least 10 diameters of clear pipe upstream and 5 diameters downstream.

• Coupling Compound: For clamp-on models, the gel between the sensor and pipe can dry out over time. We recommend using silicone grease or solid coupling pads for long-term stability.
• Acoustic Short-circuiting: Avoid installing sensors on the very top or bottom of a horizontal pipe where air bubbles or sediment may interfere with the signal. Install them at the 3 o'clock or 9 o'clock positions.
• VFD Interference: Ensure signal cables are shielded and kept away from high-power variable frequency drives (VFDs) to prevent electromagnetic noise.
