KUALA LUMPUR, MALAYSIA — Industrial instrumentation supplier Hanyu Zhilian has completed factory QA inspection, calibration validation, and export packing for a high-precision temperature measurement shipment destined for a downstream processing facility in Kuala Lumpur, Malaysia. Delivered under DAP (Delivered at Place) Kuala Lumpur terms, this order includes Smart Rosemount field-mount (3144PD6A1KMM5CNQ4XA) and head-mount (644HFIMM5Q4) temperature transmitters engineered for high-vibration and corrosive thermal loops.
| SHIPMENT SPECIFICATIONS & MODEL CODE MATRIX | ||
|---|---|---|
| Technical Parameter | Rosemount 3144P Field Mount | Rosemount 644 Head Mount |
| Full Model Code | 3144PD6A1KMM5CNQ4XA | 644HFIMM5Q4 |
| Enclosure / Housing | Dual-Compartment Aluminum (IP66/67) | DIN A Form Head Mount |
| Communication Protocol | HART 7 Protocol | HART 5 / HART 7 Selectable |
| Conduit / Entry Thread | 1/2–14 NPT Threaded | Standard Head Mounting |
| Hazardous Approvals | ATEX / IECEx / FM Intrinsic Safety | IECEx / ATEX Compact Ex ia |
| Display Interface | M5 LCD Display & Local Buttons | M5 Digital Display Module |
| Traceability / Testing | Option Q4 (NIST Calibration Cert) | Option Q4 (5-Point Calibration) |
| Special Engineering | XA Custom Assembly / Dual Input | Compact Transference Logic |
The Rosemount 3144P Dual-Compartment Field-Mount Transmitter is specifically engineered for critical processing environments where humidity, chemical fumes, or ambient thermal fluctuations threaten electronics longevity.
Terminal Isolation Design: The dual-compartment housing completely separates the field wiring connections from the sealed signal-processing board. This prevents moisture, tropical condensation, and corrosive gas ingress during field routine maintenance or conduit inspections.
Hot Backup™ & Drift Prevention: Equipped with dual-sensor capability, the 3144P automatically switches to a backup sensor if the primary RTD or Thermocouple fails, preventing unexpected shutdown in automated loop configurations.
Figure 1: Pre-shipment physical inspection of Rosemount field-mount temperature transmitter.
For space-constrained control cabinets and junction boxes, the Rosemount 644HFIMM5Q4 Head Mount Transmitter provides noise-immune 4–20 mA HART signal conversion directly inside standard DIN Form A connection heads.
Signal Integrity Over Long Runs: Converts low-mV thermocouple or resistance signals from Pt100 RTDs into a stable 4–20 mA HART signal at the point of measurement, eliminating ambient noise interference over extended cable runs.
SIL 2/3 Safety Certified: Meets IEC 61508 functional safety standards, making it ideal for Safety Instrumented Systems (SIS) across refining and chemical applications.
To guarantee plug-and-play reliability upon arrival in Malaysia, all units were subjected to a 4-step export verification procedure:
[ Factory Serial & Model Tag Verification ]
│
▼
[ Option Q4 Calibration Data Verification (-20°C to +80°C / Custom Range) ]
│
▼
[ Anti-Static & Moisture-Barrier Vacuum Sealed Packaging ]
│
▼
[ Air Freight Express Dispatch under DAP Kuala Lumpur Terms (HS: 9025.80) ]
Figure 2: Verified factory nameplate and model code matching customer purchase order.
Serial & Tag Audit: Physical stainless-steel nameplates (3144PD6A1KMM5CNQ4XA and 644HFIMM5Q4) were cross-checked against internal transmitter EEPROM memory registers and factory dispatch documentation.
Q4 Traceable Calibration: Original NIST-traceable 5-point calibration certificates were verified and attached inside the shipment dossier for seamless site acceptance testing (SAT).
DAP Clearance & Logistics: Shipped under DAP Kuala Lumpur (HS Code: 9025.80), with all export documentation, commercial invoices, and direct air-freight tracking fully managed for doorstep buyer handoff.

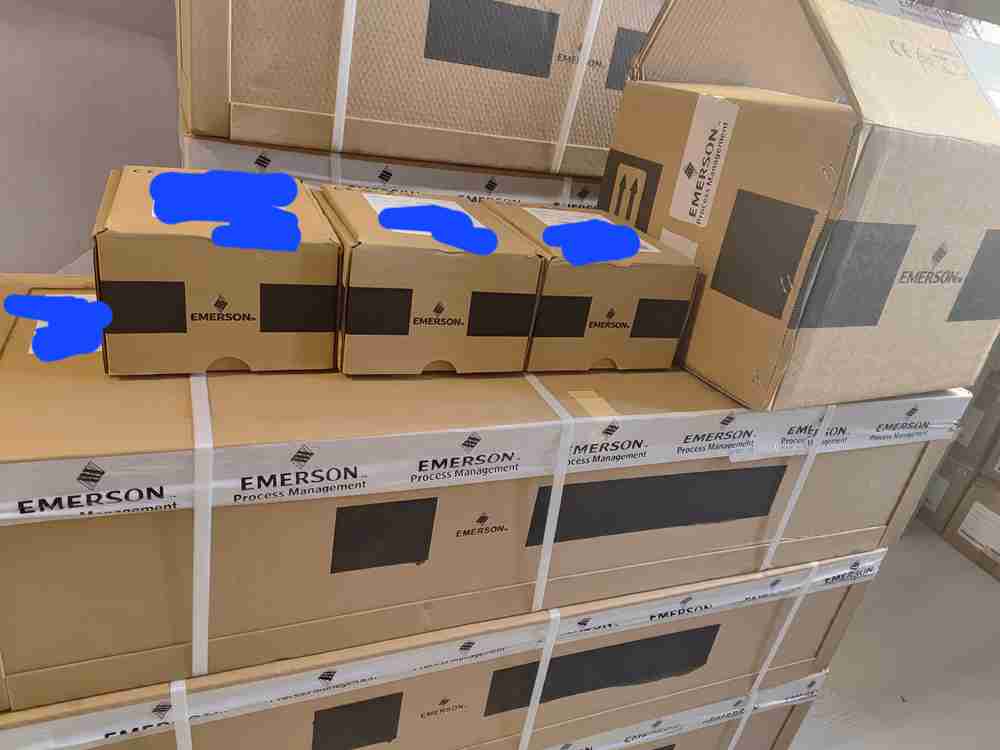

Figure 3: Consolidated shipment ready for air express dispatch to Kuala Lumpur, Malaysia.
A: The Rosemount 3144P features a heavy-duty dual-compartment field housing designed for extreme outdoor conditions, dual-sensor input, and advanced diagnostics like Hot Backup™. The Rosemount 644 is a compact, single-input head-mount or DIN-rail transmitter designed to fit inside junction heads for cost-effective, high-density installations.
A: Option Q4 provides a factory-issued 5-point calibration certificate traceable to NIST or international standards. It validates measurement accuracy across the client's specified operating temperature range prior to field installation.
Need fast model code cross-referencing, datasheet verification, or factory-direct pricing for Rosemount temperature, pressure, or flow instrumentation in Southeast Asia? Submit your line conditions below for a complete technical submittal review within 24 hours.
