Selecting an industrial flow meter is rarely about buying the highest nominal accuracy printed on a vendor datasheet. In live process plants, incorrect flow meter selection leads to reading drift, rapid sensor degradation, unexpected pressure drops, and costly commissioning delays that blow project budgets.
When an engineer asks, "Which flow meter should I use?", the answer is never universal. A Coriolis mass flow meter offers unmatched precision for high-value chemical dosing, yet an electromagnetic meter provides vastly superior lifecycle ROI for abrasive mining slurry or cooling water.
This comprehensive industrial flow meter selection guide breaks down measurement technologies, compares real-world trade-offs, answers critical engineering FAQs, and helps EPC contractors and plant operators avoid selection traps during procurement.

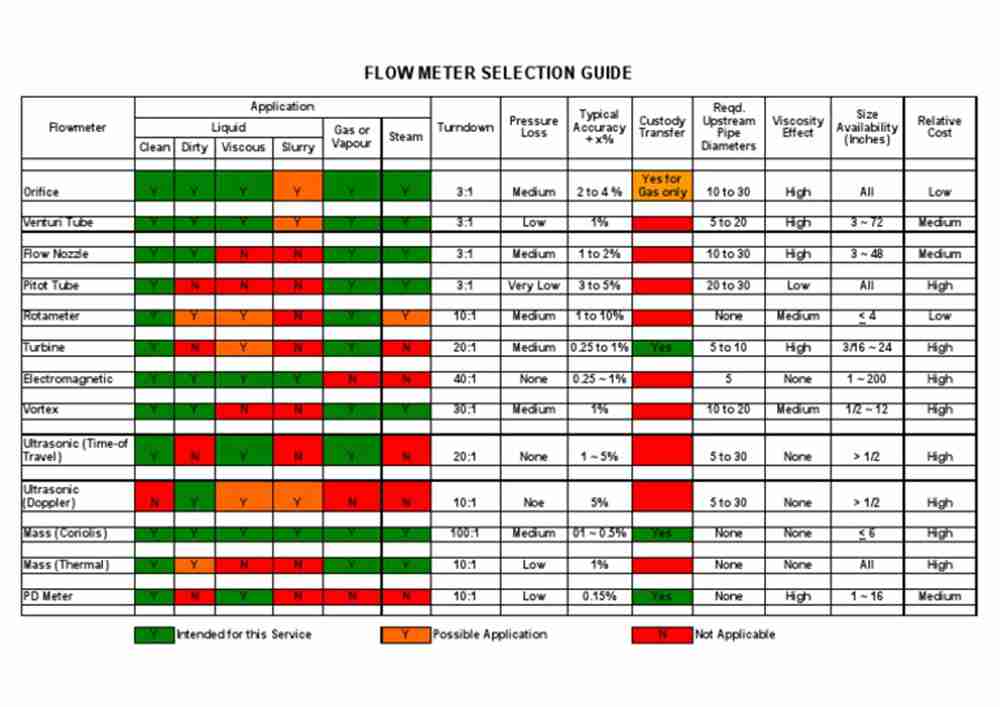

Figure 2: Engineering flow meter selection matrix mapping measurement technologies against fluid dynamics.
If you are facing a tight project deadline, use this engineering quick-reference table to align your process medium with the primary recommended measurement technology:
| Process Condition / Medium | Recommended Technology | Primary Selection Reason |
|---|---|---|
| Mass flow, density & multi-variable | Coriolis Mass Flow Meter | Direct mass measurement independent of fluid density changes |
| Conductive liquids, water & slurry | Electromagnetic Flow Meter | Zero pressure loss, full-bore design, no moving mechanical parts |
| Saturated/Superheated steam, gases | Vortex Flow Meter | High-temperature tolerance, robust shedder bar design |
| Large pipe diameter & non-invasive | Ultrasonic Flow Meter (Clamp-on) | Hot-tappings avoiding shutdown, versatile field verification |
| Clean gas mass flow (low pressure) | Thermal Mass Flow Meter | High sensitivity, direct standard volumetric / mass output |
| Legacy steam & high DP infrastructure | Differential Pressure (DP) Meter | Established industry standard for high-temperature/pressure orifice loops |
Engineering Rule of Thumb: There is no single "best" industrial flow meter. The best choice is the technology whose physical principle natively matches your fluid behavior, piping layout, and maintenance budget.
Coriolis meters operate on the inertial effect of a vibrating tube. They are selected when volumetric flow rates are insufficient due to fluctuating process temperatures and pressures that alter fluid density.
π Related Resource: Explore our High-Precision Coriolis Flow Meter Collection
Magmeters operate on Faraday’s Law of Electromagnetic Induction. Because the sensor tube is entirely straight and unobstructed, it introduces zero head loss to the pumping line.
π Related Resource: Explore our Industrial Electromagnetic Flow Meter Collection
Vortex meters place a shedder bar in the flow stream, creating Von Kármán vortices whose frequency is proportional to flow velocity.
π Related Resource: Explore our Industrial Vortex Flow Meter Collection
Ultrasonic meters use transit-time or Doppler acoustic pulses to evaluate flow velocities across pipe diameters.
Inline vs. Clamp-on Selection Matrix:
| Feature | Inline Ultrasonic Flow Meter | Clamp-On Ultrasonic Flow Meter |
|---|---|---|
| Piping Modification | Required (flanged/welded spool) | None (strapped to outer pipe wall) |
| Process Downtime | Required during installation | Zero process interruption |
| Accuracy Level | High (±0.5%) | Moderate (±1.0% to 2.0%) |
| Acoustic Coupling | Factory pre-calibrated | Requires annual coupling gel inspection |
π Related Resource: Explore our Clamp-On & Inline Ultrasonic Flow Meter Collection
Figure 4: Industrial design, appearance, and physical measuring principles of 8 primary flow technologies.
This matrix summarizes the key operating boundaries used by EPC instrument engineers during front-end engineering design (FEED):
| Flow Technology | Measurable Medium | Typical Accuracy | Straight Pipe Req. | Main Limitation |
|---|---|---|---|---|
| Coriolis | Liquids, Slurries, Gases | ±0.1% to 0.2% | 0 / 0 Dia | High initial capital cost |
| Electromagnetic | Conductive Liquids | ±0.2% to 0.5% | 5 / 3 Dia | Non-conductive fluids impossible |
| Vortex | Steam, Gases, Clean Liquids | ±0.75% to 1.0% | 15 / 5 Dia | Sensitive to pipe vibration |
| Ultrasonic | Clean or Dirty Liquids | ±0.5% to 2.0% | 10 / 5 Dia | Entrained gas causes attenuation |
| Thermal Mass | Clean Dry Gases | ±1.0% | 20 / 10 Dia | Wet gas droplets invalidate sensors |
Should my flow meter size always match my pipe size? Not necessarily. While electromagnetic meters usually match pipe diameter to avoid pressure drop, vortex and differential pressure meters are frequently sized smaller than the process line (using reducers) to ensure fluid velocities stay comfortably within the optimal measuring envelope.
Turndown ratio (rangeability) is the ratio between the maximum and minimum flow rates a meter can measure accurately within its specified tolerance (e.g., 20:1 or 100:1). If your winter steam consumption drops to 5% of summer peak capacity, selecting a meter with a narrow 10:1 turndown ratio will cause massive measurement blind spots during off-peak operations.
In industrial practice, no single meter handles both interchangeably without recalibration or severe performance drops. Coriolis meters can measure dense gases and liquids, but require entirely different configuration parameters and sizing runs. Thermal mass meters only work on dry gases, while vortex meters require distinct calibration curves for liquid versus steam services.
Entrained air bubbles cause severe errors across technologies. In Coriolis meters, gas bubbles cause "decoupling" of the vibrating tubes, triggering drive gain alarms and freezing readings. In electromagnetic meters, gas bubbles are calculated as fluid volume, over-reading actual liquid delivered. Air eliminators should always be installed upstream of liquid metering runs.
