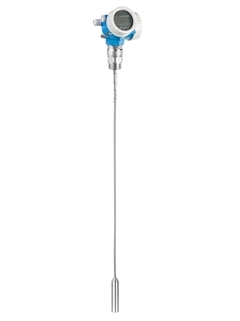

The Levelflex FMP57 sensor is suitable for measuring the level of solid bulk materials and meets high measurement requirements. It is an ideal choice for applications such as measuring in high storage bins, coal storage bins, or yards. The FMP57 features a cable-type probe that can extend up to 45 meters, making it suitable for measuring in high storage bins. The FMP57 is used for continuous level measurement of powders, granules, and other solid bulk materials. The measurement is unaffected by dust, feeding noise, temperature, and gaseous media.
Choose between rod-type or cable-type measurement.
· Process connections: start with 1½” threads or flanges.
· Temperature: –40 to +150°C (–40 to +302°F)
· Pressure: –1 to +16 bar (–14.5 to +232 psi)
· Maximum measurement range: rod-type – 4m (13ft), cable-type – 45m (148ft).
· Accuracy error: ±2 mm (0.08”)
· International explosion protection certification, SIL, ship classification certification, 5-point linear protocol.
advantage· Maintain reliable measurements even under variable conditions for measuring products or processes.
· The HistoROM integrated data storage unit provides quick and convenient debugging, maintenance, and diagnostics.
· Innovative multi-echo tracking technology, providing high reliability for measurement results.
· The hardware and software were developed in accordance with the IEC 61508 standard, achieving the SIL3 level.
· Heartbeat technology to enable efficient and secure factory operations throughout the entire lifecycle.
· Seamless integration with control or asset management systems, intuitive guided operation concept (on-site or through the control system).
· Certified by world-renowned authorities in SIL and WHG testing, saving you time and financial resources.
Parameter specifications.Measurement principle.
Waveguide radar.
Features/ApplicationsPremium-precision equipment with a maximum tensile force of 30kN.
Rod-type probes, cable-type probes.
Built-in data storage unit. Pre-calibrated at the factory for reliable measurements: suitable for use in dusty environments, narrow hoppers, and containers with built-in devices.
characteristic
Heartbeat Technology,
Bluetooth® commissioning,
Operation and maintenance SmartBlue App,
HistoROM,
RFID TAG for easy identification
Electrical & Communication
- Power/communication:
- 2-wire: HART®, PROFIBUS® PA, FOUNDATION™ Fieldbus
- 4-wire: HART®
- Certifications: ATEX, FM, CSA, CSA C/US, IECEx, TIIS, INMETRO, NEPSI, KC, EAC
- Safety: SIL 3 (per IEC 61508), EN 10204 3.1
- Marine approvals: GL, ABS, LR, BV, DNV
Options
- Remote version with 3 m (9 ft) cable
